Self-centering lathe chuck, cast iron, 3-jaw | 100 mm | Morse taper MK3 with bearing (DM-MW3-D100)
Availability:
brak towaru
Gross price:
$194.40
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$158.05
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_UCH_377_100_MS3
Description
Features and application:

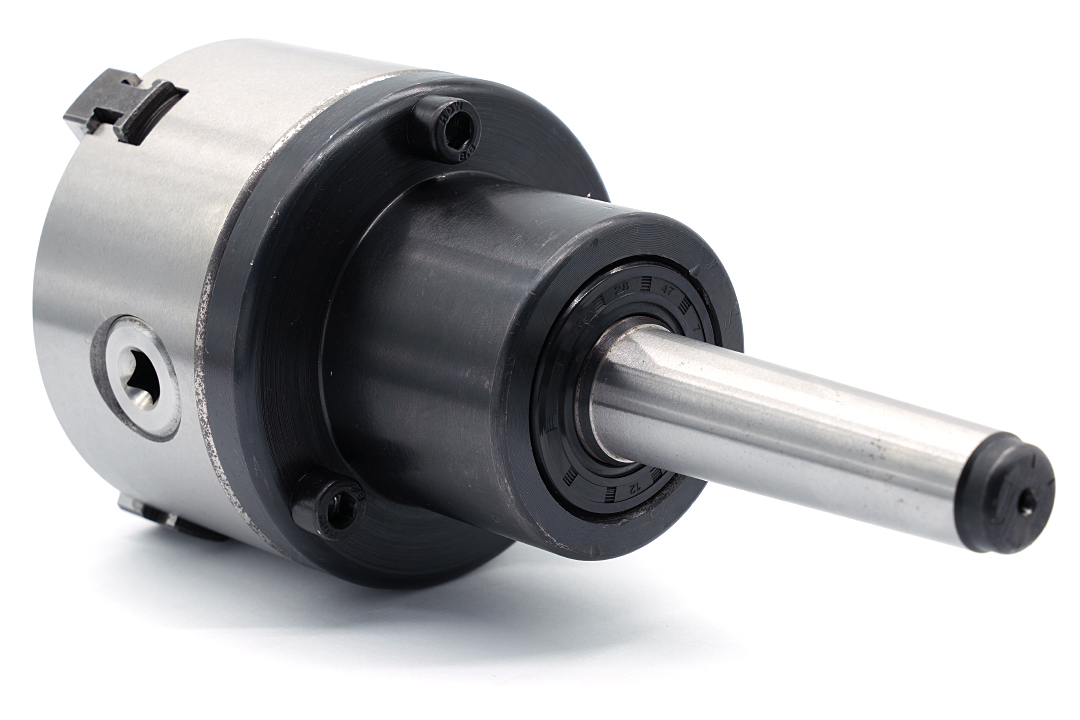

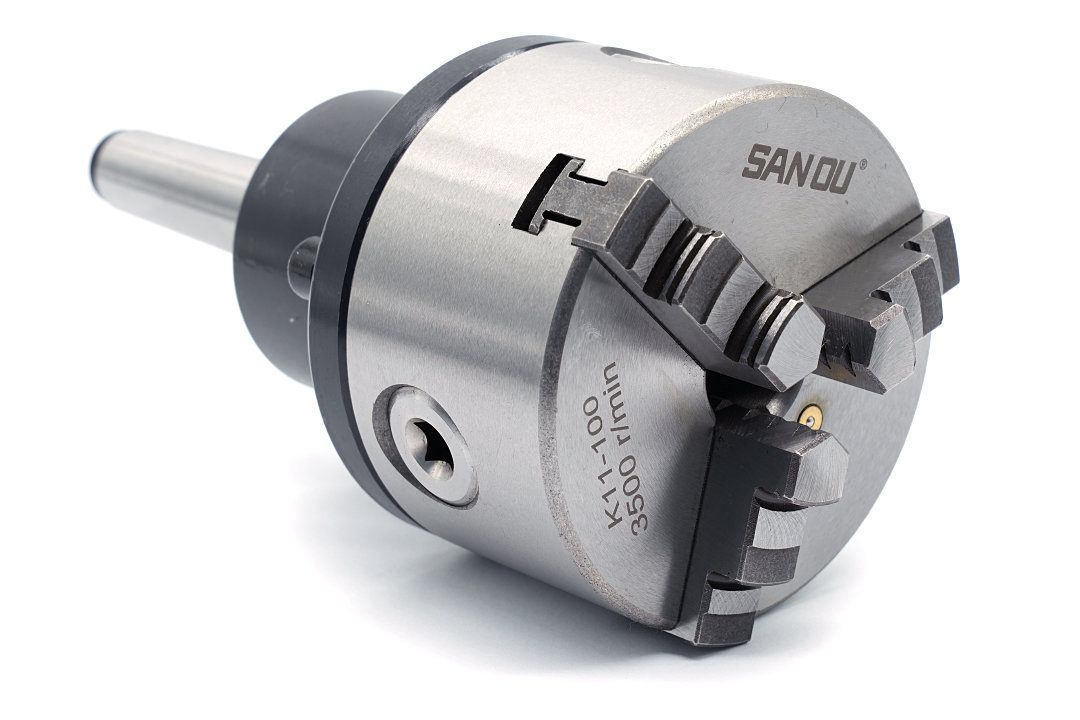

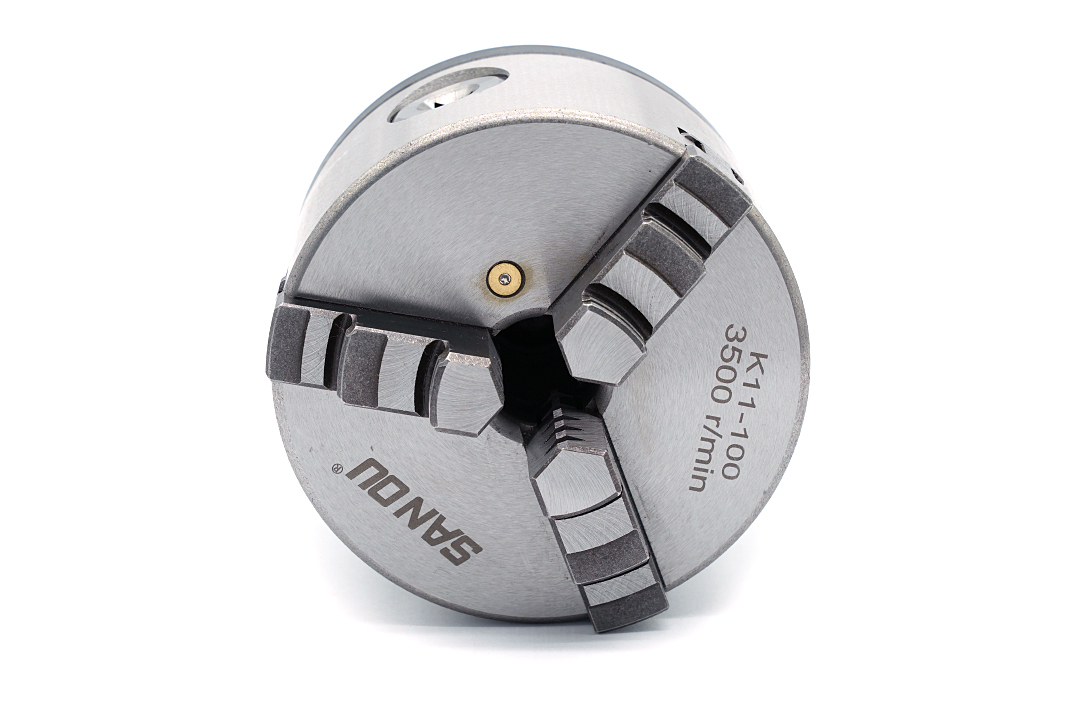

- 3-jaw lathe chuck, size 100 mm, mounted on a rotary plate with a Morse MK3 arbor.
- The set includes a set of external and internal jaws and a lathe chuck key.

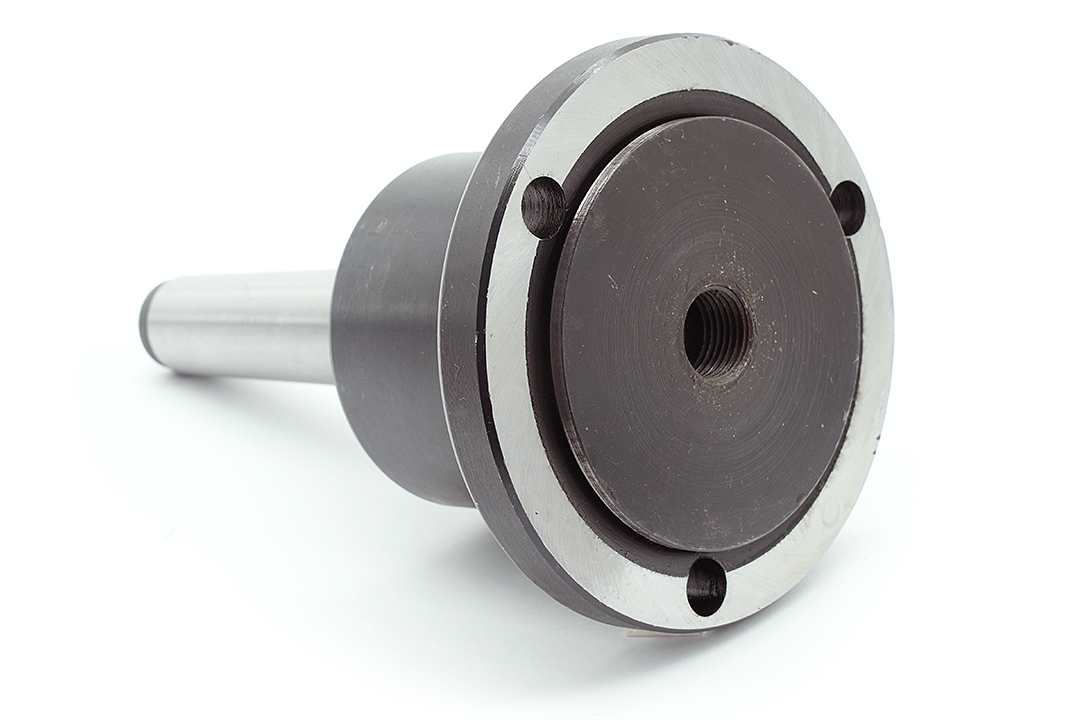

- The chuck is mounted with 3 screws from the body on the driving plate.
- Ball bearing design.
- The main body and the taper arbor are made of high-quality carbon steel and hardened to ensure high performance and stability.
- Used for lathe work with a maximum speed of 3500 rpm.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| D | 100 | mm |
| D1 | 72 | mm |
| D2 | 84 | mm |
| D3 | 22 | mm |
| H1 | 56 | mm |
| h | 4 | mm |
| z - d (number of screws) | 3 - M8 | |
| Max. RPM | 3500 | rpm |
| Weight | 4.1 | kg |
Equipment:
handle lathe
external solid jaws
internal solid jaws
wrench
Clamping range:
| Chuck size | Outer jaws | Inner jaws | |
| A - A1 | B - B1 | C - C1 | |
| 080 | 2 - 22 | 25 - 70 | 22 - 63 |
| 100 | 2 - 30 | 30 - 90 | 30 - 80 |
| 125 | 2.5 - 40 | 38 - 125 | 38 - 110 |
| 160 | 3 - 55 | 50 - 160 | 55 - 145 |
| 200 | 4 - 85 | 65 - 200 | 65 - 200 |
| 250 | 6 - 110 | 80 - 250 | 90 - 250 |
| 315 | 10 - 140 | 95 - 315 | 100 - 315 |
Accuracy:
|
Holder size |
Measurement scheme | ||||||
|
|
 |
 |
 |
||||
| a | b | a | b | a | b | ||
| 080, 100, 125, 160 | 0.040 | 0.040 | 0.060 L=50 | 0.075 | 0.040 | 0.075 | 0.040 |
| 200, 250 | 0.055 | 0.060 | 0.080 L=50-75 | 0.075 | 0.050 | 0.075 | 0.050 |
| 315 | 0.070 | 0.075 | 0.100 L=75 | 0.100 | 0.060 | 0.100 | 0.060 |
