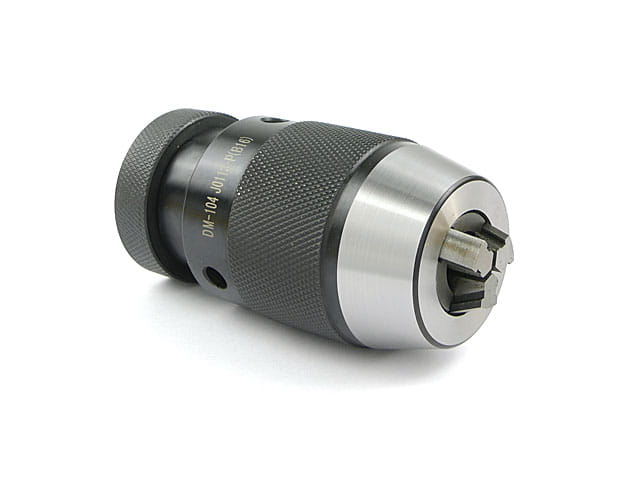

Self-tightening drill chuck B16 | clamping range 1 - 13 mm - DARMET J0113-P
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$36.60
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$29.76
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_UCH_J0113P_B16
Description
Information:
- Drill chuck with semi-automatic jaw clamping; rotate the body, the sleeve, to widen (loosen) or narrow (tighten) the jaws inside the chuck, which clamp the installed tool, usually drills.
- Mount the chuck on a shank with a B16 taper.
- The shank shown in photos is for illustrative purposes only and must be purchased separately.
- If tightening the jaws by hand is insufficient, a special key should be used, for which round holes are made.
- Once securely mounted on the shank, the drill chuck can only be removed using a puller, which we manufacture to order in our production department.
- Small size generates significantly less runout values compared to larger equivalents when clamping a drill of the same length and diameter.
- The gripping part of the sleeve is knurled to firmly hold and turn the tool even by bare hand.
- The hole for the mounting taper is ground for greater precision of contact with the shank.
- The tool is designed for workshop use in devices such as pillar drills or lathes.
Specification:
| Parameter | Value |
|---|---|
| Clamping range | 1 - 13 mm |
| Chuck taper | B16 |
| D | 50 mm |
| L | 103 mm |
| Runout | 0.12 mm |
| Weight | 1.10 kg |
