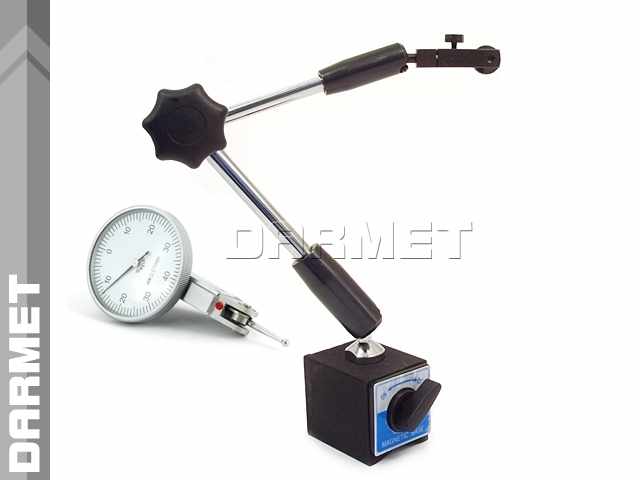

Set: LEVER INDICATOR (DIATEST) + ARTICULATED MAGNETIC STAND - DARMET (560-011 / 201)
Availability:
brak informacji
Gross price:
$90.16
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$73.30
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_201_560-011
Description

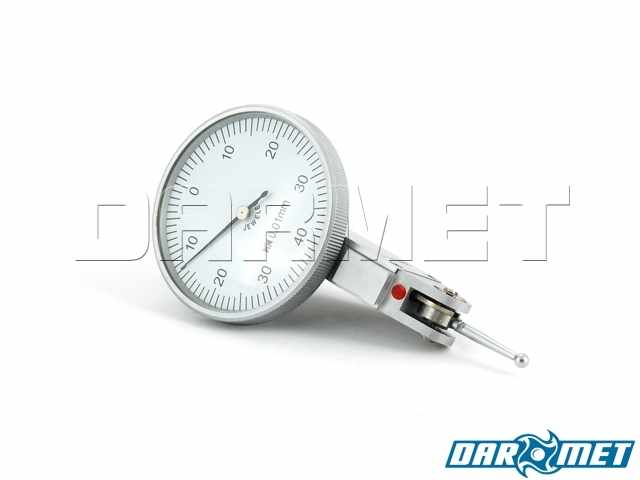

SENSOR:
Features and application:
- Lever-tilt dial gauge (diatest) allows measurement in both directions (+, -)
- Equipped with a rotating outer ring for zeroing
- Possibility of mounting the sensor in three positions: front, back, top
- Grip diameter 4 or 8 mm

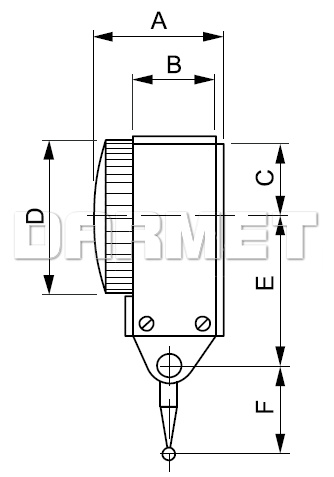

Technical data:
| Parameter | Value | Unit |
|
|---|---|---|---|
| Range | 0 - 0.8 | mm | |
| Mounting pin diameter | ø8h6, ø4h6 | mm | |
| Accuracy | 0.01 | mm | |
| A | 25 | mm | |
| B | 17.3 | mm | |
| C | 16.4 | mm | |
| D | ø39.2 | mm | |
| E | 38.7 | mm | |
| F | 21 | mm | |
| Measuring ball diameter | ø2 | mm | |
| Division scale | 0 - 40 -0 | mm | |
| Weight | 0.15 | kg |

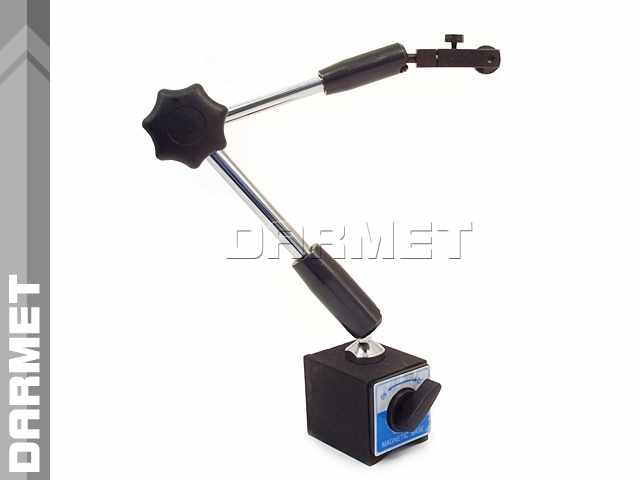

TRIPOD:
Features and application:
- Articulated magnetic stand with a mechanical clamp designed for dial gauges
- The mechanical clamp enables very high stiffness
- Ball joints enable positioning of the stand tip in all directions
Technical data:
| Parameter | Value | Unit |
|
|---|---|---|---|
| Base size (E x J x I) | 55 x 50 x 63 | mm | |
| Sensor holder diameter | 8 | mm | |
| H | 433 | mm | |
| G | 22 | mm | |
| A | 155 | mm | |
| B | 135 | mm | |
| C | 53 | mm | |
| D | 13 | mm | |
| F | 79 | mm | |
| Weight | 2.0 | kg |
