Set: WATERPROOF IMPACT DIAL INDICATOR + ARTICULATED MAGNETIC STAND - DARMET (539D-053 / 104)
Availability:
brak informacji
Gross price:
$66.83
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$54.33
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_104_539D-053
Description

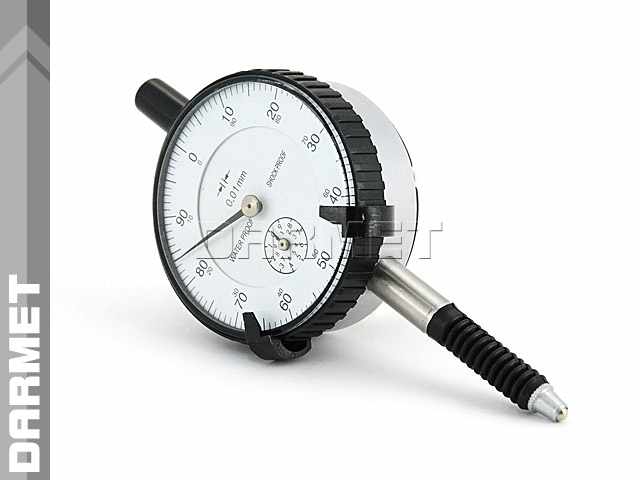

SENSOR:
Features and Applications:
- The shock-resistant and waterproof dial gauge has an internal construction primarily of stainless steel and copper, which helps prevent corrosion and provides excellent protection.
- Equipped with a rotating outer ring for zeroing made of plastic.
- It has a tolerance mark and a locking screw.
Technical Data:
| Parameter | Value | Unit. |
|
|---|---|---|---|
| Range | 0 - 10 | mm | |
| Shank diameter | ø8h6 | mm | |
| Accuracy | 0.01 | mm | |
| A | 46 | mm | |
| B | 17.5 | mm | |
| C | 8.2 | mm | |
| D | ø55.5 | mm | |
| Scale division | 0 - 50 - 0 | mm | |
| Weight | 0.3 | kg |

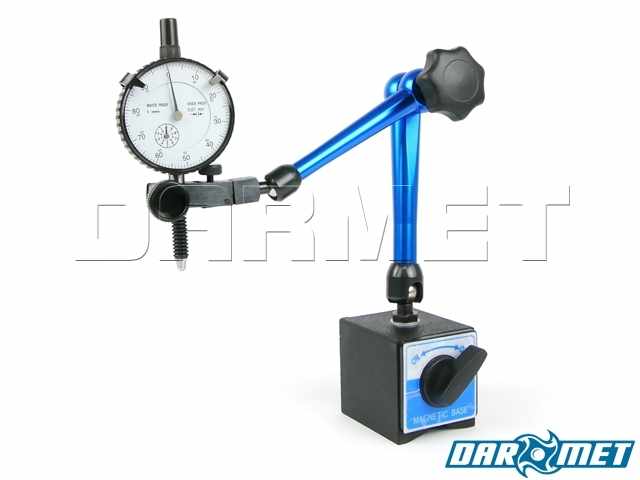

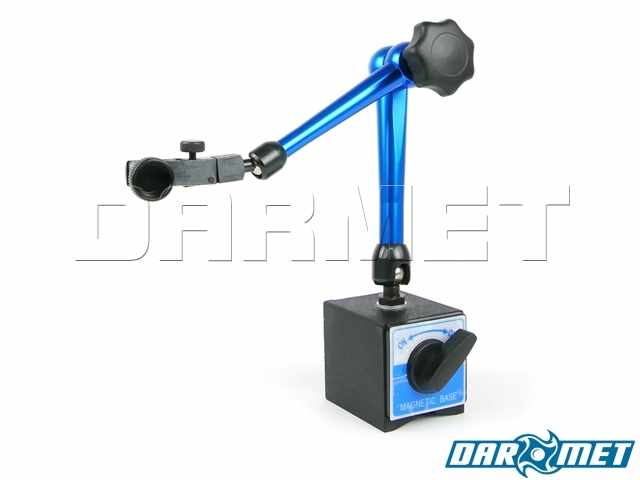

TRIPOD:
Features and application:
- Articulated magnetic stand with mechanical clamp designed for dial gauges
- The mechanical clamp enables very high stiffness
- Ball joints enable positioning of the stand tip in all directions
Technical data:
| Parameter | Value | Unit |
|
|---|---|---|---|
| Base size (E x J x I) | 55 x 50 x 63 | mm | |
| Sensor holder diameter | 8 | mm | |
| H | 351 | mm | |
| G | 20 | mm | |
| A | 112 | mm | |
| B | 100 | mm | |
| C | 50 | mm | |
| D | 14 | mm | |
| F | 63 | mm | |
| Weight | 1.6 | kg |
