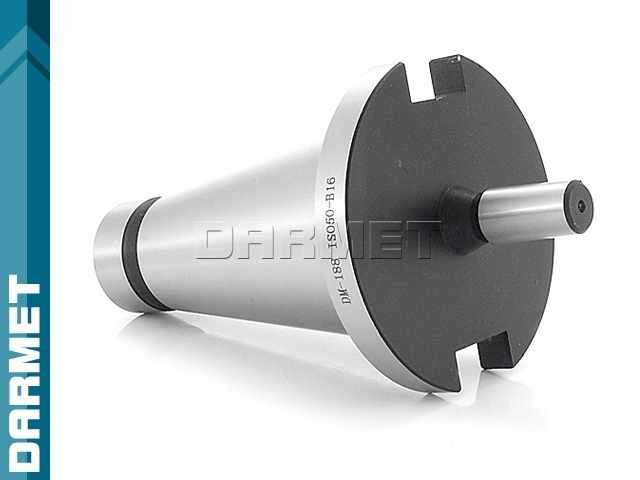

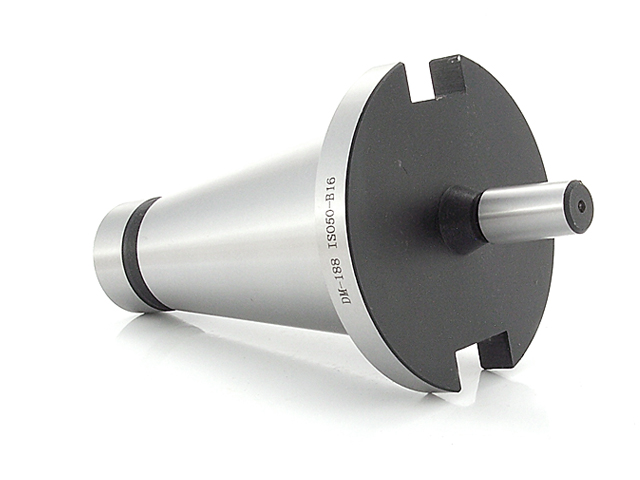

Shank for ISO50/B16 drill chuck - DARMET (DM-188)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Ensure yourself versatility, universality and speed up your work. The drill chuck allows drilling many holes of different sizes using one holder. Only drill bits are interchangeable. The drill spindle will allow you to mount the appropriate chuck in it.
Information:
- Conical chuck according to DIN 2080 SK50 ending with internal thread M24 is used in conventional machines with manual tool change.
- Used to mount drill chucks with B16 taper in drills, lathes and other machine tools.
- To conveniently secure the tool in the holder, a mounting base can be used (not included in the set).
Specification:

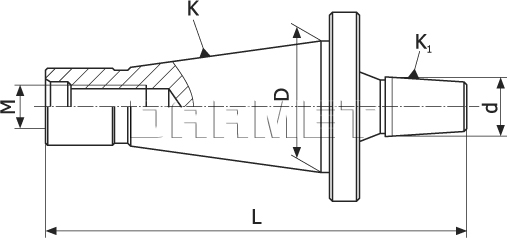

| Parameter | Value |
|---|---|
| K (DIN 2080) | SK50 |
| K1 (DIN 238) | B16 |
| D | 69.85 mm |
| d | 15.733 mm |
| L | 182 mm |
| Mounting thread | M24 |
| Weight | 2.72 kg |
