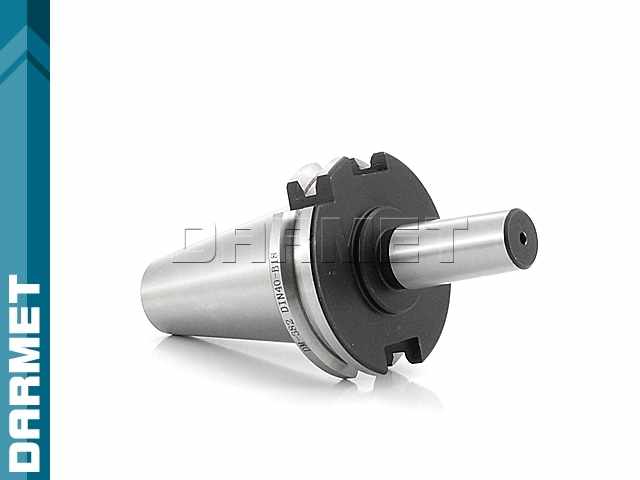

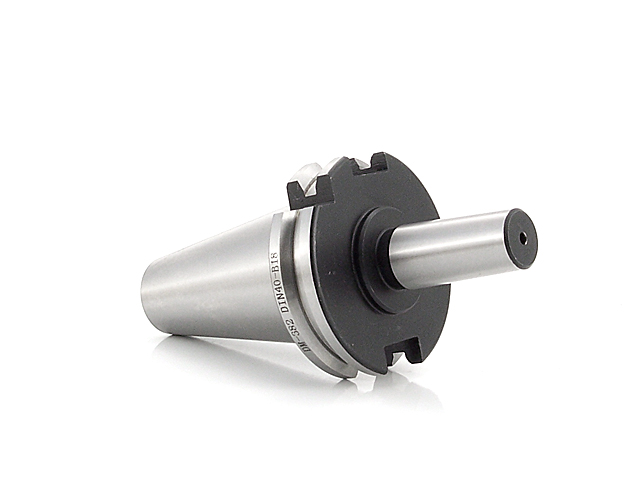

Shank for drill chuck DIN40/B18 - DARMET (DM-382)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Ensure your work is more comfortable thanks to the specialized drill arbor, which allows the attachment of universal drill chucks. This allows you to use many drill sizes in one chuck and perform many operations without changing the chuck, which will save you a lot of time.
Information:
- The taper chuck according to DIN 69871 DIN40, with an internal thread M16, is used in conventional machines and those with automatic tool changing.
- Used for mounting drill chucks with a B18 taper in column drills, lathes and other machine tools.
- To conveniently mount the tool in the chuck, you can use the mounting base (not included in the set).
- For automatic replacement in CNC machines, use puller tips screwed directly into the holder.
Specification:
| Parameter | Value |
|---|---|
| K (DIN 69871) | DIN40 |
| K1 (DIN 238) | B18 |
| L1 | 32 mm |
| L2 | 32 mm |
| L | 132.4 mm |
| d | 17,780 mm |
| D1 | 44.45 mm |
| Thread | M16 |
| Weight | 1.0 kg |
