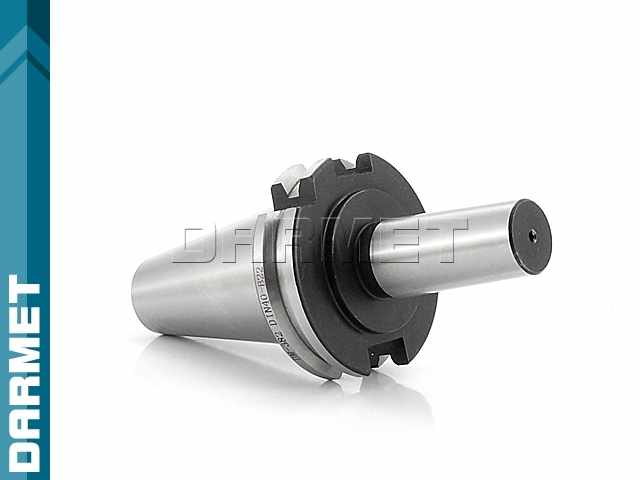

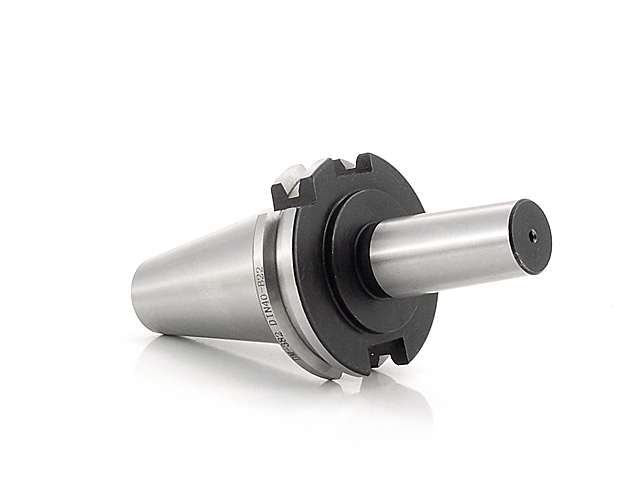

Shank for drill chuck DIN40/B22 - DARMET (DM-382)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Ensure the quality of your work with specialized drill arbors. They allow you to attach universal drill chucks. You can use multiple drill bit sizes and perform more tasks without changing the chuck. This is a noticeable saving of working time.
Information:
- The taper chuck according to DIN 69871 DIN40 with an M16 internal thread is used in conventional machines and those with automatic tool changing.
- Used for mounting drill chucks with a B22 taper in column drills, lathes and other machine tools.
- To conveniently mount the tool in the holder, you can use the mounting base (not included).
- For automatic tool changing in machines CNC, use puller tips screwed directly into the holder.
Specification:
| Parameter | Value |
|---|---|
| K (DIN 69871) | SK40 |
| K1 (DIN 238) | B22 |
| L1 | 26 mm |
| L2 | 40.5 mm |
| L | 140.9 mm |
| d | 21.793 mm |
| D1 | 44.45 mm |
| Thread | M16 |
| Weight | 1.1 kg |
