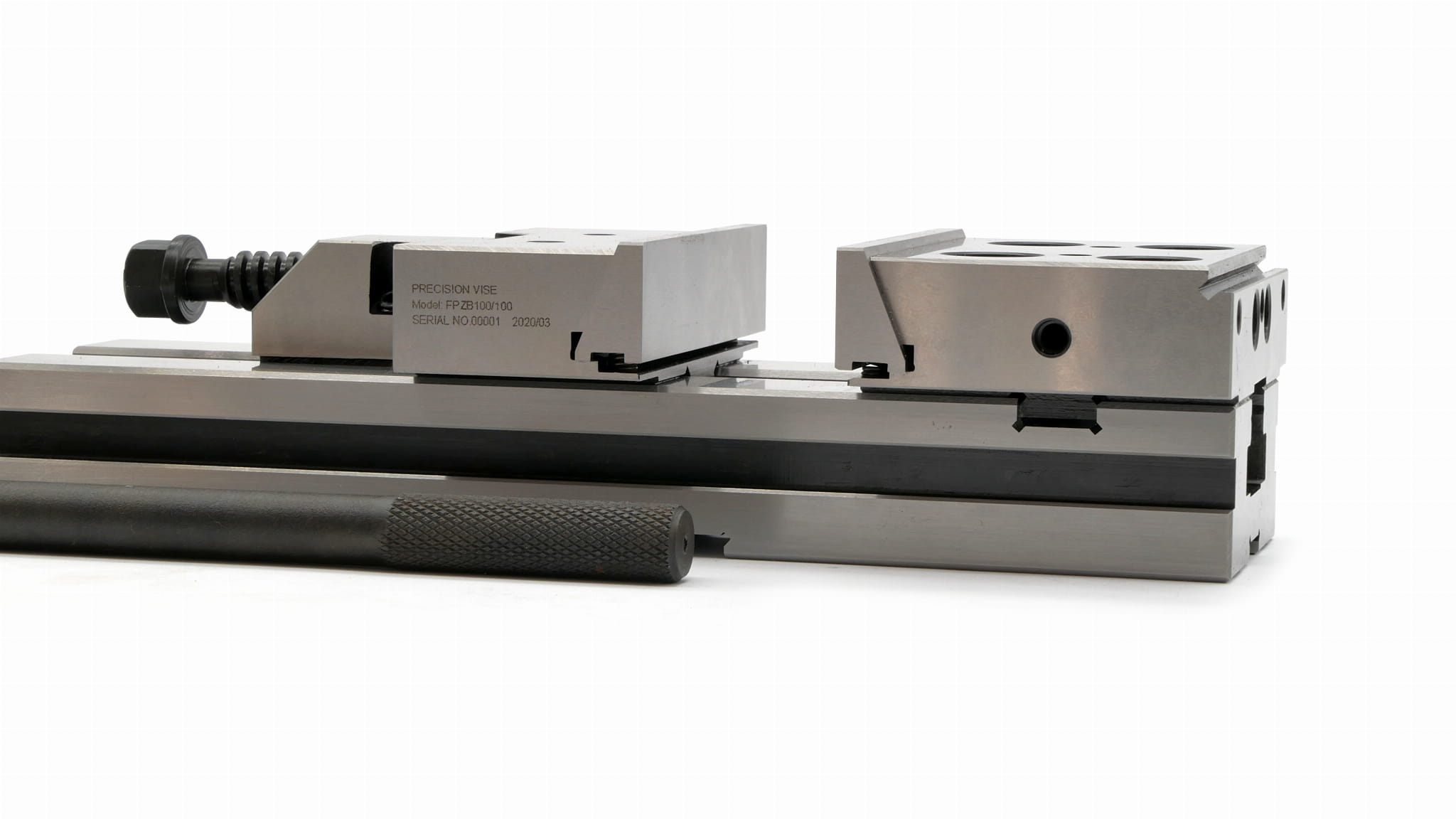

Small Precision Machine Steel Vise 100x100 mm FPZB DARMET

Availability: in stock

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $578.84

incl. 23% TAX, excl. shipping costs

Regular price:

578.84

The lowest price during 30 days prior to the reduction:

Net price: $470.60

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 210 points []

product unavailable

add to wish list

Rating:

2.5

Vendor:

Product code: DM_IM_FPZB_100_100

Information:

Precision steel vice for use in numerical machines for all operations requiring almost perfect dimensions.
High accuracy of manufacture allows the vices to be used in a set. Maximum base deviation ±0.01 mm.
On both sides of the body along its entire length there are channels for mounting the vice with clamping claws.
The jaw movement on the bed is perfectly balanced, free feed with imperceptible play.
Replaceable jaw inserts ensure the versatility of the tool Depending on the type of insert used, it is possible to mount appropriate elements (even rollers).
The quick-clamping system in the movable jaw allows for immediate change of jaw position without time-consuming turning of the crank.
The special design of the insert sockets presses the details downwards against the body.
The jaw holder is responsible for its locking position.
Mounting the device on a dedicated rotary base allows for a full 360° rotation around the axis.
The fixed jaw has threaded holes on both sides to mount special bumpers that stabilize the position of objects.

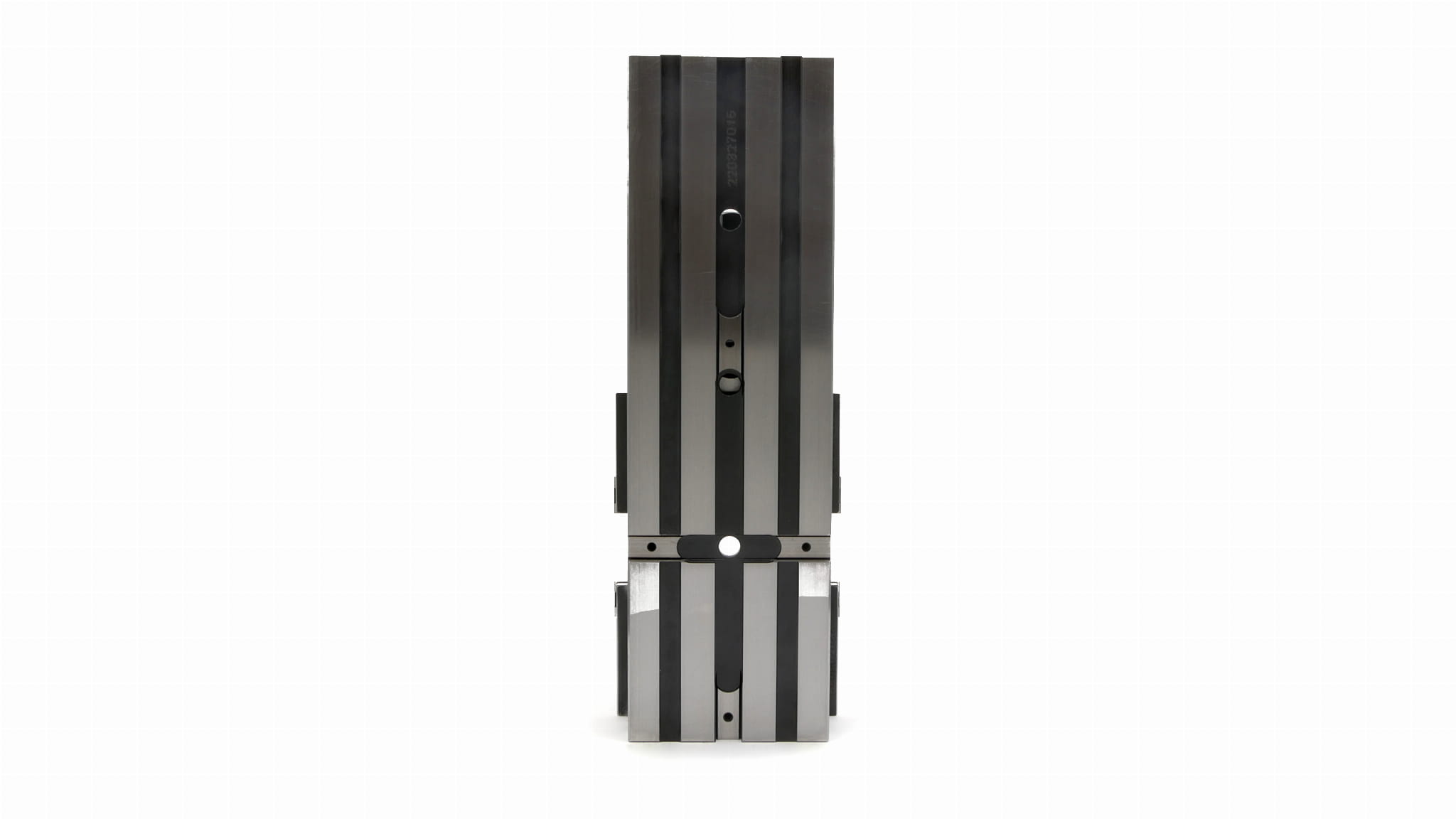

On the bottom of the bed there are grooves for locating stones to set the tool in tables with grooves T-slots.

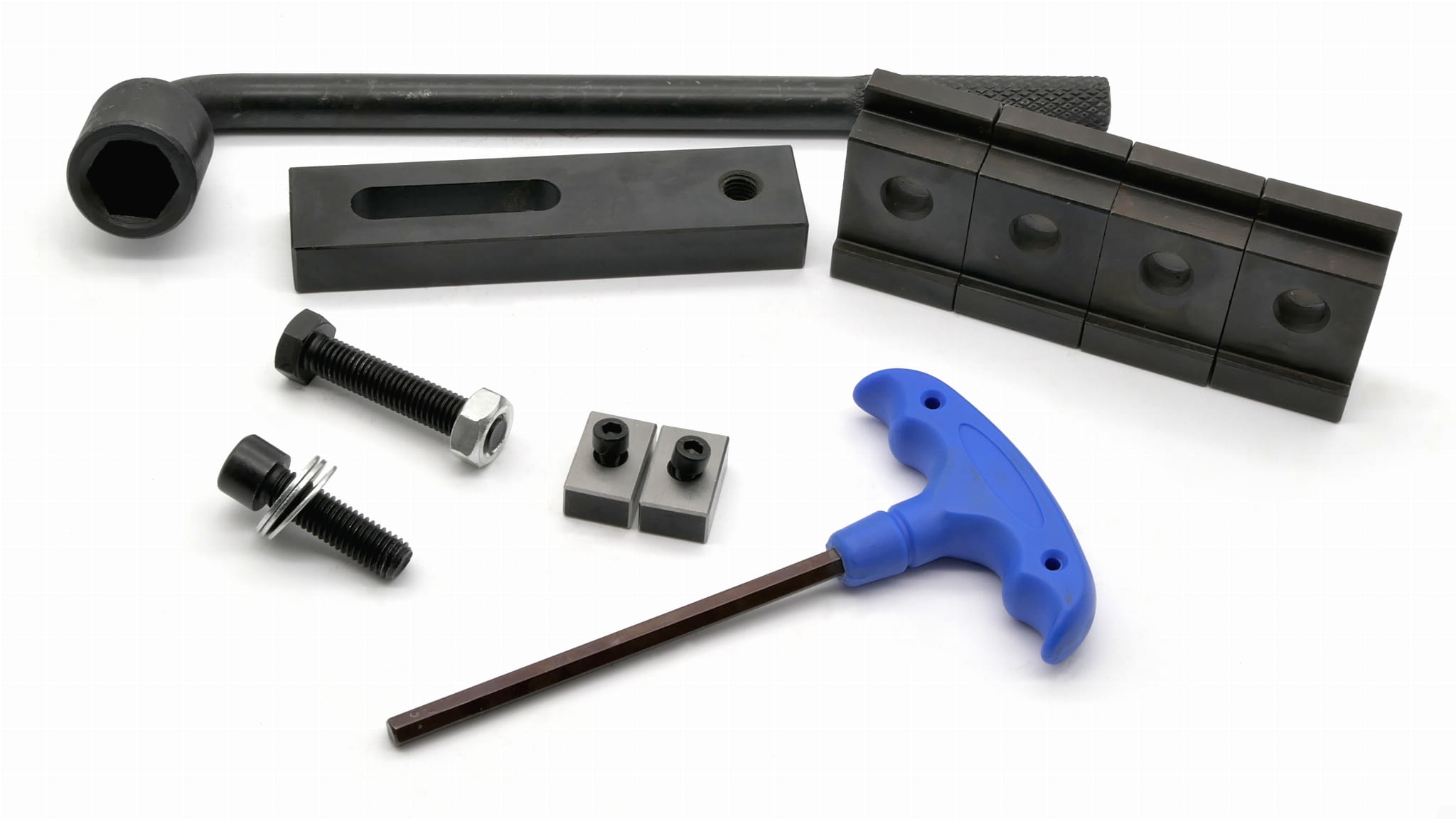

The set includes necessary accessories for mounting and proper operation of the vise.

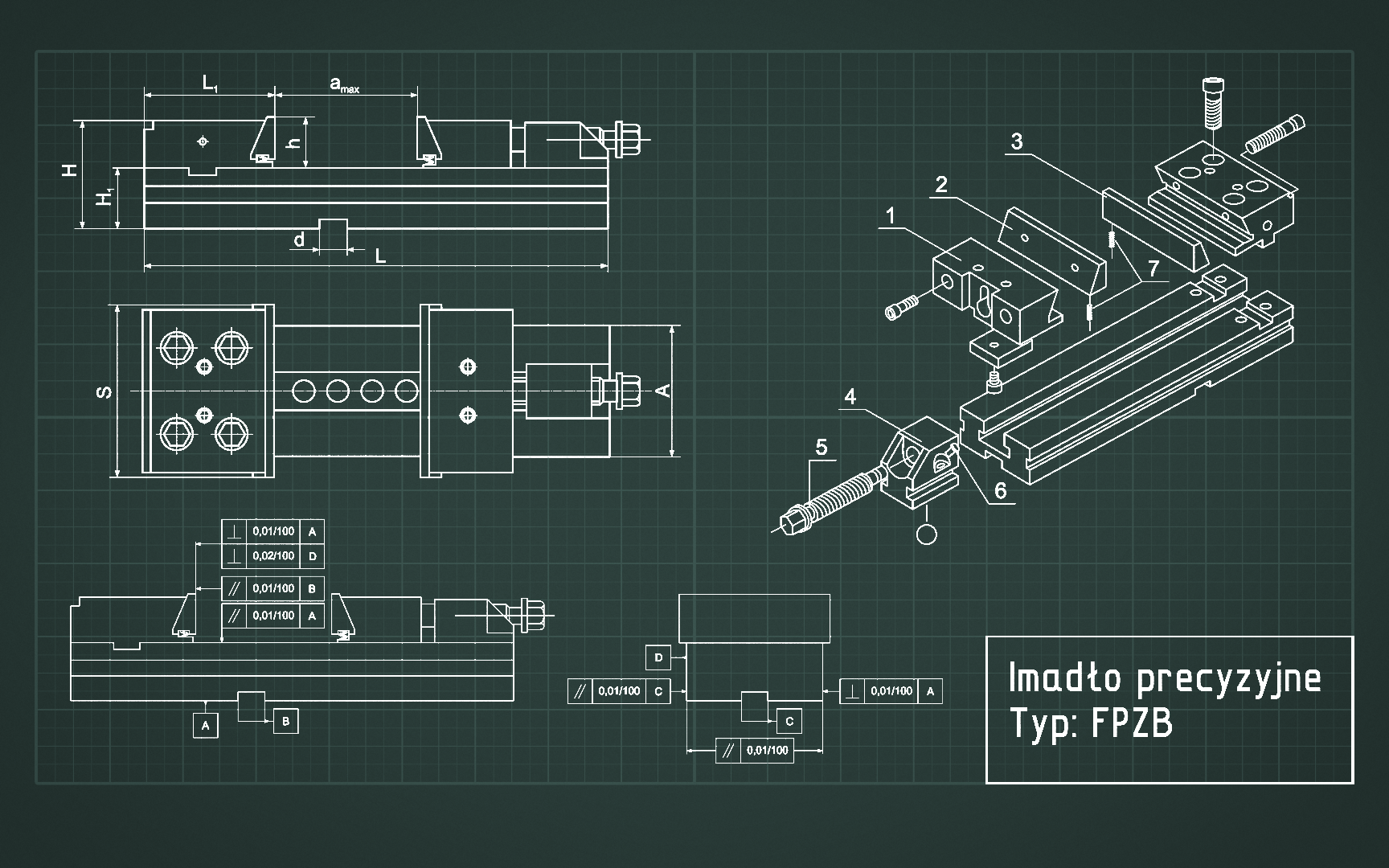

100 MM precision steel vise FPZB100

Metal clamp

The movable jaw holder with a clamping screw ensures quick and easy clamping of workpieces.

Floating inserts

Floating inserts mounted in the jaws of the vice with loose to ensure correct clamping of the workpiece.

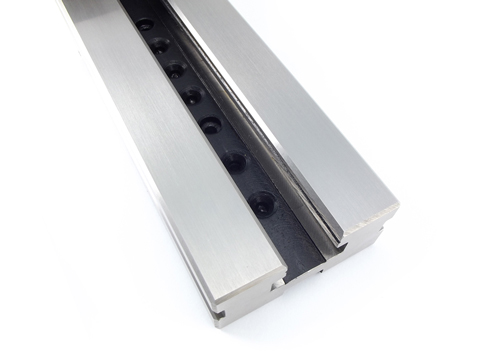

Holes

Holes for positioning the steel ball and holder.

Fixed jaw

The fixed jaw can be rotated 180° with a 5 mm step, tightened with 4 Allen screws.
