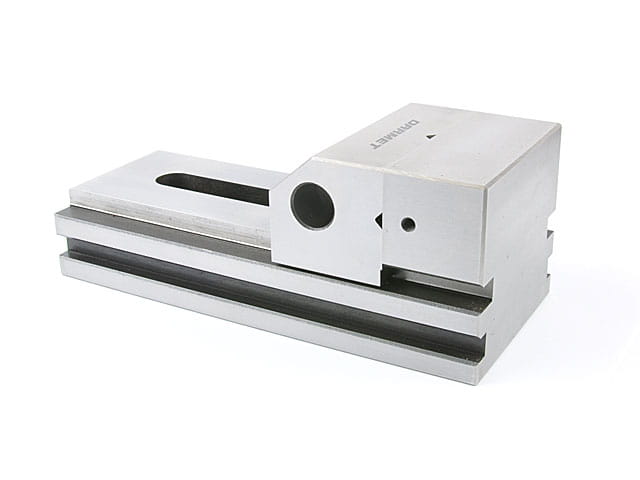

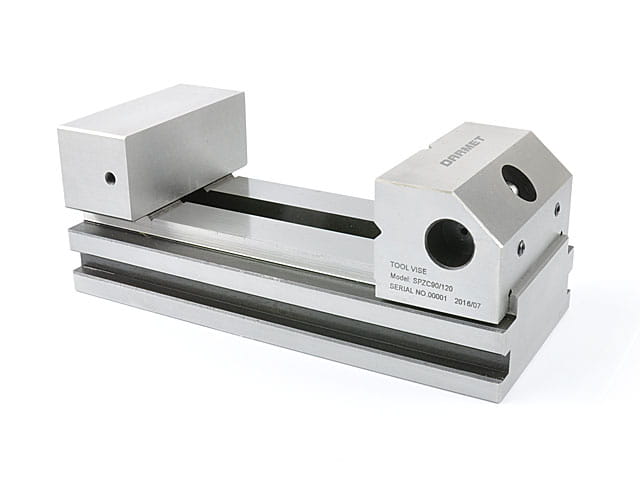

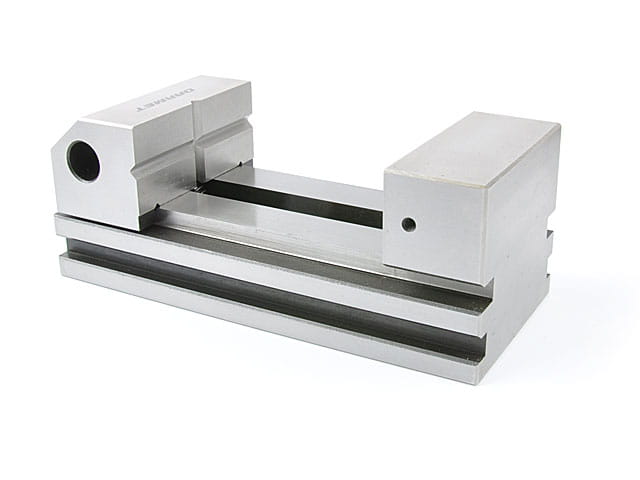

Spindleless Precision Grinding Control Vise Steel 90x120 mm SPZC DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$227.74
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$185.15
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_SPZC_90_120
Description
Information:
- Precisely made control vise for measurements and checks.
- Spindleless vise system allows the movable jaw to move freely along the entire length of the body after releasing the lock.

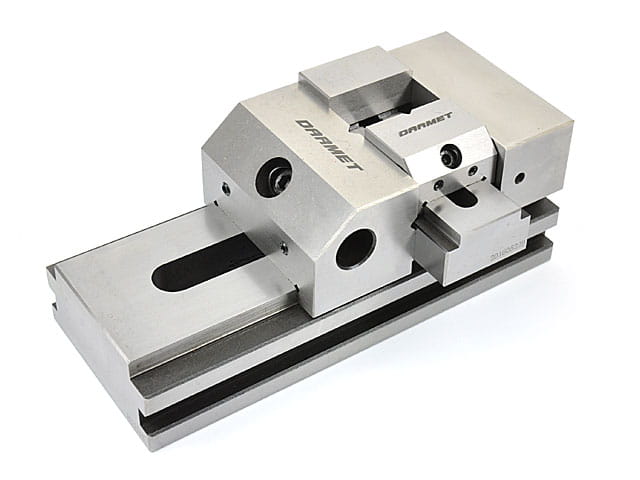

- The narrower movable jaw in relation to the entire body and the fixed jaw allows it to work in a lateral position, as well as when mounted on another vise.
- Prismatic movable jaw also allows for clamping shafts and other shapes.
- The body and the fixed jaw form a monolithic whole.
- Threaded hole on both sides of the fixed jaw allows for the installation of stops.

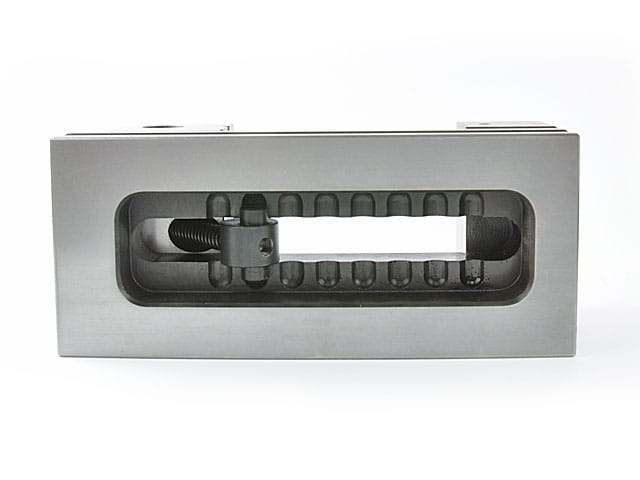

- A special spring mechanism positions and stabilizes the lead screw, which eliminates uncontrolled change of the movable jaw position.
- Material: high-quality alloy steel.
- Working surfaces hardened to 58-62 HRC.

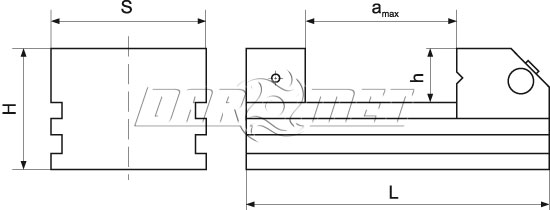

Specification:
| Parameter | Value |
|---|---|
| S | 90 mm |
| amax | 120 mm |
| h | 40 mm |
| H | 80 mm |
| L | 210 mm |
| Weight | 6.6 kg |

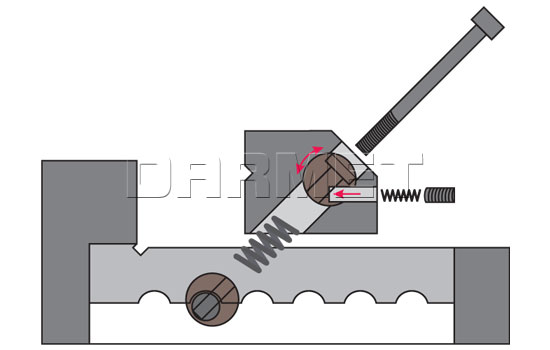

Spring mechanism construction diagram:

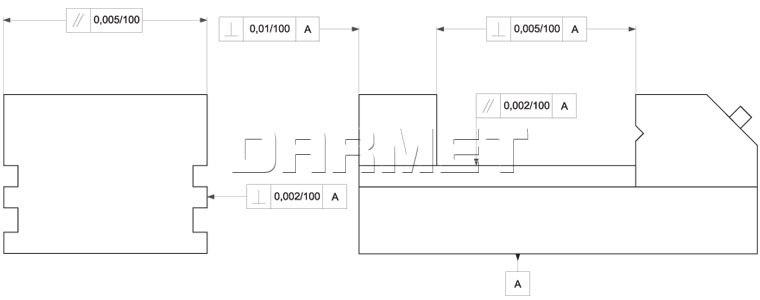

Vice accuracy:
