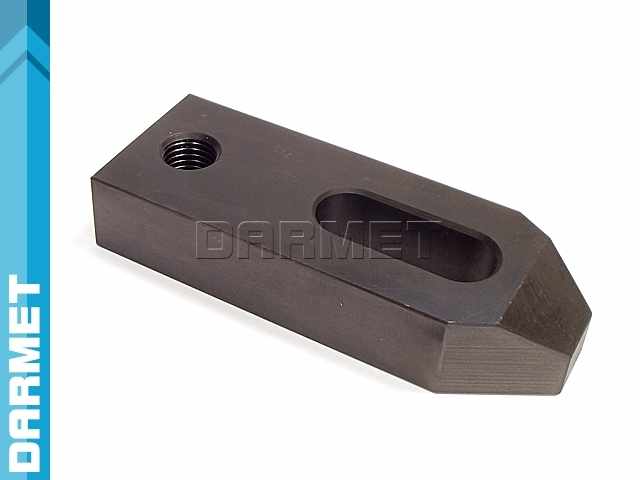

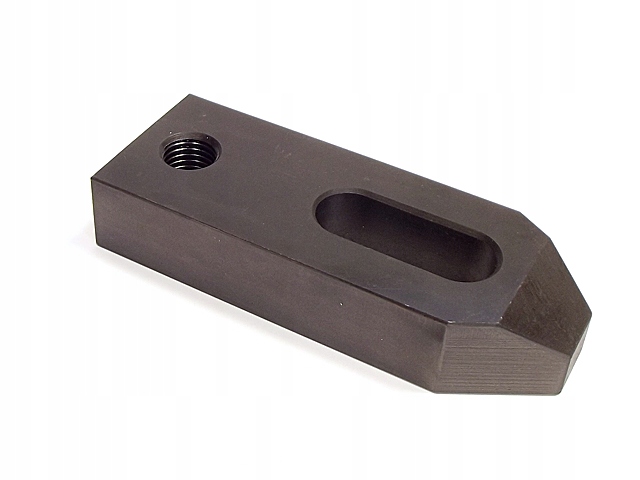

Straight clamp pawl RLF - M20 - 160MM - DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$24.41
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$19.85
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
WG_RLF20160
Description
Information:
- RLF straight clamp made according to DIN 6314
- Clamps can be used to clamp the workpiece directly on the machine table or indirectly by pressing another machining fixture, e.g. a machine vice or a lathe chuck.
- For clamps, supports with a height equal to the workpiece height or stepped washers
- Straight clamps are suitable for clamping workpieces with a flat front surface.
Attention! T-bolts, washers and nuts must be ordered separately.

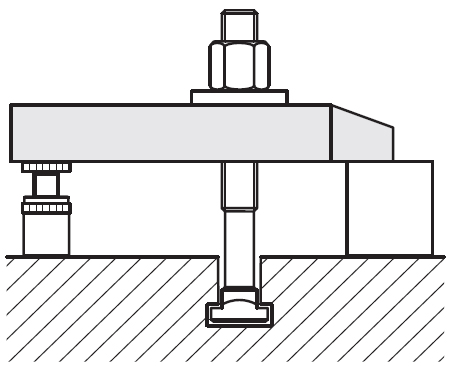

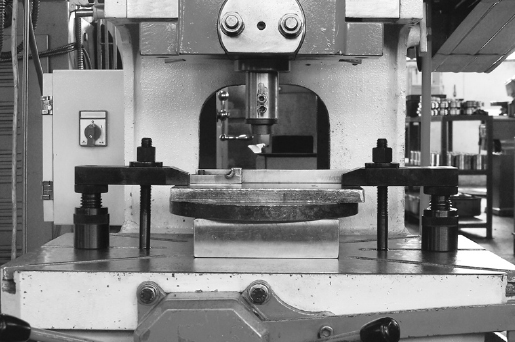

Application example:
Technical specifications:
| Parameter | Value | Unit |
|---|---|---|
| d1 | M20 | |
| a | 30 | mm |
| b2 | 60 | mm |
| b3 | 22 | mm |
| e1 | 60 | mm |
| e2 | 30 | mm |
| b1 | 22.5 | mm |
| T-bolt | M20 - M22 | |
| L | 160 | mm |
