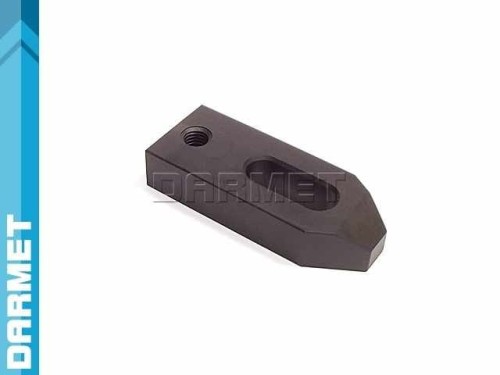

Straight clamping clamp RLF - M6 - 50MM - DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$7.02
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.71
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
WG_RLF06050
Description
Values and application:
- RLF straight clamp made according to DIN 6314
- Material: 1.1191, hardness: 32-35 HRC
- The clamps can be used to clamp the workpiece directly on the machine table or indirectly by pressing another machining fixture, e.g. machine vice or lathe chuck
- For the clamps, use supports with a height equal to the height of the workpiece or step washers
- Straight clamps are suitable for clamping workpieces with a flat front surface
Attention! T-bolts, washers and nuts must be ordered separately.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| d1 | M8 | |
| a | 10 | mm |
| b2 | 20 | mm |
| b3 | 8 | mm |
| e1 | 20 | mm |
| e2 | 10 | mm |
| b1 | 6.6 | mm |
| T-bolt | M6 | |
| L | 50 | mm |
