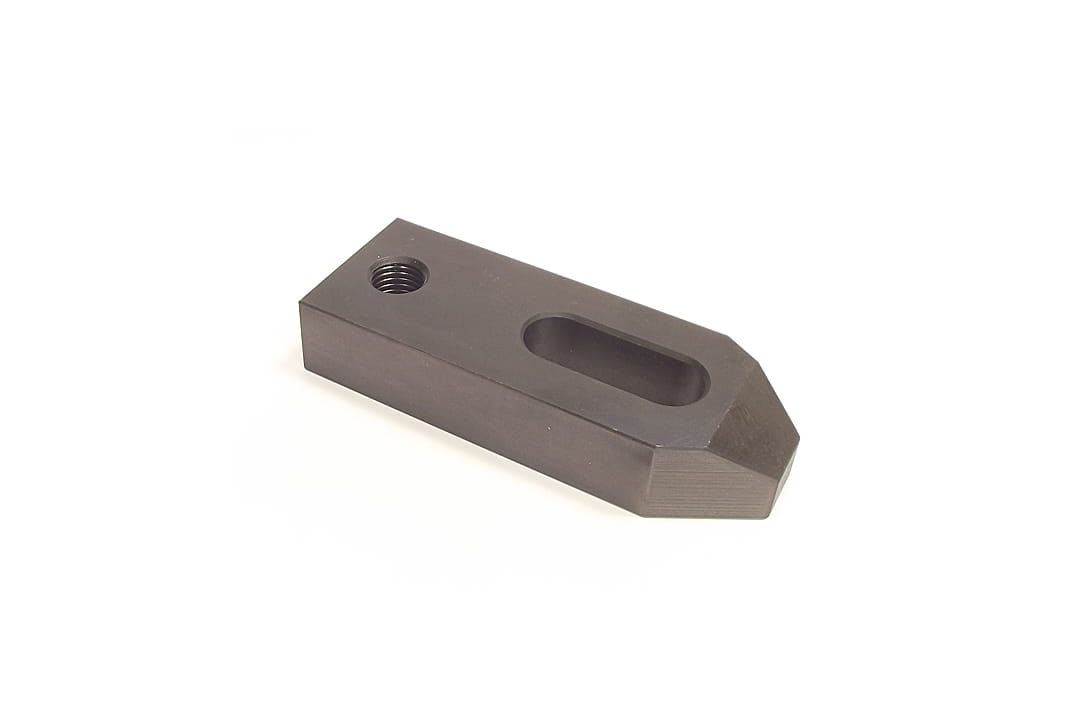

Straight pressure pawl RLF - M16 - 160MM - DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$16.89
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$13.73
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
WG_RLF16160
Description
Information:
- RLF straight clamp made according to DIN 6314
- Clamps can be used to clamp the workpiece directly on the machine table or indirectly by pressing another machining fixture, e.g. a machine vice or a lathe chuck.
- For clamps, supports with a height equal to the workpiece height or stepped washers
- Straight clamps are suitable for clamping workpieces with a flat front surface.
Attention! T-bolts, washers and nuts must be ordered separately.
Application example:
Technical specifications:
| Parameter | Value | Unit |
|---|---|---|
| d1 | M16 | |
| a | 25 | mm |
| b2 | 50 | mm |
| b3 | 18 | mm |
| e1 | 65 | mm |
| e2 | 26 | mm |
| b1 | 18.5 | mm |
| T-bolt | M16 - M18 | |
| L | 160 | mm |
