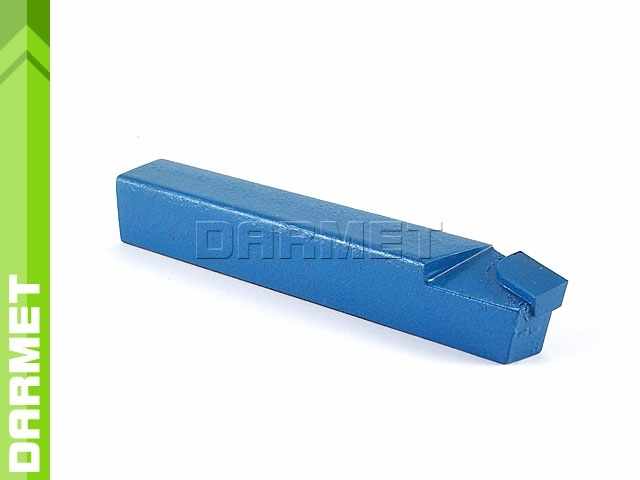

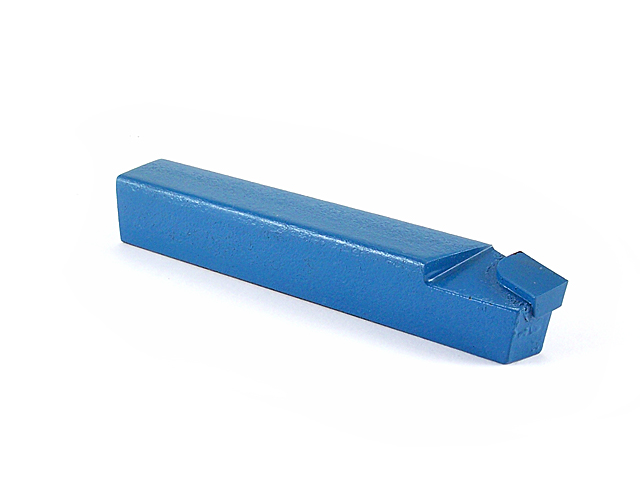

Straight right lathe tool NNZa ISO1, size 2525 S10 (P10), for steel
Availability:
dostępny na zamówienie
Dispatched within:
3 dni
Gross price:
$15.85
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$12.88
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
NNZa-ISO1-2525-S10
Description
Values and application:
- Designed for individual work and small series.
- Equipped with a ground S10 (P10) carbide cutting insert.
- Material machined with S10 (P10) carbide inserts: steel, cast steel, malleable cast iron.
- Type of machining with S10 (P10) carbide inserts: turning, boring, milling and copy turning, roughing, medium-precision, medium cutting speeds with medium rigidity of the machine - workpiece - tool system; continuous and interrupted cutting.

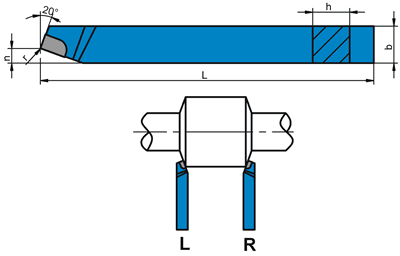

Technical data:
| Parameter | Value | Unit |
|---|---|---|
| h | 25 | mm |
| b | 25 | mm |
| L | 140 | mm |
| n | 10 | mm |
| r | 0.8 | mm |
| Weight | 0.7 | kg |
| Lathe cutter |
ISO 243 ISO 514 |
PN-91 M-58352 |
DIN |
|---|---|---|---|
| Straight | ISO1 | NNZa | 4971 |
Cutting parameters, cemented carbide grades, applications and technical information can be found here.
