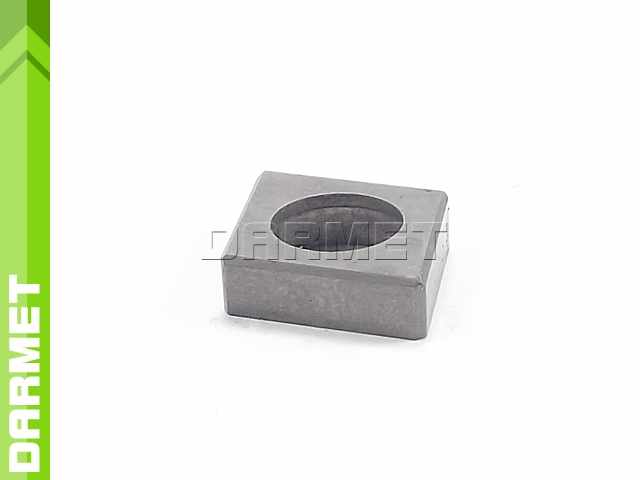

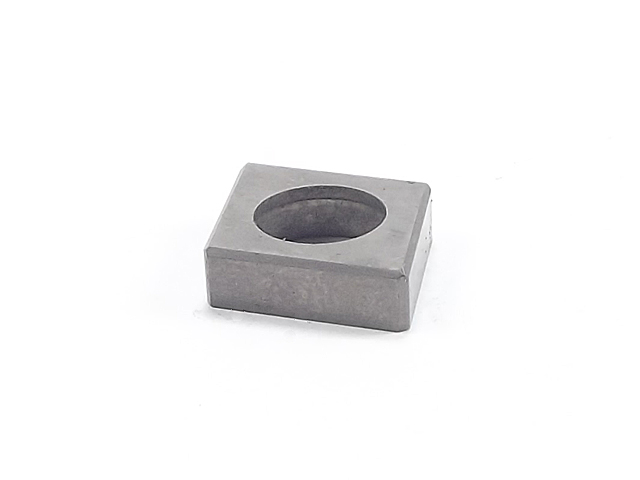

Support insert | rhombus shape 80 degrees | for CNMA, CNMG, CNMP (SHMC1604)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$3.39
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$2.76
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMC1604
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is rhombic
- The support plate is mounted using:
- CLM mounting pin - in the M mounting system
- screws for the support plate - in C and D mounting systems

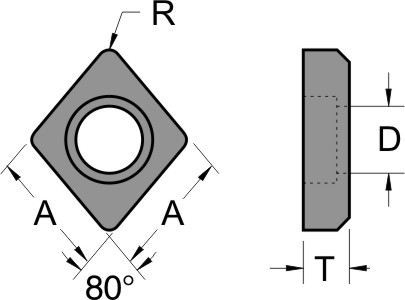

Technical data:
| Parameter | Value | Unit. |
|---|---|---|
| A | 15.5 | mm |
| R | 0.8 | mm |
| T | 4.8 | mm |
| through hole | 9.8 | mm |
Mounting system
| Support plate SHMC1606 fits: | |
| Cutting inserts | External indexable turning tools |
| CNMG 160612 NR PVD | MCLNR/L 2525M16 |
| CNMG 160608 DMR TP25C | MCLNR/L 3225P16 |
| CNMG 160608 DMR TP40C | MCLNR/L 3232P16 |
| CNMG 160612 DMR TP25C | MCBNR/L 2525M16 |
| CNMG 160616 DMR TP25C | MCBNR/L 3225P16 |
| MCBNR/L 3232P16 | |
| MCKNR/L 2525M16 | |
| MCKNR/L 3225P16 | |
| MCKNR/L 3232P16 | |
| CCLNR/L 2525M16 | |
| CCLNR/L 3225P16 | |
| DCLNR/L 2525M16 | |
| DCLNR/L 3232P16 | |
| DCBNR/L 2525M16 | |
| DCBNR/L 3232P16 | |
| DCKNR/L 2525M16 | |
| DCKNR/L 3232P16 | |
| DCMNN 2525M16 | |
| DCMNN 3232P16 | |
