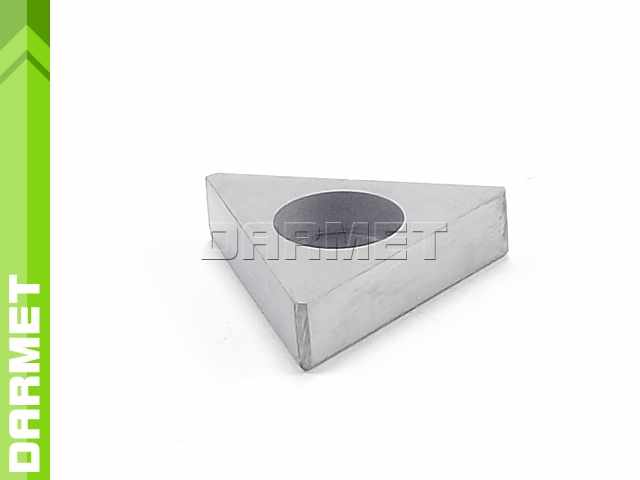

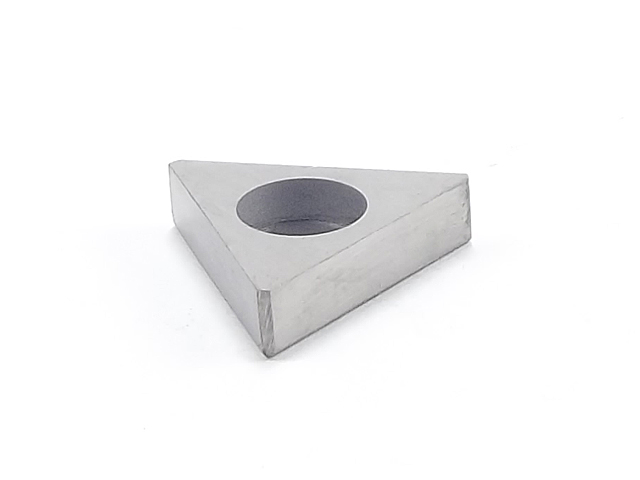

Support insert | triangular shape | for TNGG, TNMG, TNMP, TNUX inserts (SHWT1604)
Regular price:
Regular price:
product unavailable
add to wish list
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is triangular
- Fits turning tools in the W clamping system

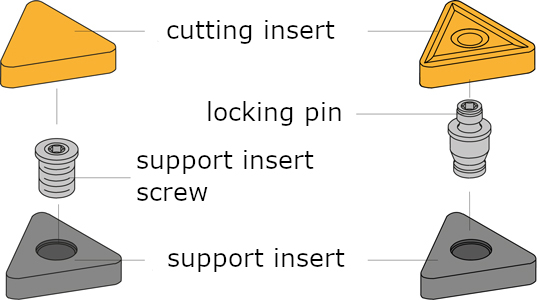

- The support plate is mounted using:
- CLM mounting pin - in the M clamping system
- screws for support plate - in C and D mounting systems
Technical data:

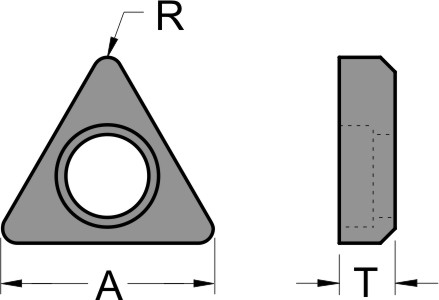

| Parameter | Value | Unit |
|---|---|---|
| A | 14.5 | mm |
| R | 0.8 | mm |
| T | 3.2 | mm |
| through hole | 5.8 | mm |
Fixing system

| The SHWT1604 shim fits: | |
| cutting inserts | indexable turning tools external |
| TNGG 160404 ALU PVD | WTQNR/L 2020K16 |
| TNMG 160404 NN PVD | WTQNR/L 2525M16 |
| TNMG 160404 DFM TP25C | WTQNR/L 3232P16 |
| TNMG 160408 NN PVD | WTJNR/L 1316H16 |
| TNMG 160408 DFM TP25C | WTJNR/L 1616K16 |
| TNMG 160412 NN PVD | WTJNR/L 2020K16 |
| TNMG 160412 DFM TP25C | WTJNR/L 2525M16 |
| TNMP 160408 NN PVD | WTJNR/L 3232P16 |
| TNUX 160404 R PVD | WTENN 2020K16 |
| TNUX 160404 L PVD | WTENN 2525M16 |
| TNUX 160408 R PVD | WTENN 3232P16 |
| TNUX 160408 L PVD | |
