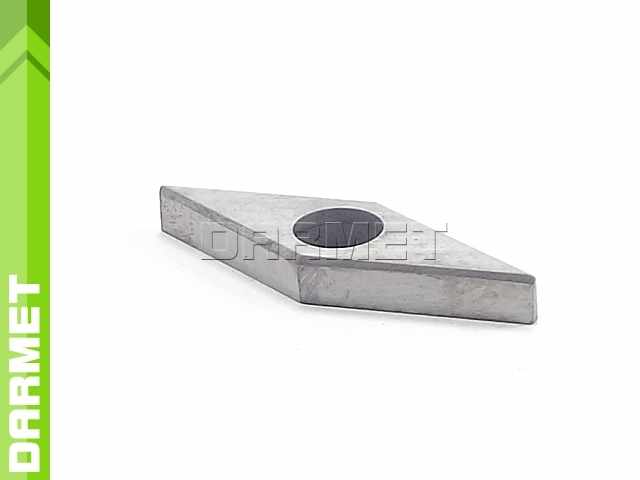

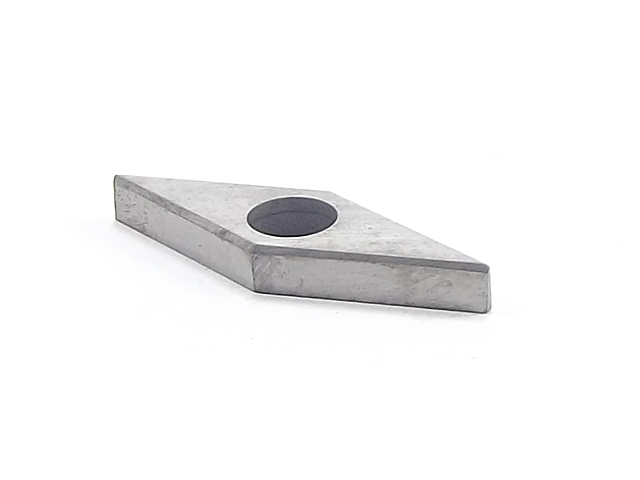

Support plate | 35-degree diamond shape | for VNMG inserts (SHMV1604)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$6.91
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.62
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMV1604
Description
Properties and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the plate diamond 35°

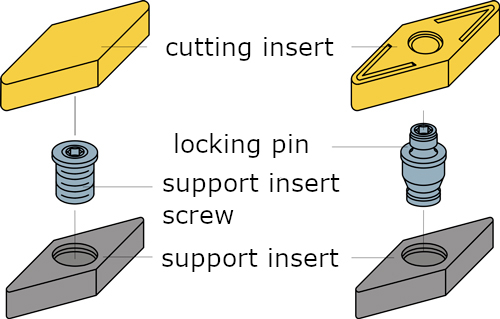

- The support plate is mounted using:
- CLM mounting pin - in the M mounting system
- screws for support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| A | 14.8 | mm |
| R | 0.8 | mm |
| T | 3.3 | mm |
| D | 5.8 | mm |
Fixing system
| Support plateSHMV1604 fits: | ||
| Cutting inserts | Indexable turning tools | |
| external: | internal: | |
| VNMG 160404 NN PVD | MVJNR/L 1616H16 | S32S-MVQNR/L16 |
| VNMG 160404 DF TP15C | MVJNR/L 2020K16 | S40T-MVQNR/L16 |
| VNMG 160408 NN PVD | MVJNR/L 2525M16 | S32S-MVUNR/L16 |
| VNMG 160408 DF TP15C | MVJNR/L 3225P16 | S40T-MVUNR/L16 |
| VNMG 160408 DM TP25C | MVVNN 2020K16 | S32S-MVWNR/L16 |
| VNMG 160412 DM TP25C | MVVNN 2525M16 | S40T-MVWNR/L16 |
| MVVNN 3225P16 | S32S-MVXNR/L16 | |
| MVVNN 3232P16 | S40T-MVXNR/L16 | |
| MVUNR/L 1616H16 | ||
| MVUNR/L 2020K16 | ||
| MVUNR/L 2525M16 | ||
| MVUNR/L 3225P16 | ||
| MVUNR/L 3232P16 | ||
| MVQNR/L 1616H16 | ||
| MVQNR/L 2020K16 | ||
| MVQNR/L 2525M16 | ||
| MVQNR/L 3225P16 | ||
| MVQNR/L 3232P16 | ||
| DVVNN 2020K16 | ||
| DVVNN 2525M16 | ||
| DVVNN 3225P16 | ||
| DVVNN 3232P16 | ||
| DVJNR/L 2020K16 | ||
| DVJNR/L 2525M16 | ||
| DVJNR/L 3225P16 | ||
| DVJNR/L 3232P16 | ||
