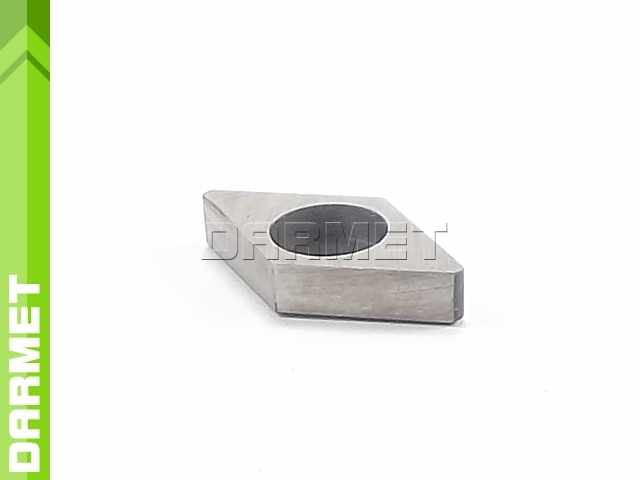

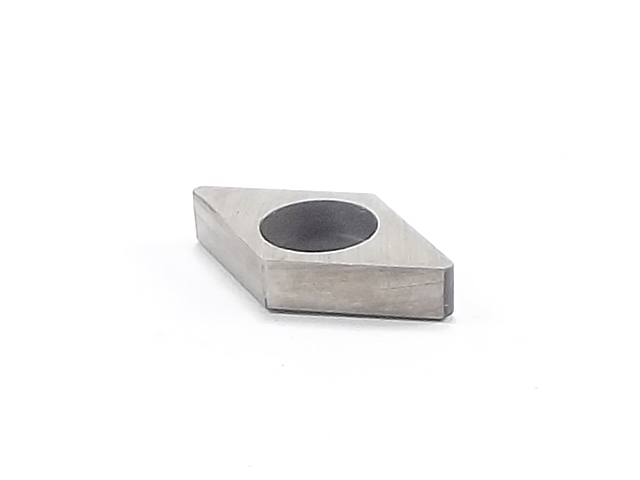

Support plate | 55-degree diamond shape | for DNGG, DNMG inserts (SHMD1104)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$5.76
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$4.68
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMD1104
Description
Properties and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert diamond 55°

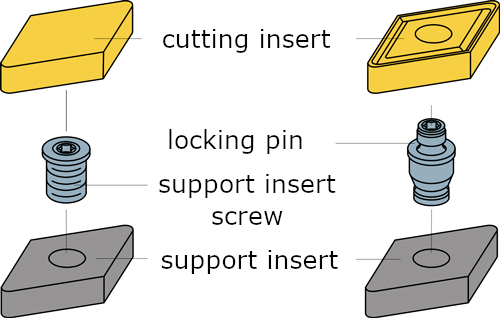

- The support plate is mounted using:
- CLM mounting pin - in the M mounting system
- screws for support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| A | 11.3 | mm |
| R | 0.8 | mm |
| T | 3.2 | mm |
| D | 5.9 | mm |
Fixing system
| Support plateSHMD1104 fits: | |
| Cutting inserts | External indexable turning tools |
| DNGG 110404 ALU PVD | MDJNR/L 1616H11 |
| DNGG 110408 ALU PVD | MDJNR/L 2020K11 |
| DNMG 110404 NN PVD | MDJNR/L 2525M11 |
| DNMG 110408 DF TP15C | MDPNN 1616H11 |
| DNMG 110408 DF TK10C | MDPNN 2020K11 |
| DNMG 110408 DM TP25C | MDPNN 2525M11 |
| DNMG 110408 NN PVD | MDQNR/L 1616H11 |
| MDQNR/L 2020K11 | |
| MDQNR/L 2525M11 | |
| DDJNR/L 2020K11 | |
| DDJNR/L 2525M11 | |
| DDPNN 2020K11 | |
| DDPNN 2525M11 | |
| DDQNR/L 2020K11 | |
| DDQNR/L 2525M11 | |
