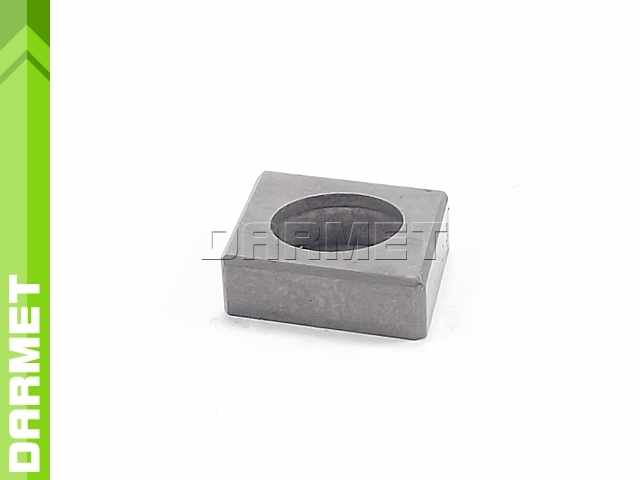

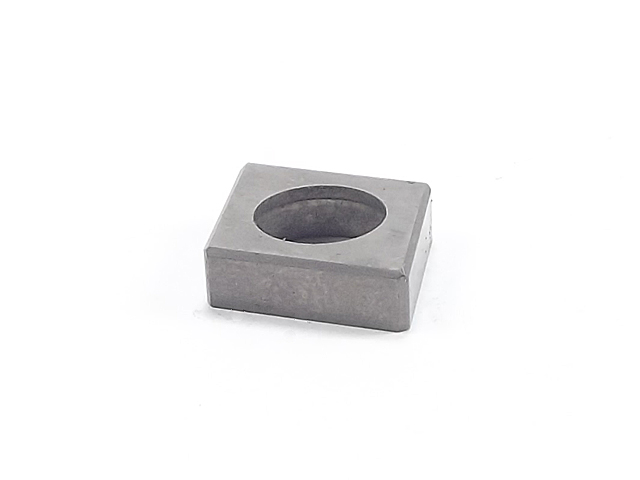

Support plate | 80-degree rhombus shape | for CNMA, CNMG, CNMP (SHMC1204)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$6.91
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.62
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMC1204
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is rhombic
- The support plate is mounted using:
- CLM mounting pin - in the M mounting system
- screws for the support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit. |
|---|---|---|
| A | 12.4 | mm |
| R | 1.2 | mm |
| T | 4.8 | mm |
| through hole | 7.2 | mm |
Mounting system
| Support plate SHMC1204 fits: | ||
| Cutting inserts | Indexable turning tools | |
| external: | internal: | |
| CNMA 120416 NN PVD | MCLNR/L 1616H12 | S40T-MCKNR/L12 |
| CNMG 120404 NN PVD | MCLNR/L 2020K12 | S50U-MCKNR/L12 |
| CNMG 120404 DF TP15C | MCLNR/L 2525M12 | S32S-MCLNR/L12 |
| CNMG 120404 DF TS15C | MCLNR/L 3225P12 | S40T-MCLNR/L12 |
| CNMG 120408 NN PVD | MCLNR/L 3232P12 | S50U-MCLNR/L12 |
| CNMG 120408 DF TP15C | MCBNR/L 2020K12 | |
| CNMG 120408 DF TS15C | MCBNR/L 2525M12 | |
| CNMG 120408 DMR TP15C | MCBNR/L 3225P12 | |
| CNMG 120408 DMR TP25C | MCKNR/L 2020K12 | |
| CNMG 120408 DMR TP40C | MCKNR/L 2525M12 | |
| CNMG 120408 DMR TK10C | MCKNR/L 3225P12 | |
| CNMG 120412 NN PVD | CCLNR/L 2020K12 | |
| CNMG 120412 DMR TP15C | CCLNR/L 2525M12 | |
| CNMG 120412 DMR TP25C | DCLNR/L 2020K12 | |
| CNMG 120412 DMR TK10C | DCLNR/L 2525M12 | |
| CNMG 120416 DMR TP25C | DCLNR/L 3232P12 | |
| CNMP 120408 NN PVD | DCBNR/L 2020K12 | |
| CNMP 120412 NN PVD | DCBNR/L 2525M12 | |
| DCBNR/L 3232P12 | ||
| DCKNR/L 2020K12 | ||
| DCKNR/L 2525M12 | ||
| DCKNR/L 3232P12 | ||
| DCMNN 2020K12 | ||
| DCMNN 2525M12 | ||
| DCMNN 3232P12 | ||
