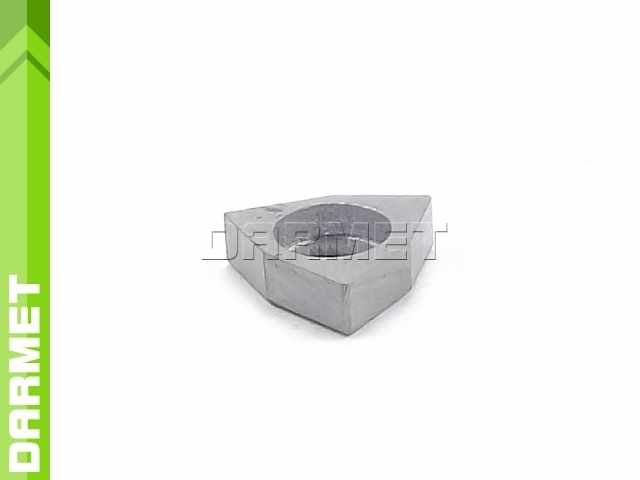

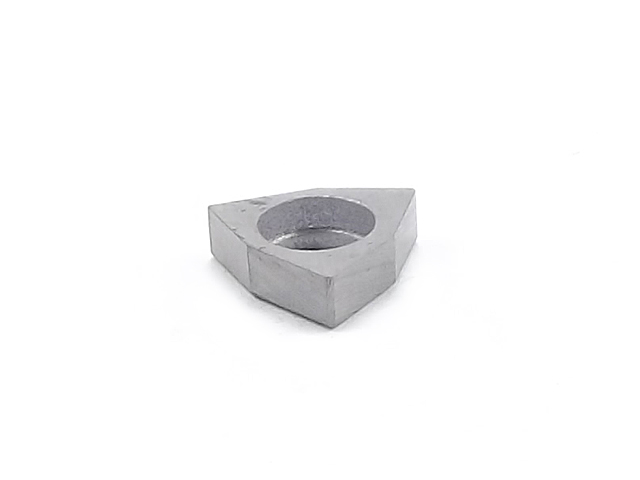

Support plate | 80-degree trigonal shape | for WNMG inserts (SHMW0604)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$5.76
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$4.68
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMW0604
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is trigonal
- The support plate is mounted using:
- CLM mounting pin - in the M mounting system
- screws for the support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit. |
|---|---|---|
| D | 9.4 | mm |
| R | 0.8 | mm |
| T | 3.3 | mm |
| through hole | 5.85 | mm |
Mounting system
| Support plate SHMW0604 fits: | |
| Cutting inserts | External indexable turning tools |
| WNMG 060404 NN PVD | MWLNR/L 2020K06 |
| WNMG 060408 NN PVD | MWLNR/L 2525M06 |
| WNMG 060408 DFM TP25C | |
| WNMP 060404 NN PVD | |
| WNMP 060408 NN PVD | |
