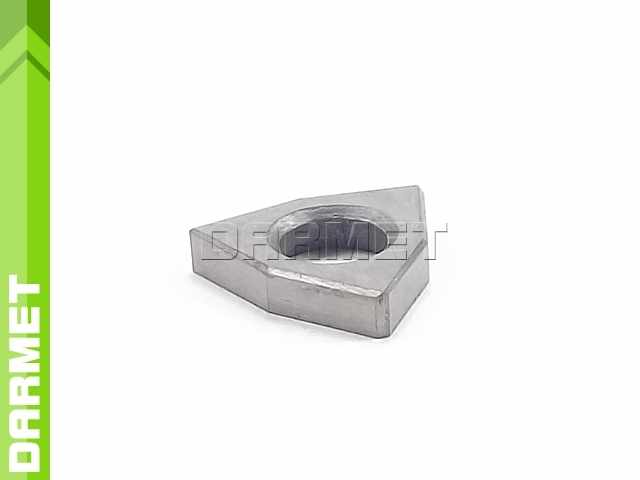

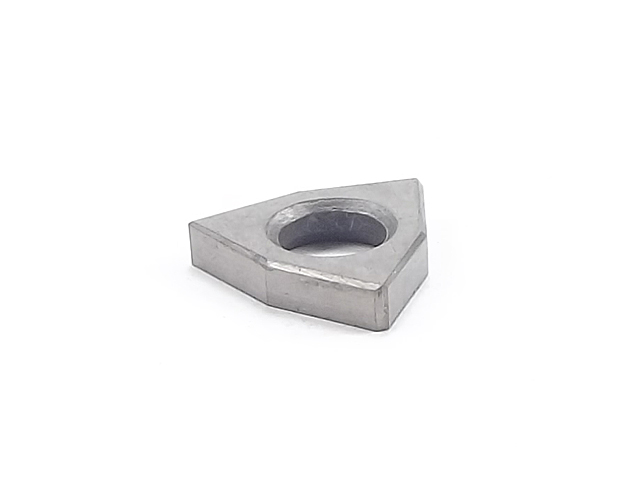

Support plate | 80-degree trigonal shape | for WNMG inserts (SHPW0604)
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$5.76
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$4.68
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHPW0604
Description
Properties and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is trigonal

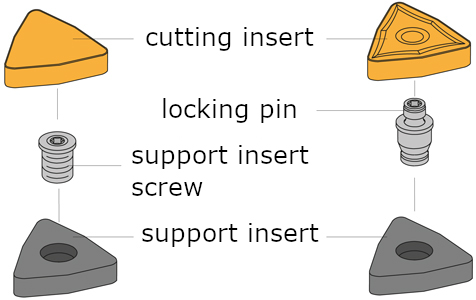

- The support plate is mounted using:
- angle lever - in the P system
- CLM mounting pin - in the clamping system M
- screws for support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| D | 9.2 | mm |
| R | 0.8 | mm |
| T | 2.7 | mm |
| through hole | 4.9 | mm |
Fixing system
| The SHPW0604 shim fits: | |
| Cutting inserts | External indexable turning tools |
| WNMG060404 NN PVD | PWLNR/L 1616H06 |
| WNMG 060408 NN PVD | PWLNR/L 2020K06 |
| WNMG 060408 DFM TP25C | PWLNR/L 2525M06 |
| WNMP 060404 NN PVD | |
| WNMP 060408 NN PVD | |
