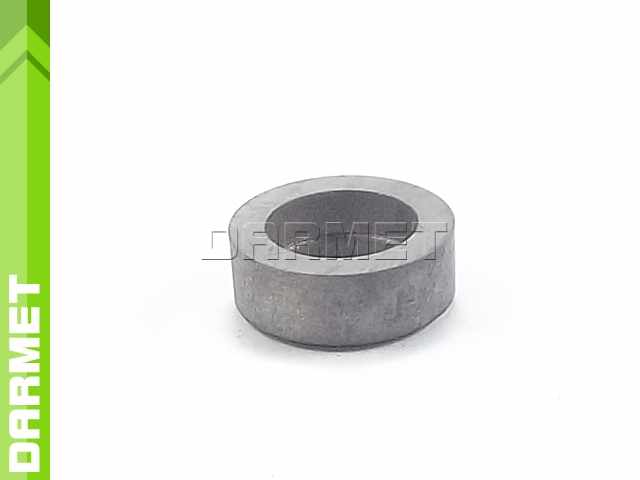

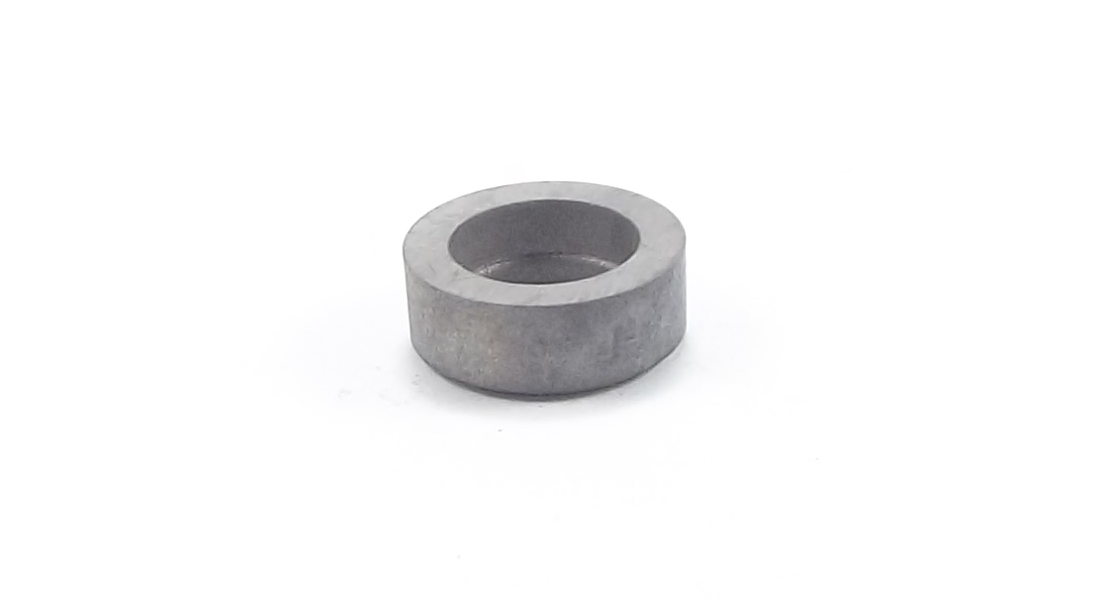

Support plate | diameter 9.80 mm | round shape | for RCMT, RCMX inserts (SHPR1204)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$3.39
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$2.76
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHPR1204
Description
Properties and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is round

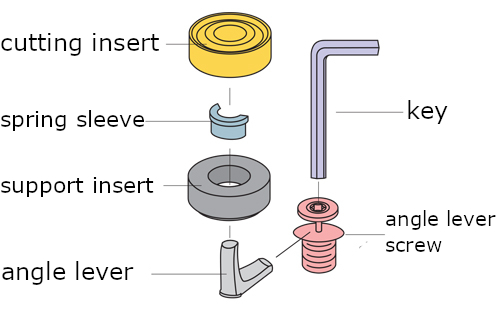

- The support plate is mounted using:
- LVP12C angle lever - P mounting system
- The hole for the pin is secured is done using SPP3 spring sleeve

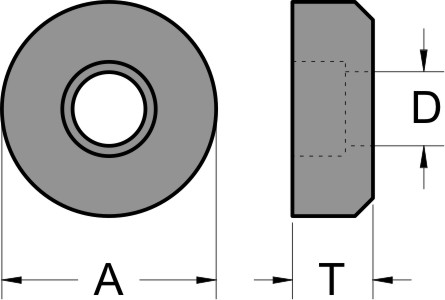

Technical data:
| Parameter | Value | Unit |
|---|---|---|
| A | 9.8 | mm |
| T | 3.2 | mm |
| D | 5 | mm |
Fixing system
| Support plateSHPR1204 fits: | |
| Cutting inserts | External indexable turning tools |
| RCMT 1204M0 PVD | PRDCN 2020K12 |
| RCMX 1204__ | PRDCN 2525M12 |
| PRGCR/L 2020K12 | |
| PRGCR/L 2525M12 | |
