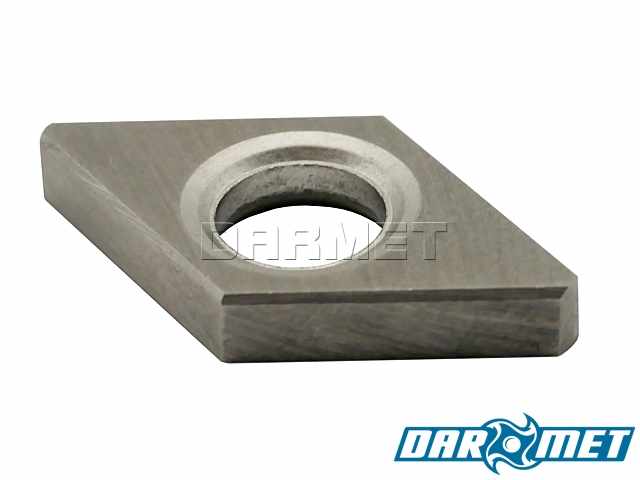

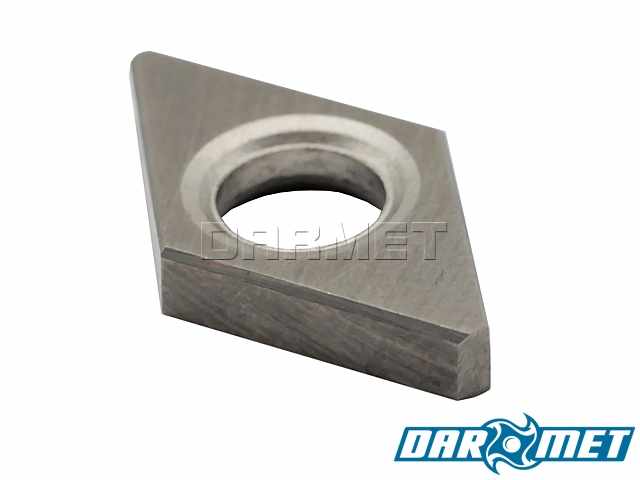

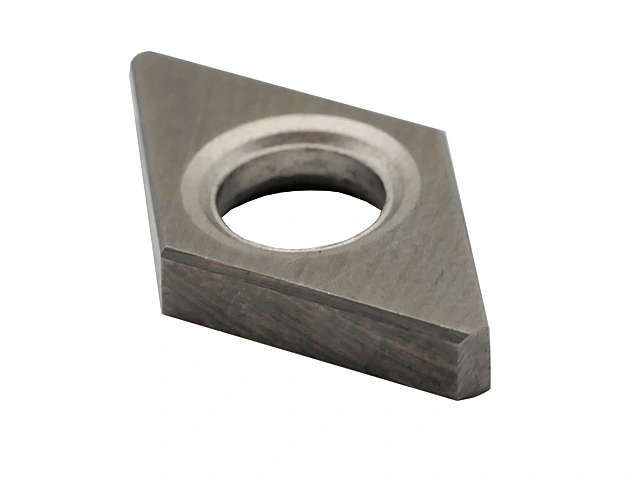

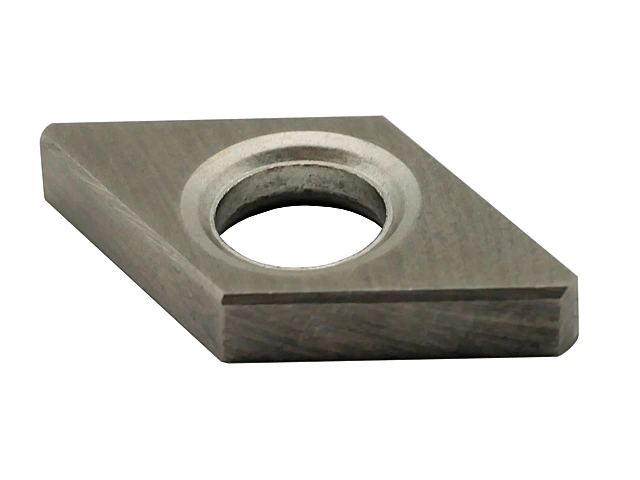

Support plate | diamond shape 55 degrees | for DNGG, DNMG inserts (SHPD1504)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$6.91
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.62
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHPD1504
Description
Properties and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert diamond 55°

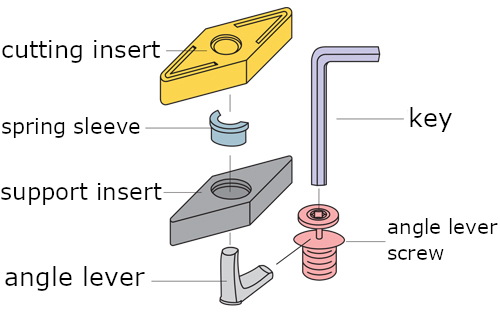

- The support plate is mounted using:
- LVP angle lever - in the P clamping system
- The hole for the pin is secured using SPP4 spring sleeve
Technical data:

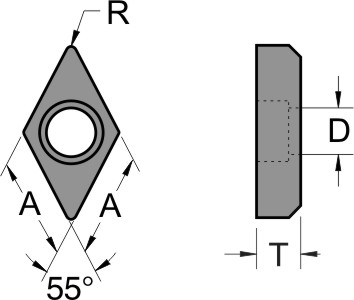

| Parameter | Value | Unit. |
|---|---|---|
| A | 13.5 | mm |
| R | 0.8 | mm |
| T | 3.2 | mm |
| D | 6.9 | mm |
System mounting
| The SHPD1504 shim fits: | ||
| cutting inserts | indexable turning tools | |
| external: | internal: | |
| DNMG 150404 NN PVD | PDJNR/L 2020K15 | S32S-PDSNR/L15 |
| DNMG 150408 NN PVD | PDJNR/L 2525M15 | S40T-PDSNR/L15 |
| DNMG 150408 DM TS15C | PDJNR/L 3232P15 | S32S-PDUNR/L15 |
| DNMG 150412 NN PVD | PDJNR/L 2020K15-3 | S40T-PDUNR/L15 |
| DNMG 150412 DM TS15C | PDJNR/L 2525M15-3 | |
| DNMG 150412 DM TK10C | PDJNR/L 3232P15-3 | |
| DNMG 150604 NN PVD | PDNNR/L 2020K15 | |
| DNMG 150608 NN PVD | PDNNR/L 2525M15 | |
| DNMG 150608 DF TP15C | PDNNR/L 3232P15 | |
| DNMG 150608 DM TP25C | PDNNR/L 2020K15-3 | |
| DNMG 150608 DM TS15C | PDNNR/L 2525M15-3 | |
| DNMG 150608 DM TK10C | PDNNR/L 3232P15-3 | |
| DNMG 150612 NN PVD | ||
| DNMG 150612 DM TP25C | ||
| DNMG 150612 DM TK10C | ||
| DNMG 150612 DM TS15C | ||
