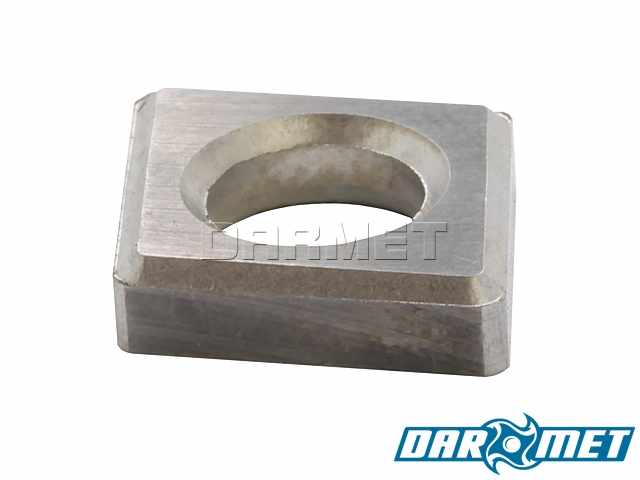

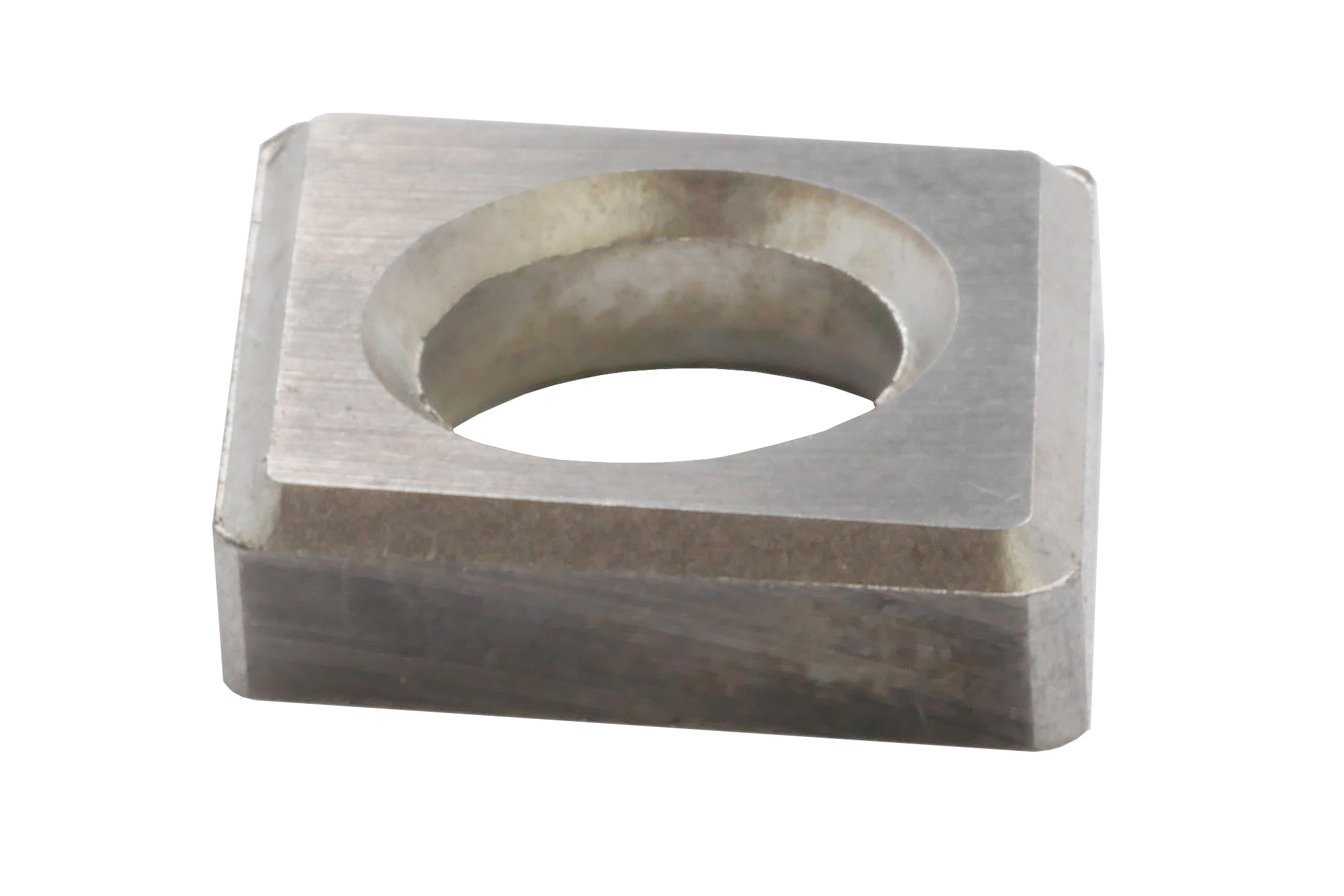

Support plate | rhombus shape 80 degrees | for CNMA, CNMG, CNMP inserts (SHPC1204B)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$6.91
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.62
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHPC1204B
Description
Properties and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is rhombic
- The support plate is mounted using:
- LVP4 angle lever - in the P clamping system
- The pin hole is secured using SPP4 spring sleeve
Technical data:
| Parameter | Value | Unit. |
|---|---|---|
| A | 12.45 | mm |
| R | 1.2 | mm |
| T | 3.2 | mm |
| through hole | 7 | mm |
Mounting system
| The SHPC1204B shim fits: | ||
| cutting inserts | indexable turning tools internal: | |
| CNMA 120416 NN PVD | S32S-PCLNR/L12 | |
| CNMG 120404 NN PVD | S40T-PCLNR/L12 | |
| CNMG 120404 DF TP15C | S50U-PCLNR/L12 | |
| CNMG 120404 DF TS15C | ||
| CNMG 120408 NN PVD | ||
| CNMG 120408 DF TP15C | ||
| CNMG 120408 DF TS15C | ||
| CNMG 120408 DMR TP15C | ||
| CNMG 120408 DMR TP25C | ||
| CNMG 120408 DMR TP40C | ||
| CNMG 120408 DMR TK10C | ||
| CNMG 120412 NN PVD | ||
| CNMG 120412 DMR TP15C | ||
| CNMG 120412 DMR TP25C | ||
| CNMG 120412 DMR TK10C | ||
| CNMG 120416 DMR TP25C | ||
| CNMP 120408 NN PVD | ||
| CNMP 120412 NN PVD | ||
