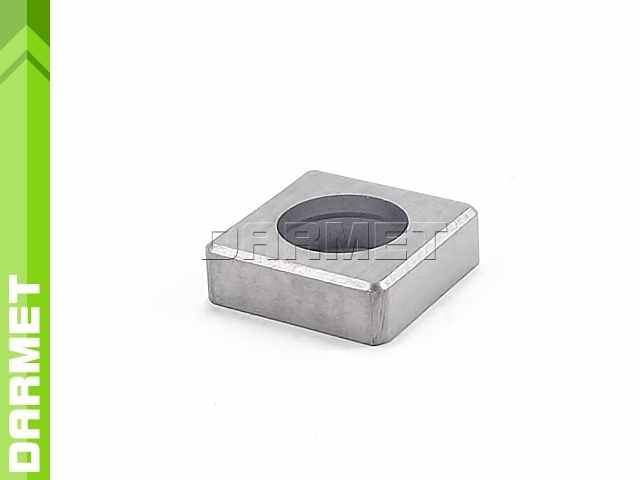

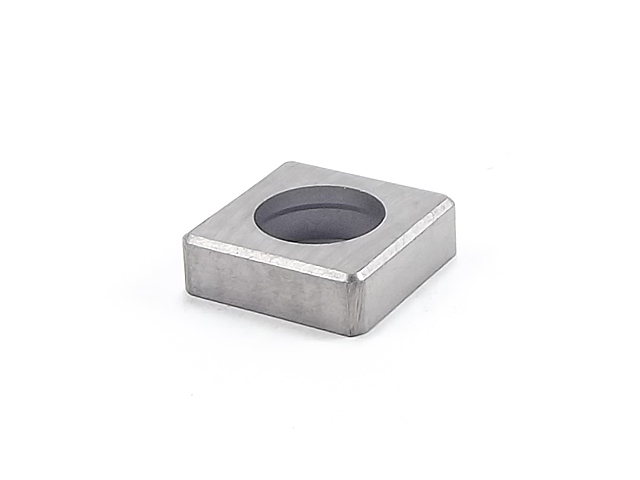

Support plate | square shape | for SNMG inserts (SHMS1204)
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$6.91
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.62
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMS1204
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is square

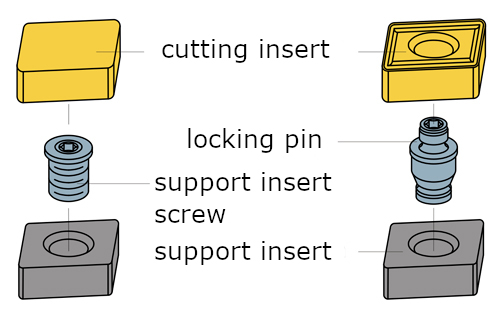

- The support plate is mounted using:
- CLM mounting pin - in the M mounting system
- screws for the support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit. |
|---|---|---|
| A | 12.4 | mm |
| R | 0.8 | mm |
| T | 4.8 | mm |
| D | 7.3 | mm |
Fixing system
| Support plateSHMS1204 fits: | ||
| Cutting inserts | Indexable turning tools | |
| external: | internal: | |
| SNMG 120408 NN PVD | MSBNR/L 2020K12 | S32S-MSKNR/L12 |
| SNMG 120408 DM TP25C | MSBNR/L 2525M12 | S40T-MSKNR/L12 |
| SNMG 120408 DM TS15C | MSBNR/L 3225P12 | |
| SNMG 120408 DM TK10C | MSRNR/L 2020K12 | |
| SNMG 120412 NN PVD | MSRNR/L 2525M12 | |
| SNMG 120412 DM TP25C | MSRNR/L 3225P12 | |
| SNMG 120412 DM TK10C | MSKNR/L 2020K12 | |
| SNMG 120412 TP25C | MSKNR/L 2525M12 | |
| MSKNR/L 3225P12 | ||
| MSDNN 2020K12 | ||
| MSDNN 2525M12 | ||
| MSDNN 3225P12 | ||
| MSSNR/L 2020K12 | ||
| MSSNR/L 2525M12 | ||
| MSSNR/L 3225P12 | ||
| MSSNR/L 3232P12 | ||
| CSKNR/L 2020K12 | ||
| CSKNR/L 2525M12 | ||
| CSKNR/L 3225P12 | ||
| CSDNN 2020K12 | ||
| CSDNN 2525M12 | ||
| CSDNN 3225P12 | ||
| CSRNR/L 2020K12 | ||
| CSRNR/L 2525M12 | ||
| CSRNR/L 3225P12 | ||
| DSBNR/L 2020K12 | ||
| DSBNR/L 2525M12 | ||
| DSBNR/L 3232P12 | ||
| DSDNN 2020K12 | ||
| DSDNN 2525M12 | ||
| DSDNN 3232P12 | ||
| DSSNR/L 2020K12 | ||
| DSSNR/L 2525M12 | ||
| DSSNR/L 3232P12 | ||
| DSKNR/L 2020K12 | ||
| DSKNR/L 2525M12 | ||
| DSKNR/L 3232P12 | ||
