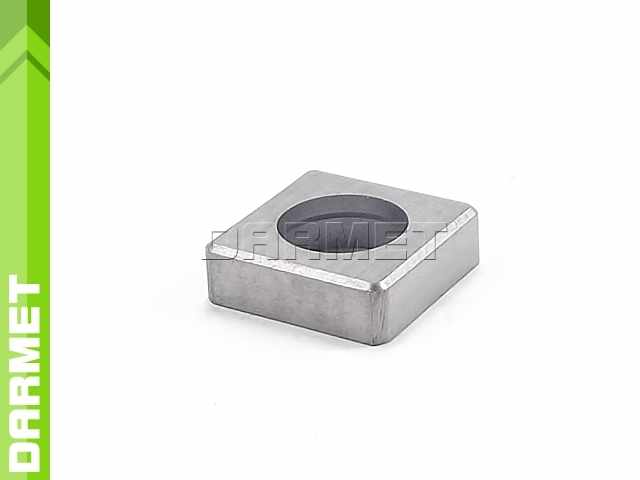

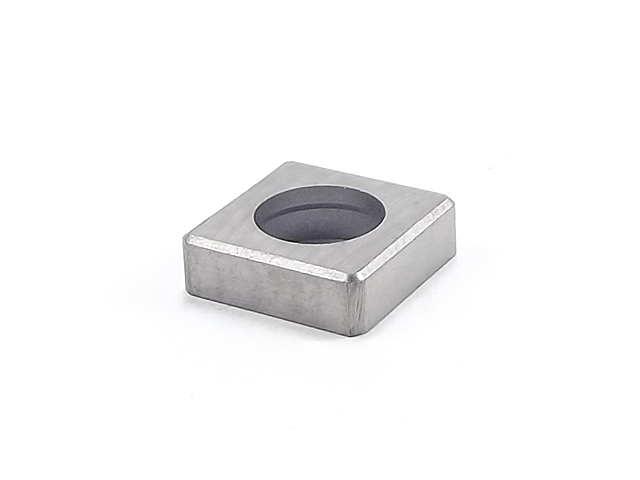

Support plate | square shape | for SNMG inserts (SHMS1904)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$11.52
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$9.37
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMS1904
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert is square
- The support plate is mounted using:
- CLM mounting pin - in the M mounting system
- screws for the support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| A | 19.7 | mm |
| R | 0.8 | mm |
| T | 4.8 | mm |
| D | 11.3 | mm |
Fixing system
| Support plate SHMS1904 fits: | |
| Cutting inserts | External indexable turning tools |
| SNMG 190612 NR PVD | MSBNR/L 3232P19 |
| SNMG 190616 NR PVD | MSBNR/L 4040R19 |
| SNMG 190612 DM TP25C | MSRNR/L 3232P19 |
| MSRNR/L 4040R19 | |
| MSKNR/L 3232P19 | |
| MSKNR/L 4040R19 | |
| MSDNN 3232P19 | |
| MSDNN 4040R19 | |
| MSSNR/L 3232P19 | |
| MSSNR/L 4040R19 | |
