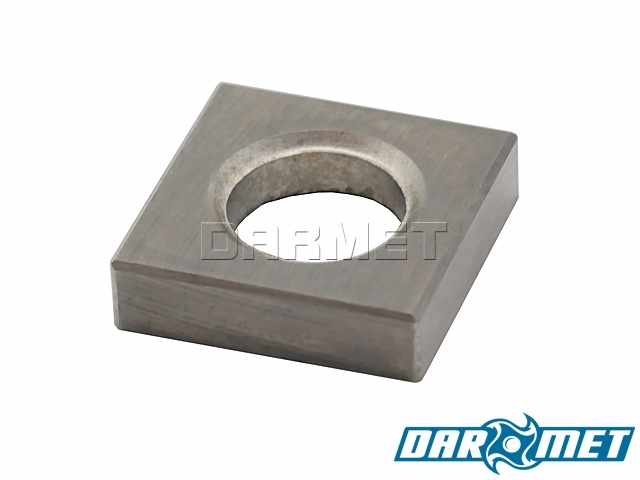

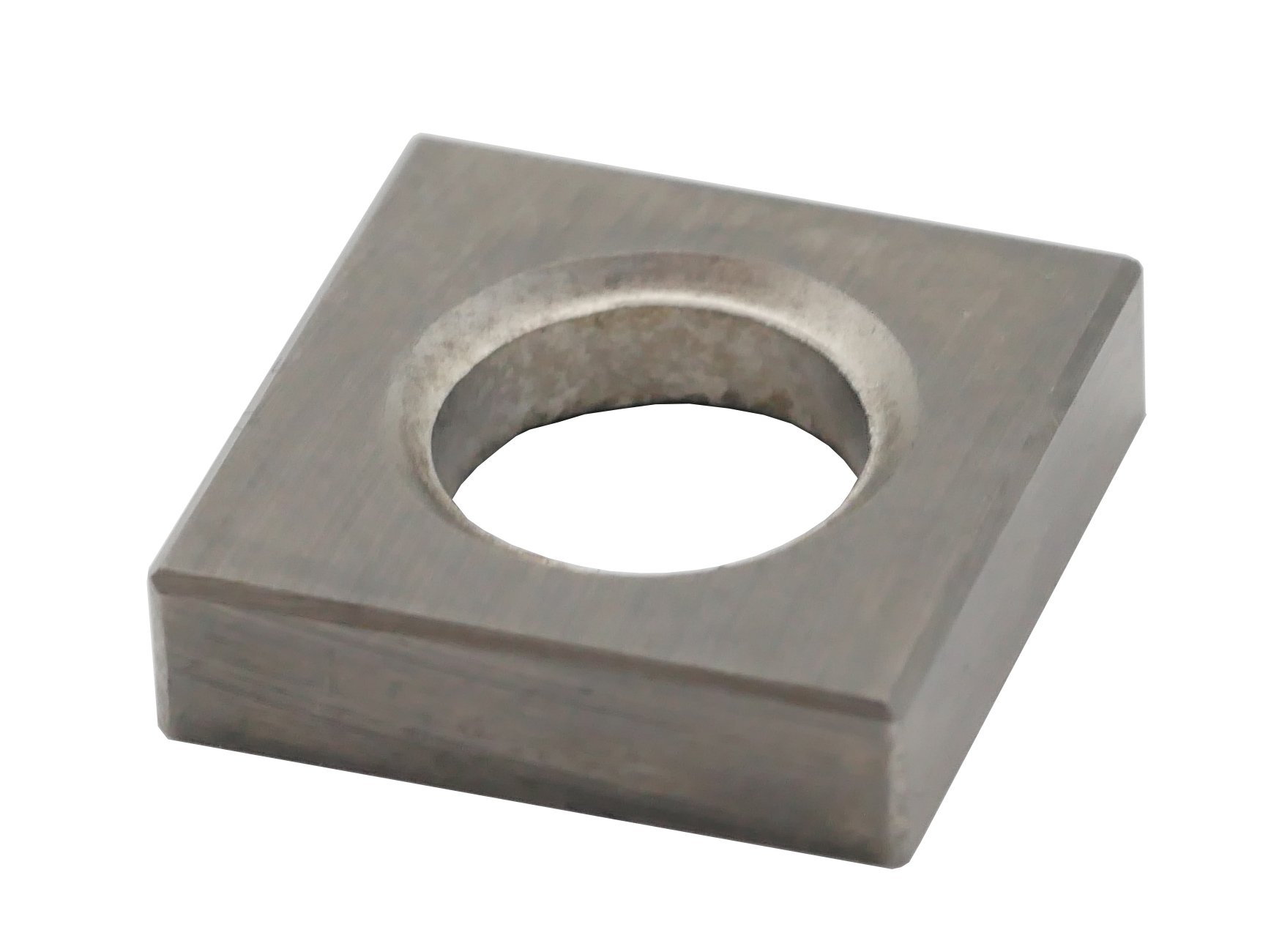

Support plate | square shape | for cutting inserts SNMG, SNMM (SHPS1204)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$6.91
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.62
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHPS1204
Description
Properties and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the plate is square

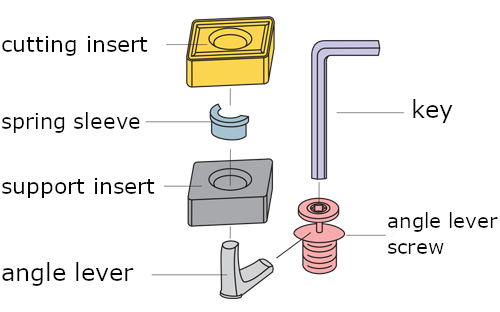

- The support plate is mounted using:
- LVP4 angle lever - in the P clamping system
- The hole for the pin is secured using SPP4 spring sleeve

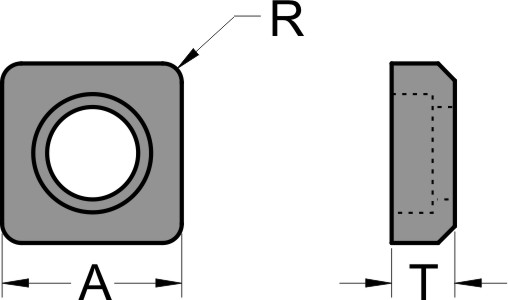

Technical data:
| Parameter | Value | Unit |
|---|---|---|
| A | 12.5 | mm |
| R | 0.4 | mm |
| T | 3.2 | mm |
| Through hole | 7 | mm |
Fixing system
SNMG 120408 SSP BP30S
| Support plate SHPS1204 fits: | ||
| cutting inserts | folding turning tools | |
| external: | internal: | |
| SNMG 120408 PVD | PSBNR/L 2020K12 | S32S-PSKNR/L12 |
| SNMG 120408 TP25C | PSBNR/L 2525M12 | S40T-PSKNR/L12 |
| SNMG 120408 TS15C | PSBNR/L 3225P12 | |
| SNMG 120408 TK10C | PSBNR/L 3232P12 | |
| SNMG 120412 PVD | PSDNN 2020K12 | |
| SNMG 120412 TP25C | PSDNN 2525M12 | |
| SNMG 120412 TK10C | PSDNN 3232P12 | |
| PSKNR/L 2020K12 | ||
| PSKNR/L 2525M12 | ||
| PSKNR/L 3232P12 | ||
| PSSNR/L 2020K12 | ||
| PSSNR/L 2525M12 | ||
| PSSNR/L 3232P12 | ||
