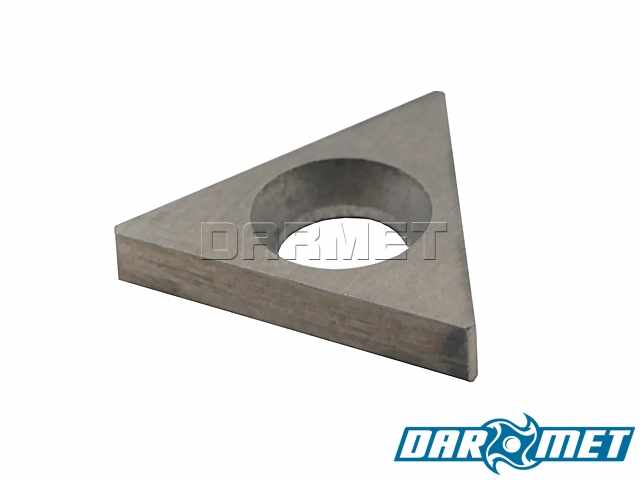

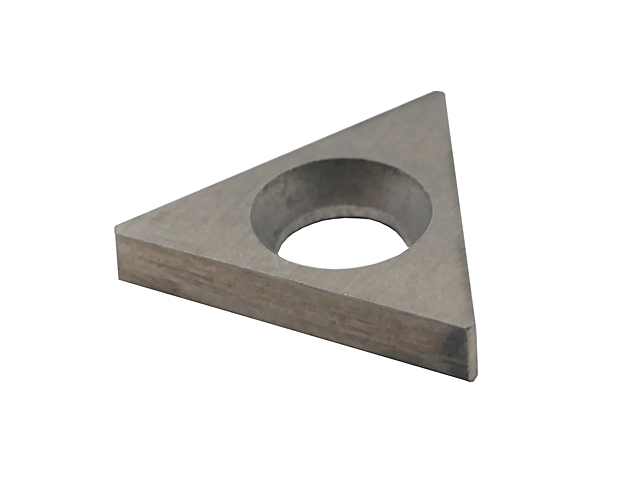

Support plate | triangle shape | 60 degrees | for TNGG, TNMG, TNMP, TNUX inserts (SHPT1604)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$5.76
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$4.68
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHPT1604
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping.
- The presence of the washer prevents the cutting insert from being pressed into the turning tool seat.
- Fits turning tools in the P clamping system.
- The shape of the insert is triangle.
- The support plate is mounted using:
- LVP3 angle lever - in the P clamping system,
- The hole for the The pin is secured with an SPP3 spring sleeve.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| A | 15.5 | mm |
| R | 0.8 | mm |
| T | 2.7 | mm |
| through hole | 5.18 | mm |
Mounting system
PTFNR/L 2020K16
| Support plate SHPT1604 fits: | ||
| cutting inserts | knives foldable lathe | |
| external: | internal: | |
| TNGG 160404 ALU PVD | PTGNR/L 1616H16 | S32S-PTFNR/L16 |
| TNMG 160404 NN PVD | PTGNR/L 2020K16 | S40T-PTFNR/L16 |
| TNMG 160404 DFM TP25C | PTGNR/L 2525M16 | |
| TNMG 160408 NN PVD | PTGNR/L 3232P16 | |
| TNMG 160408 DFM TP25C | PTFNR/L 1616H16 | |
| TNMG 160412 NN PVD | ||
| TNMG 160412 DFM TP25C | PTFNR/L 2525M16 | |
| TNMP 160408 NN PVD | PTTNR/L 1616H16 | |
| TNUX 160404 R PVD | PTTNR/L 2020K16 | |
| TNUX 160404 L PVD | ||
| TNUX 160408 R PVD | ||
| TNUX 160408 L PVD | ||
