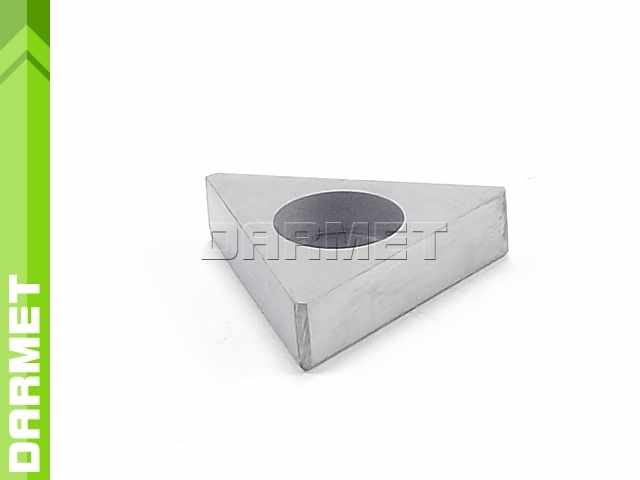

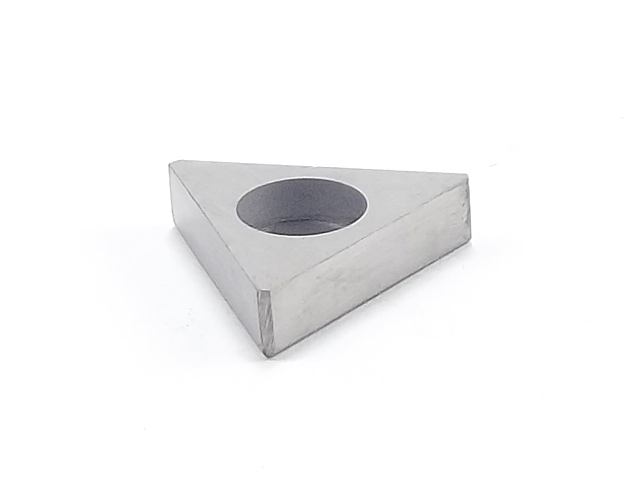

Support plate | triangular shape | for TNGG, TNMG, TNMP, TNUX inserts (SHMT1604)
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$5.76
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$4.68
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMT1604
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- Fits turning tools in the M clamping system
- The shape of the insert is triangle

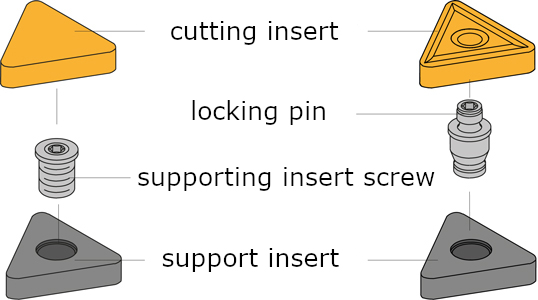

- The support plate is mounted using:
- CLM mounting pin - in the M clamping system
- screws for support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| A | 14.8 | mm |
| R | 0.8 | mm |
| T | 3.2 | mm |
| through hole | 5.9 | mm |
Fixing system
| Support plate SHMT1604 fits: | ||
| cutting inserts | knives foldable lathe | |
| external: | internal: | |
| TNGG 160404 ALU PVD | MTGNR/L 2020K16 | S32S-MTFNR/L16 |
| TNMG 160404 NN PVD | MTGNR/L 2525M16 | S40T-MTFNR/L16 |
| TNMG 160404 DFM TP25C | MTGNR/L 3225P16 | S32S-MTQNR/L16 |
| TNMG 160408 NN PVD | MTJNR/L 1616H16 | S40T-MTQNR/L16 |
| TNMG 160408 DFM TP25C | MTJNR/L 2020K16 | S32S-MTUNR/L16 |
| TNMG 160412 NN PVD | MTJNR/L 2525M16 | S40T-MTUNR/L16 |
| TNMG 160412 DFM TP25C | MTJNR/L 3225P16 | S32S-MTWNR/L16 |
| TNMP 160408 NN PVD | MTJNR/L 3232P16 | S40T-MTWNR/L16 |
| TNUX 160404 R PVD | MTJNR/L(B) 1616H16B | |
| TNUX 160404 L PVD | MTJNR/L(B) 2020K16B | |
| TNUX 160408 R PVD | MTJNR/L(B) 2525M16B | |
| TNUX 160408 L PVD | MTJNR/L(B) 3225P16B | |
| MTJNR/L(B) 3232P16B | ||
| MTFNR/L 1616H16 | ||
| MTFNR/L 2020K16 | ||
| MTFNR/L 2525M16 | ||
| MTFNR/L 3225P16 | ||
| MTFNR/L 3232P16 | ||
| MTQNR/L 2020K16 | ||
| MTQNR/L 2525M16 | ||
| MTQNR/L 3225P16 | ||
| MTENN 1616H16 | ||
| MTENN 2020K16 | ||
| MTENN 2525M16 | ||
| MTENN 3232P16 | ||
| CTJNR/L 2020K16 | ||
| CTJNR/L 2525M16 | ||
| CTUNR/L 2020K16 | ||
| CTUNR/L 2525M16 | ||
| DTGNR/L 2020K16 | ||
| DTGNR/L 2525M16 | ||
| DTGNR/L 3225P16 | ||
| DTGNR/L 3232P16 | ||
| DTFNR/L 2020K16 | ||
| DTFNR/L 2525M16 | ||
| DTFNR/L 3225P16 | ||
| DTFNR/L 3232P16 | ||
