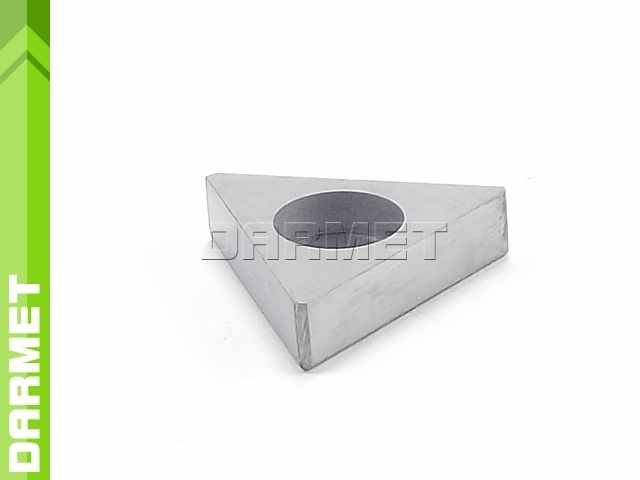

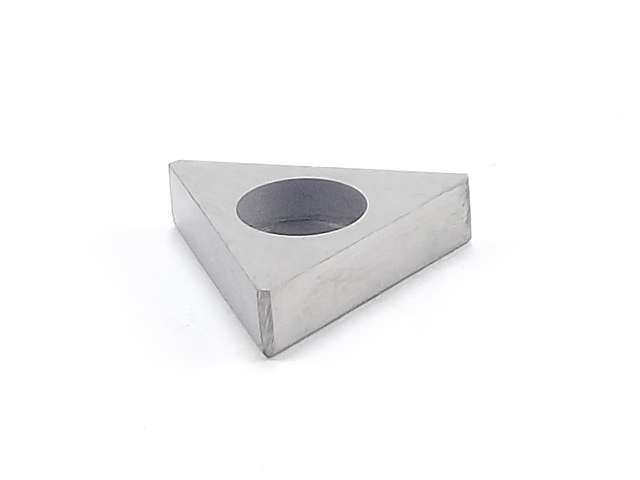

Support plate | triangular shape | for TNGG, TNMG, TNMP, TNUX inserts (SHMT2204)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$8.06
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$6.56
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMT2204
Description
Features and application:
- The support plate protects the turning tool against damage in the event of the cutting insert chipping
- The presence of the washer prevents the cutting insert from being pressed into the turning tool socket
- The shape of the insert triangle
- The support plate is mounted using:
- CLM mounting pin - in the M mounting system
- screws for the support plate - in C and D mounting systems
Technical data:
| Parameter | Value | Unit. |
|---|---|---|
| A | 20.6 | mm |
| R | 0.8 | mm |
| T | 4.77 | mm |
| D | 7.44 | mm |
MTQNR/L 2525M22
| Support plate SHMT2204 fits: | |
| Cutting inserts | External indexable turning tools |
| TNMG 220404 NN PVD | MTGNR/L 2525M22 |
| TNMG 220408 NN PVD | MTGNR/L 3232P22 |
| TNMG 220408 DM TP25C | MTJNR/L 2525M22 |
| TNMG 220412 NN PVD | MTJNR/L 3232P22 |
| MTJNR/L(B) 2525M22B | |
| MTJNR/L(B) 3232P22B | |
| MTFNR/L 2525M22 | |
| MTFNR/L 3232P22 | |
| MTQNR/L 3232P22 | |
