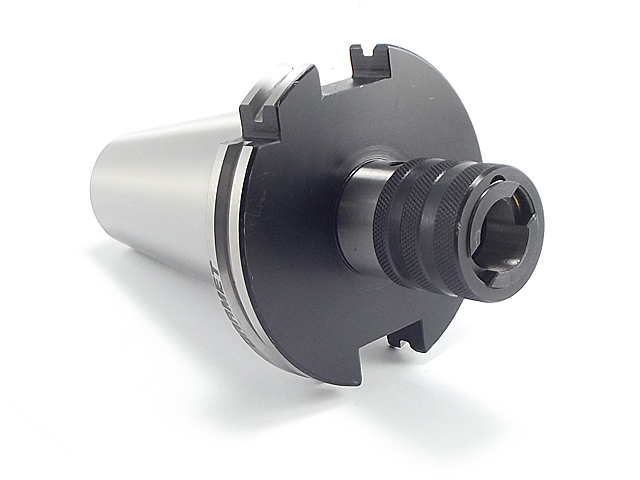

Threading holder | DIN40 chuck for quick-change inserts | thread M3 - M12 (DM-112)
Availability:
brak towaru
Gross price:
$158.93
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$129.21
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_OPR_DIN40_M3_12
Description
Values and application:
- Threading holder designed for tools with a cylindrical shank and a square shank, primarily for machine taps.
- For the DIN40 M3-M12 tapping head we use GGZD quick-change inserts with a ø19 shank, also called drivers (not included in the set).
- The head is equipped with a device for thread pitch compensation.
- Used when working on drilling machines, lathes, milling machines, numerically controlled machine tools.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| K (DIN 69871) | 40 | |
| Thread range | M3 - M12 | mm |
| D | 36 | mm |
| d2 | 19 | mm |
| D1 | 44.45 | mm |
| L1 | 64 | mm |
| Weight | 1.0 | kg |
Technical information: DIN 69871 grip
