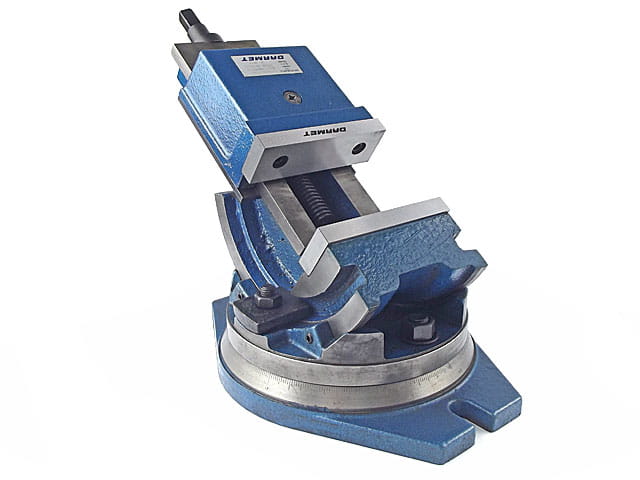

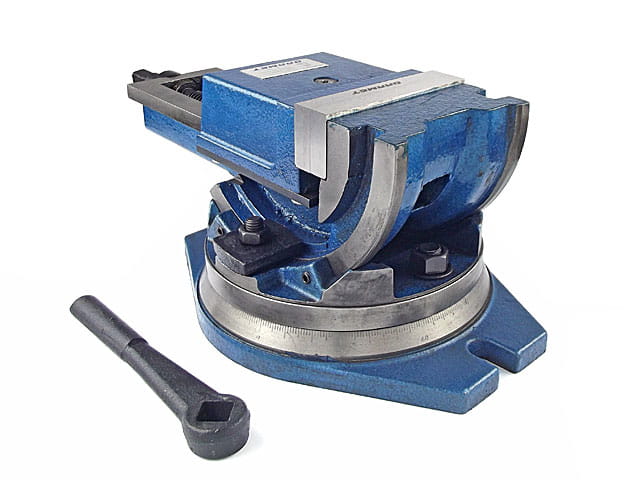

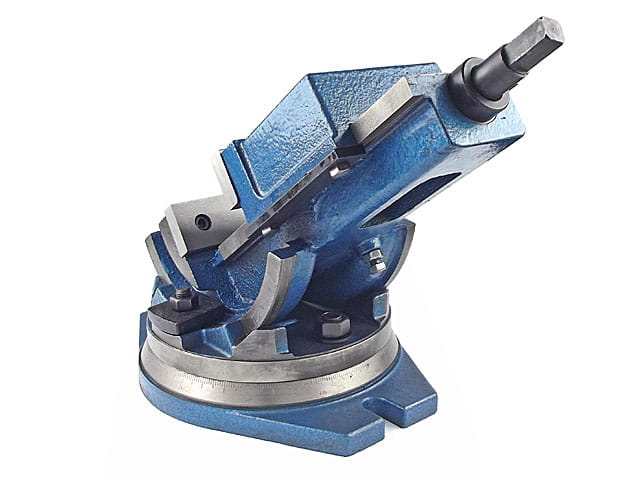

Tilting rotary rocking machine vise 2-axis 125x140 mm FQU DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$219.61
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$178.54
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FQU_125_140
Description
Information:
- Made of high-quality cast iron.

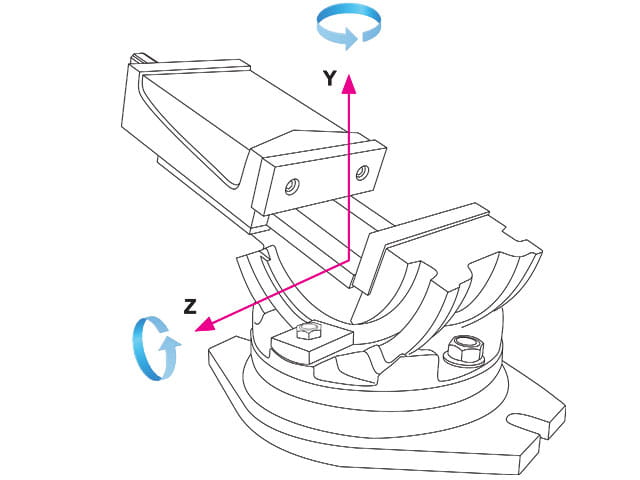

- The main advantage of the vise is its operation on two axes Y (360°) and Z (90°).
- The rotary base is detachable, and its scale division is 1°.
- Proper installation of the device on the machining table is ensured by a universal set of clamping elements.
- Only proper processing of interchangeable jaw inserts allows achieving the accuracy parameters specified in the technical documentation.
- Semi-finished products intended to be clamped above the body should be placed on parallel shims approximated in length to the width of the jaw inserts.
- Simple design solutions allow the machine to operate during light work on grinders, milling machines, or drills.
- The swivel system has stoppers that prevent the base from falling out of the guides.
- The set includes all necessary accessories for proper operation and installation.
Specification:
| Parameter | Value |
|---|---|
| S | 125 mm |
| amax | 140 mm |
| h | 45 mm |
| H | 164 mm |
| A | 228 mm |
| L | 420 mm |
| D | 18 mm |
| Weight | 27.5 kg |
