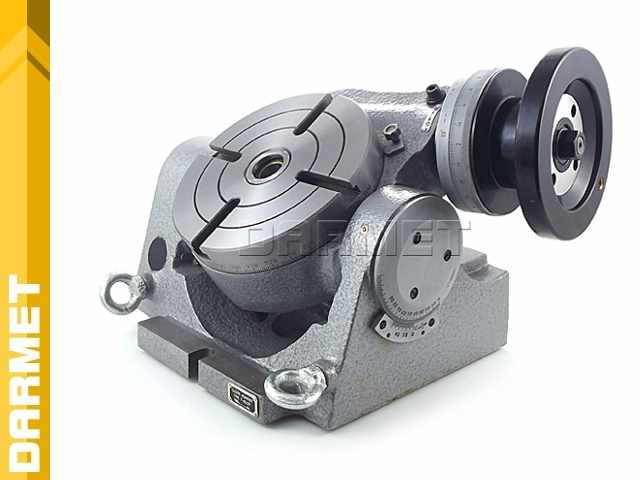

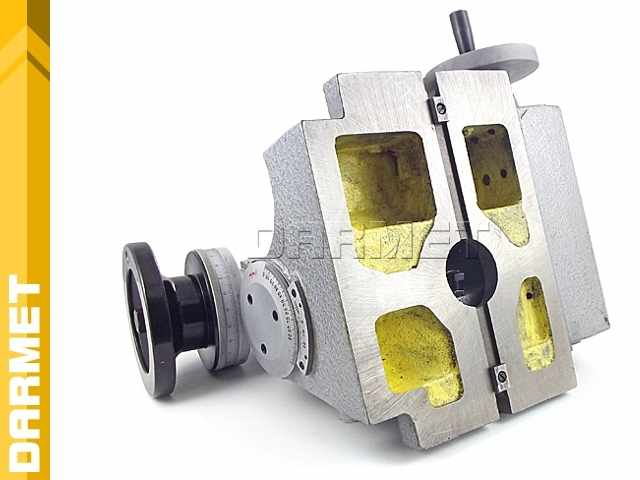

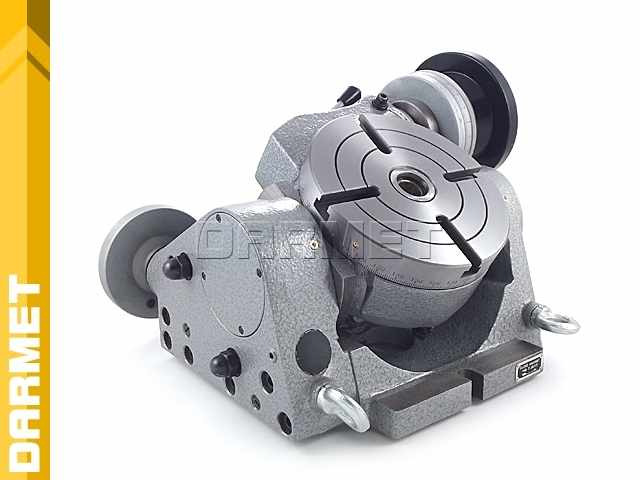

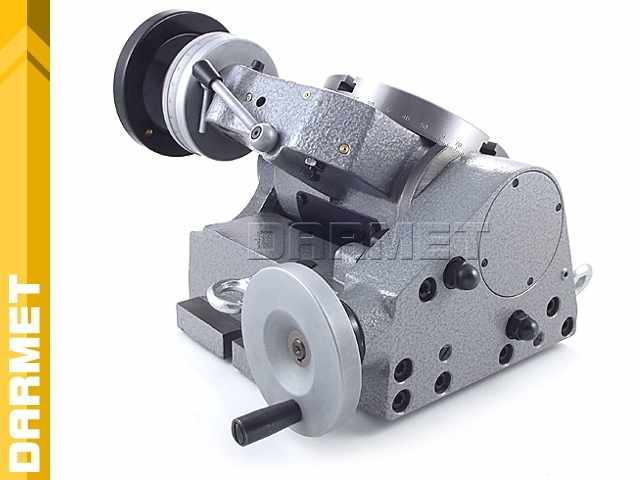

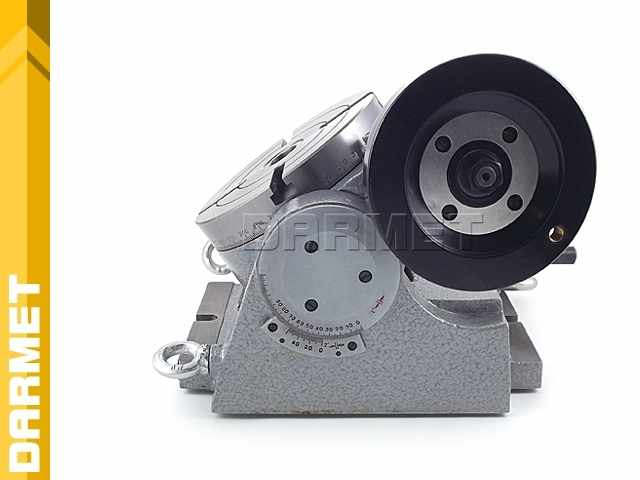

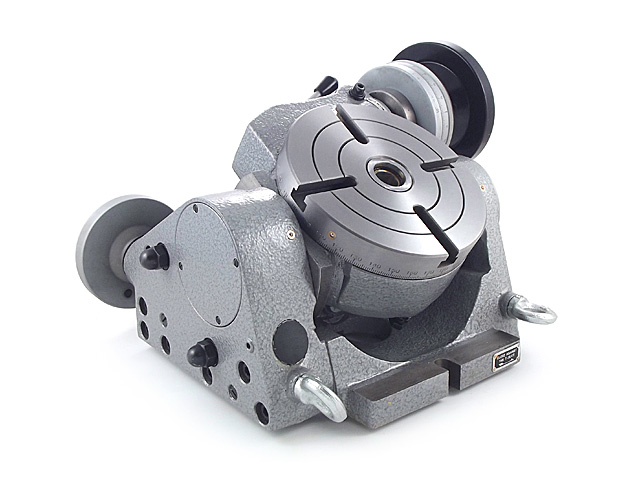

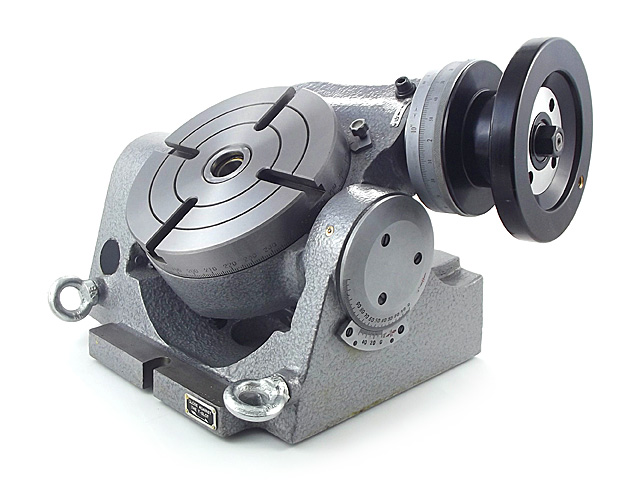

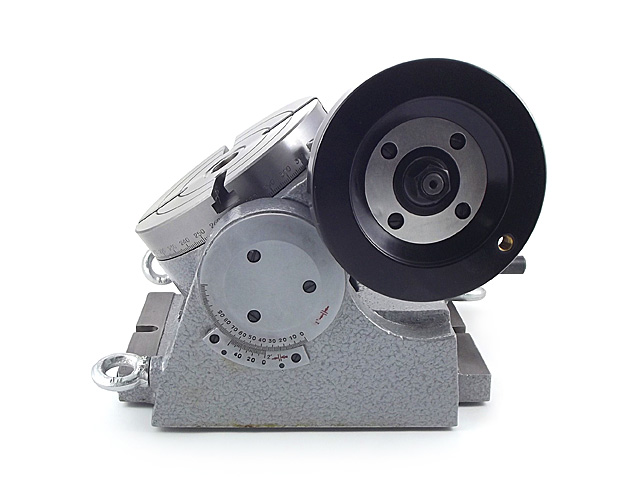

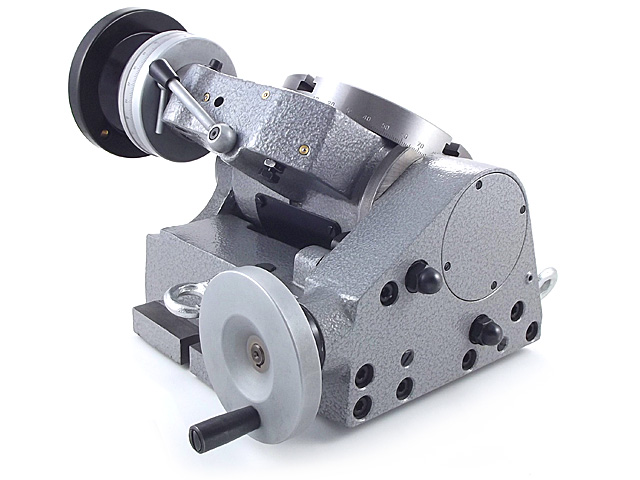

Tilting rotary table, indexing for milling machine - 160 mm
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$2,536.19
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$2,061.95
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_STOL_3441_160
Description
Features and application:
- The tilting indexing table is the basic equipment of milling, boring and drilling machines.
- Possibility of making holes and surfaces at a specific angle in one clamping.

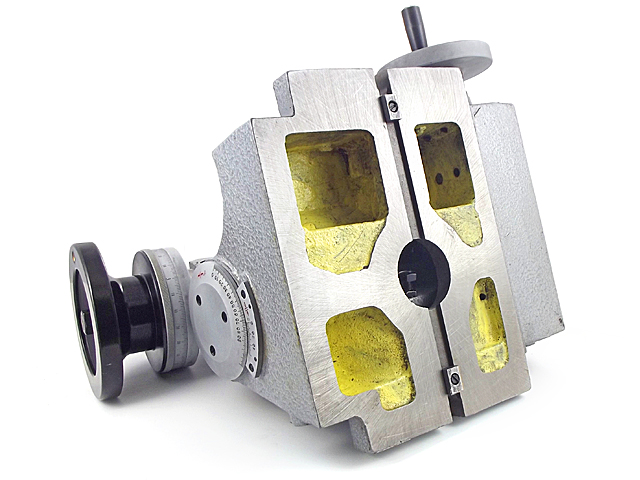

- The device can be used in a vertical position together with the tailstock.

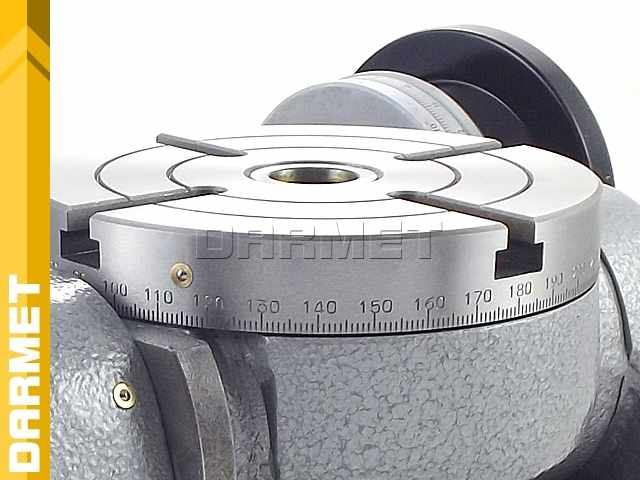

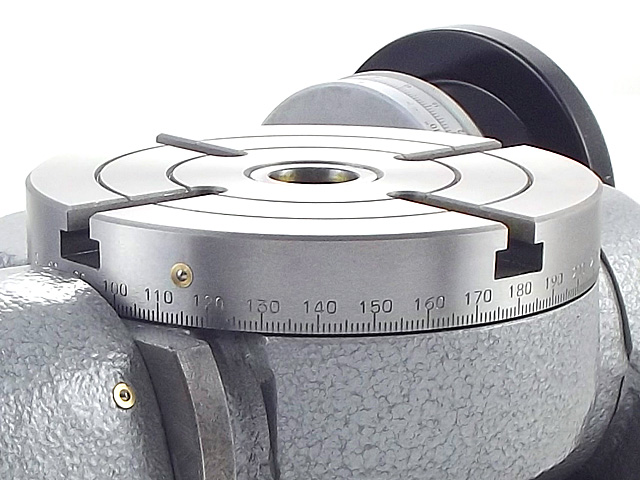

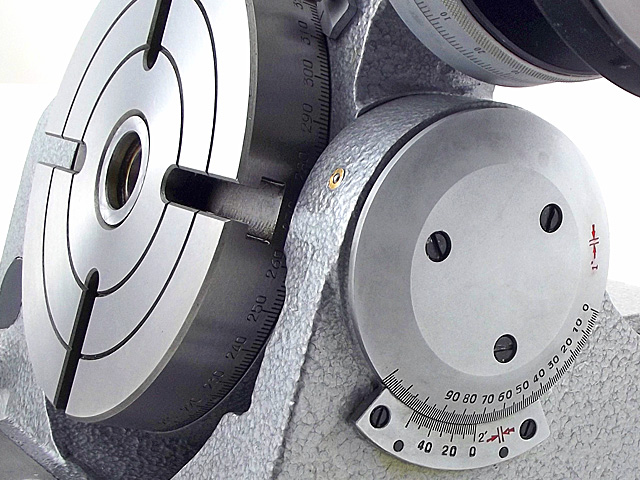

- The table has a rotating indexing plate with a 360° scale and the possibility of tilting at an angle from 0° to 90°.
- Angular spacing of keyways: 90°.
- Worm gear division: 1.5.
- Worm gear ratio: 1:90.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Morse cone | MK2 | |
| D | 160 | mm |
| H | 160 | mm |
| H1 | 100 | mm |
| L | 255 | mm |
| B | 172 | mm |
| Locating hole dimensions | ø25 x 6 | mm |
| T-slot | 10 | mm |
| Locating key | 12 | mm |

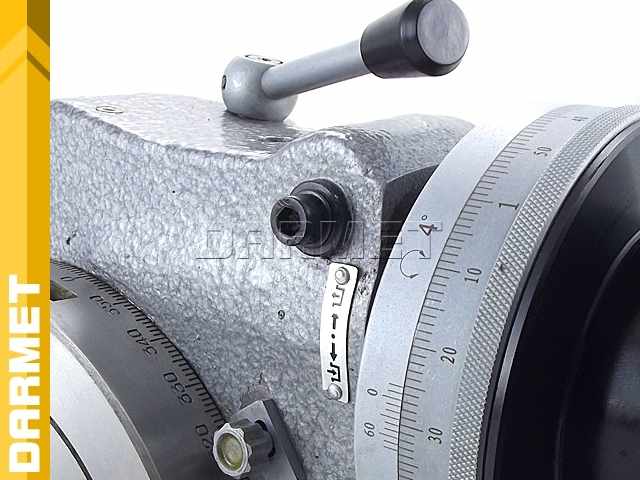

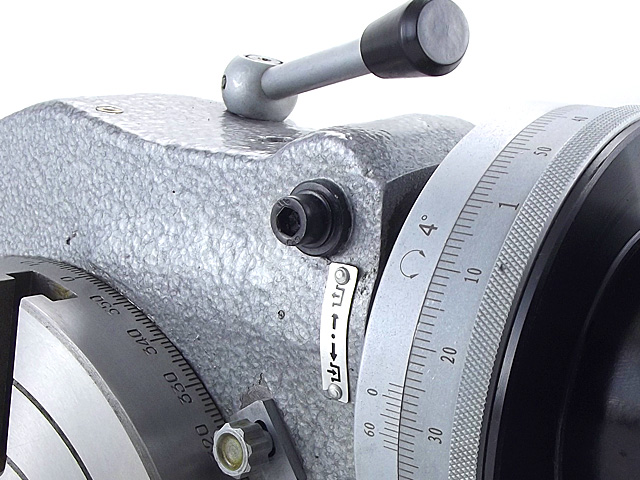

| Disc rotation angle at 1 revolution of the worm gear | 4° (1' - handwheel graduation accuracy) | |
| Table rotation vernier accuracy | 10" | |

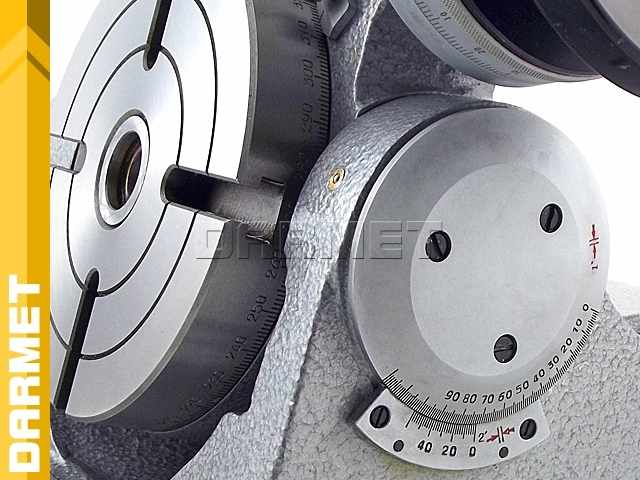

| Table tilt vernier accuracy | 2" | |
| Weight | 43.0 | kg |
