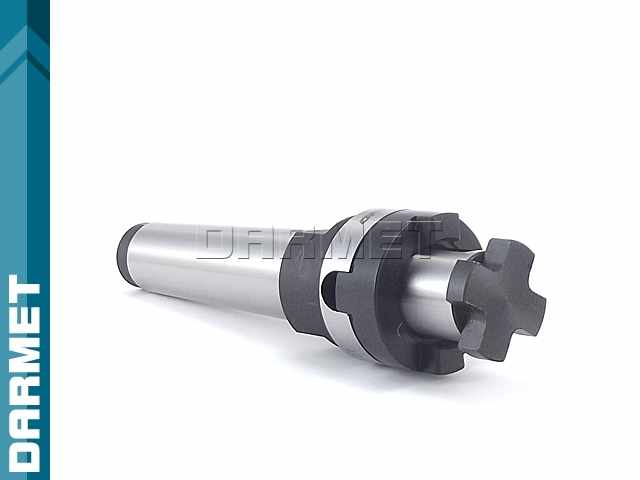

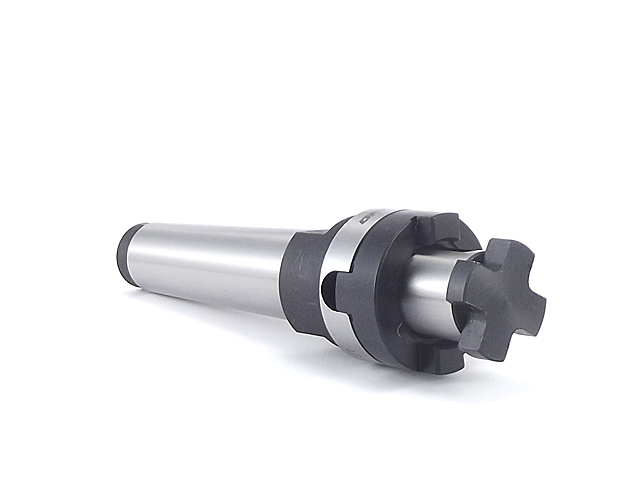

Universal Morse MK4 milling arbor - 27 mm - Darmet (DM-234)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$90.15
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$73.29
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TRZ_234_MS4_27
Description
Features and application:
- Universal milling arbor for milling cutters with a driving slot or keyway.
- MK4 Morse taper holder with internal tightening thread.
- Tapered shank, mounting pin and flange support surfaces - ground.
- Fits shell milling cutters with a shank diameter of 27 mm and milling heads folding with a 27 mm hole.

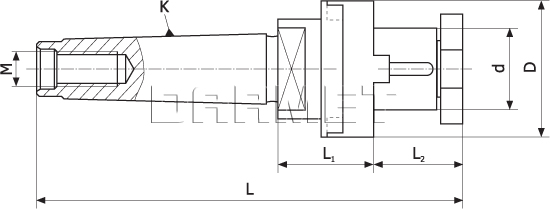

Technical data:
| Parameter | Value | Unit |
|---|---|---|
| K (Morse) | 4 | |
| d | 27 | mm |
| L | 187 | mm |
| L1 | 51 | mm |
| L2 | 21 | mm |
| D | 48 | mm |
| Thread | M16 | |
| Weight | 1.6 | kg |
Technical information: Morse shank (DIN228)
Equipment:
| Arbor | 1 pc. |
| Key | 1 pc. |
| Driving ring | 1 pc. |
| Cutter clamping screw | 1 pc. |
| Special key | 1 pc. |
