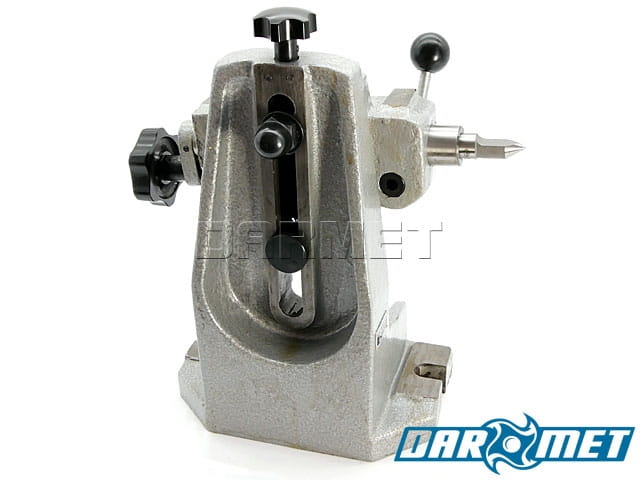

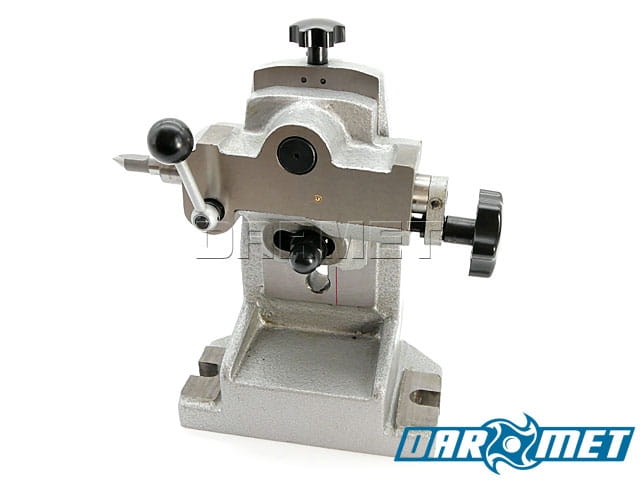

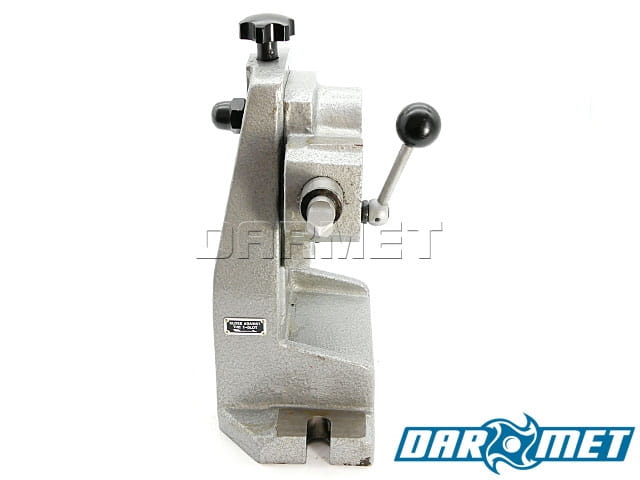

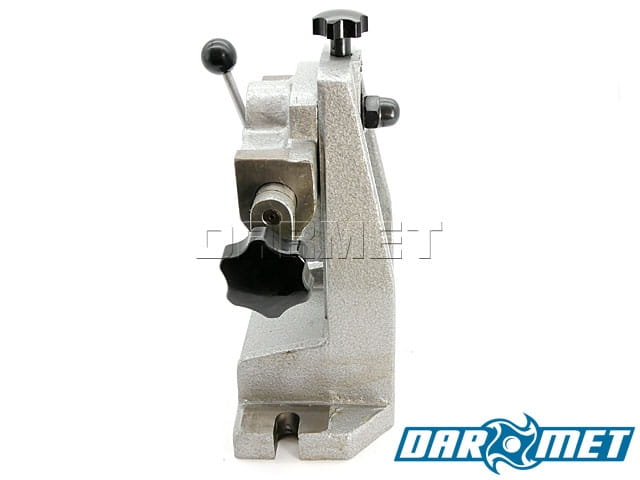

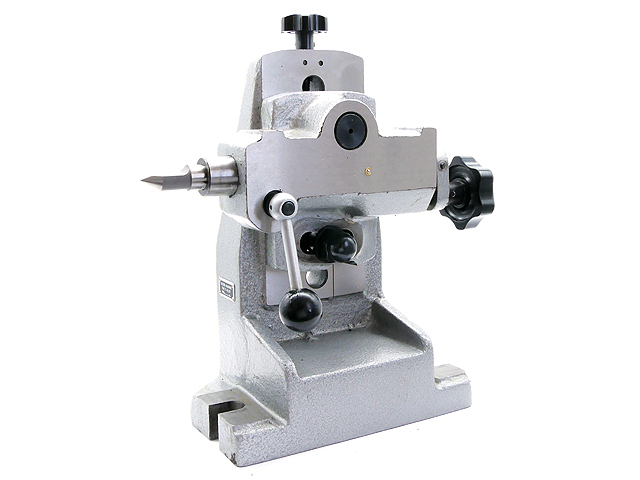

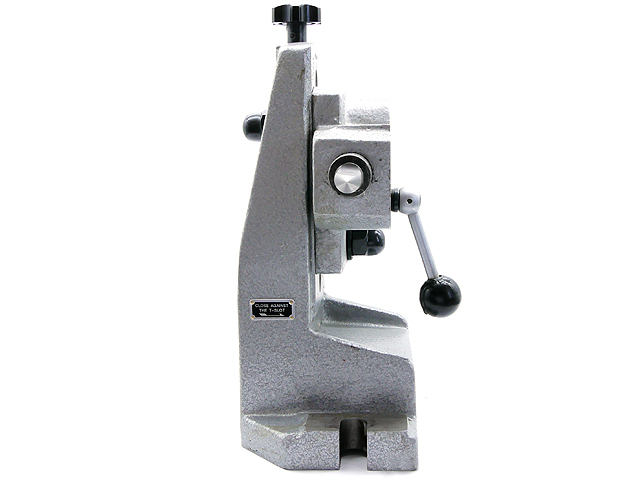

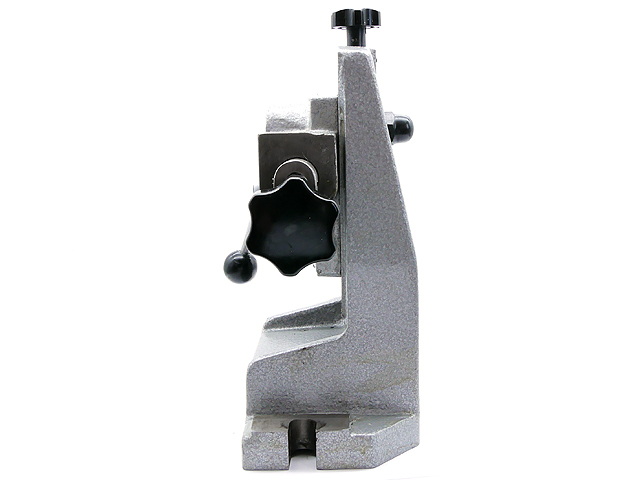

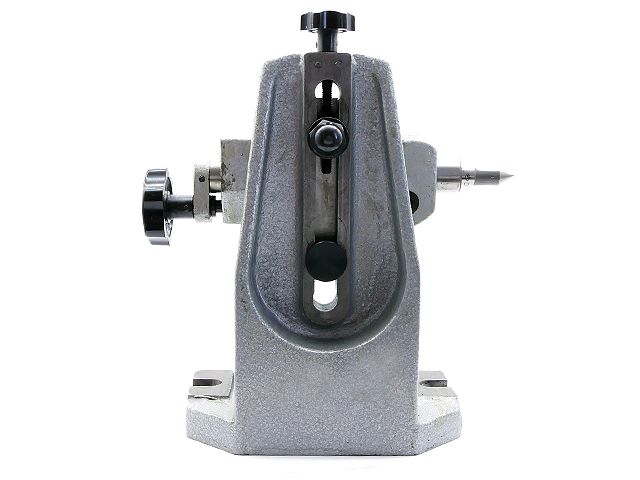

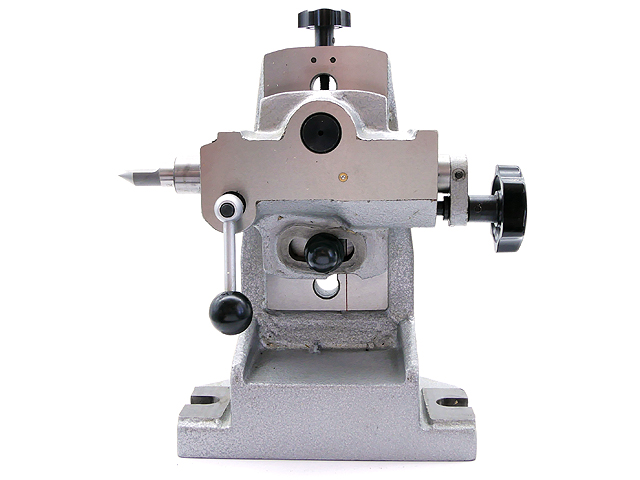

Universal adjustable steady rest tilting - DARMET (WZK224)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
"The adjustable height and angle of the center distinguish this device from others. Using our tailstocks, you can freely clamp any element in the dividing head and ensure a stable, play-free and deviation-free fixing of the workpiece for processing."
Features and applications:
- Universal tailstock with axial and angular adjustment.
- The device is intended for use in a set mainly with dividing tables.
- 60° center with a chamfer, which provides additional clearance for processing from the front of the workpiece.

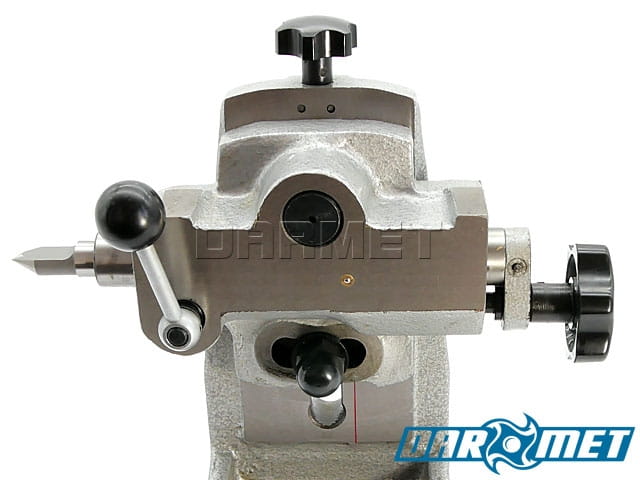

- The knob extends and retracts the center and raises and lowers its position on the axis.
- Angle The axis of the tailstock is set using a screw at the back of the tailstock.
- The set also includes locating stones, which stabilize the device on tables.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Minimum height of the tailstock | 180 | mm |
| Maximum height of the tailstock | 224 | mm |
| Angular deviation | 11° | |
| Maximum clamped workpiece length | 100 | mm |
| Groove for locating stone | 18 | mm |
| Morse taper socket for tailstock | MS2 |
