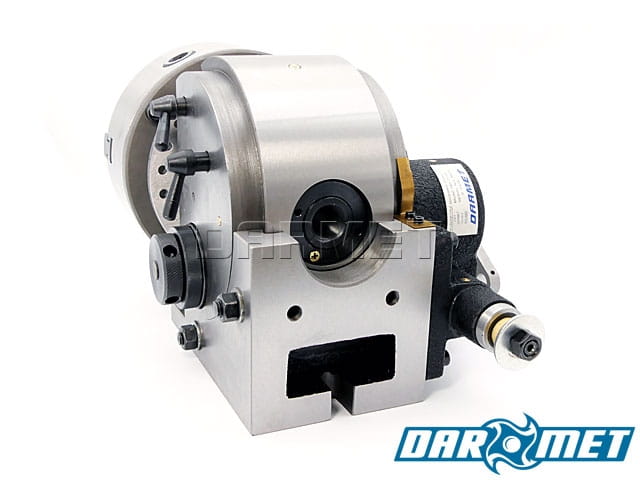

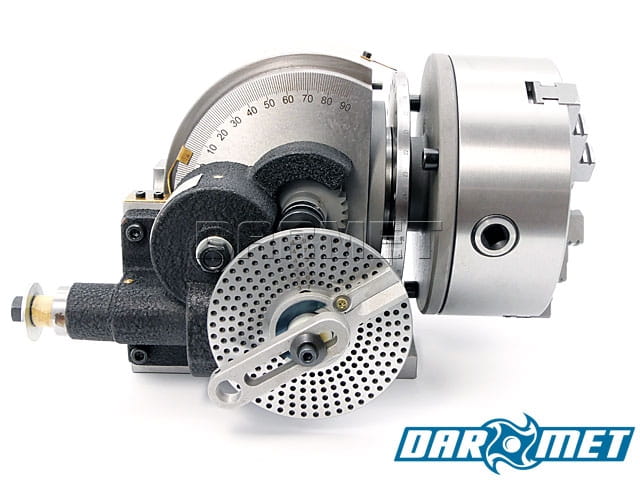

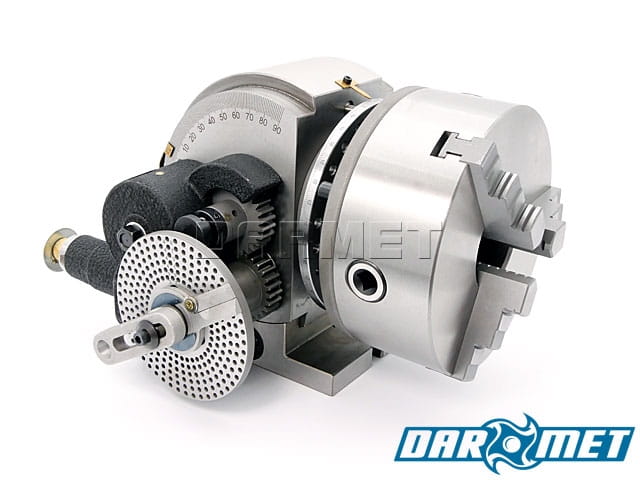

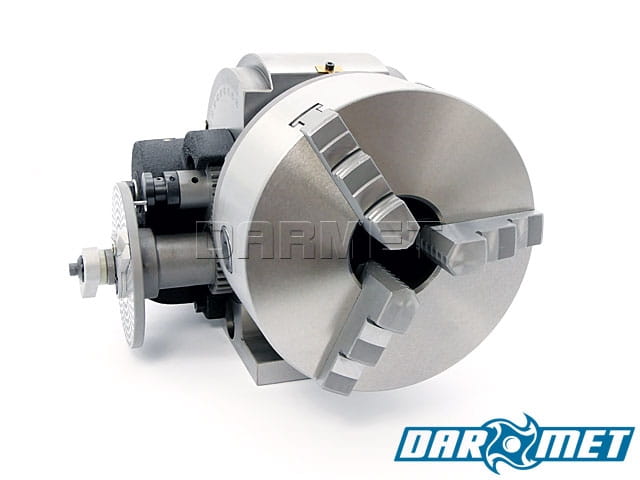

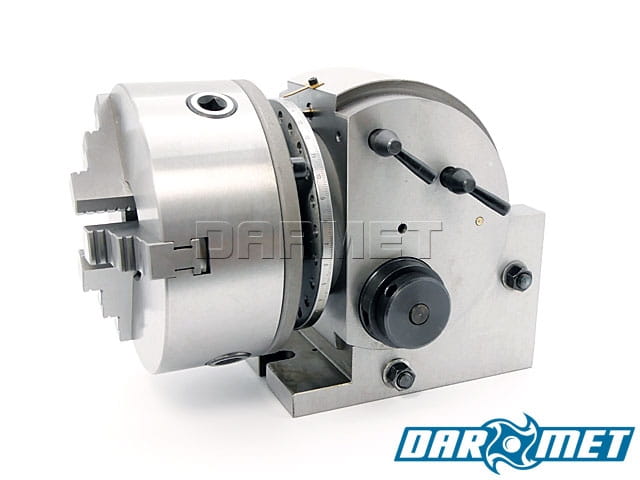

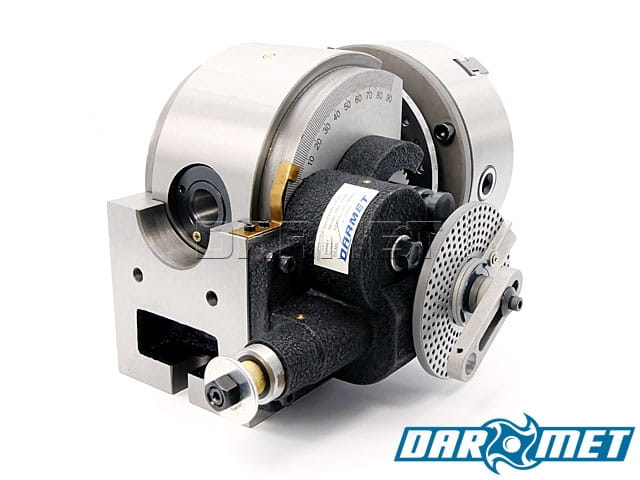

Universal dividing head with 200 mm lathe chuck - DARMET (DM-2732)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$1,592.83
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$1,294.98
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_URZ_2732
Description
Features and application:
- The universal dividing head is designed for milling, reaming, grinding, boring, routing and other work related to turning a workpiece to a given size.
- Provides precise direct, straight and differential division.
- The head enables precise cutting of spiral grooves.
- The spindle axis can be set at an angle from 90° to -10° from the horizontal.
- The worm gear ratio is 1:40.
- Lathe chuck size 200 mm.

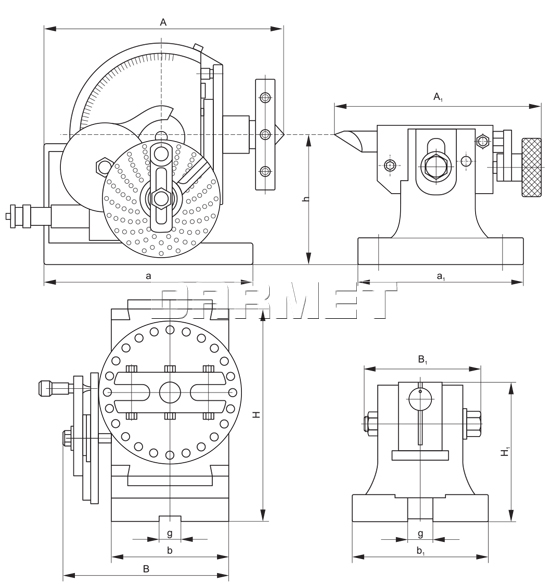

Technical data of the dividing head:
| Parameter | Value |
|---|---|
| A | 365 mm |
| B | 272 mm |
| H | 236 mm |
| h | 135 mm |
| a | 213 mm |
| b | 134 mm |
| g | 16 mm |
| Morse cone | MK4 |
| A1 | 183 mm |
| B1 | 88 mm |
| H1 | 156 mm |
| h | 135 mm |
| a1 | 175 mm |
| b1 | 124 mm |
| g1 | 16 mm |
| Handle internal diameter | 65 mm |

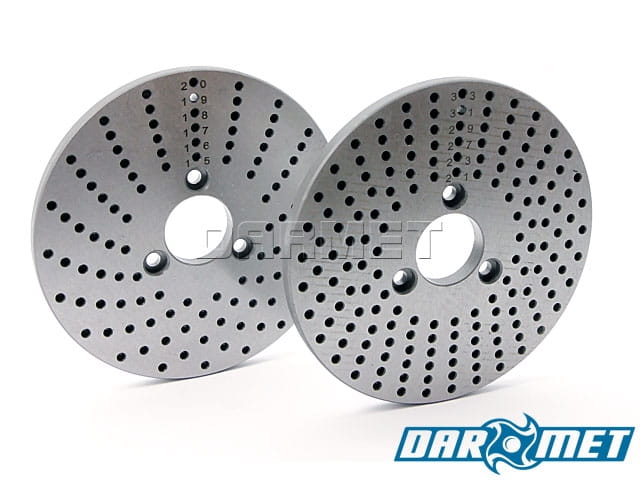

Division discs:
| Division disc | Number of holes on the circle | |||||
|---|---|---|---|---|---|---|
| A | 15 | 16 | 17 | 18 | 19 | 20 |
| B | 21 | 23 | 27 | 29 | 31 | 33 |
| C | 37 | 39 | 41 | 43 | 47 | 49 |

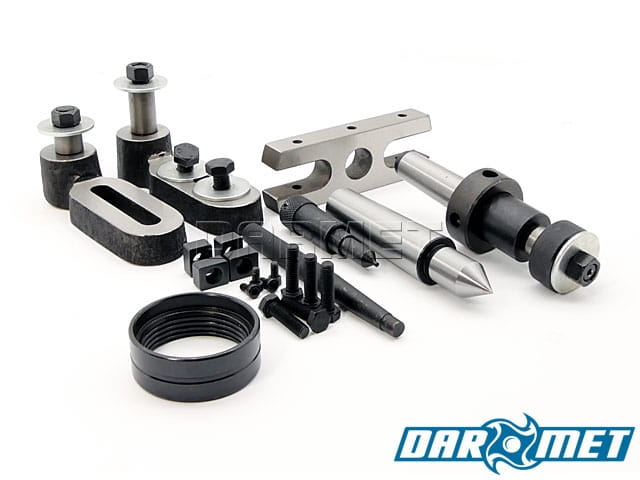

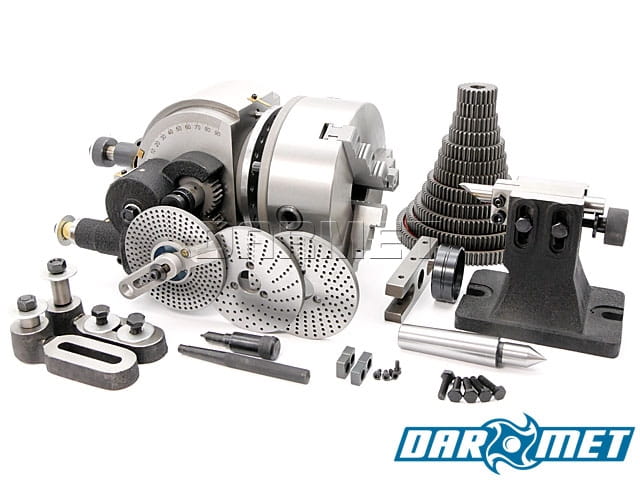

Equipment:
| Lathe chuck | 1 pc. |
| Divider | 1 pcs. |

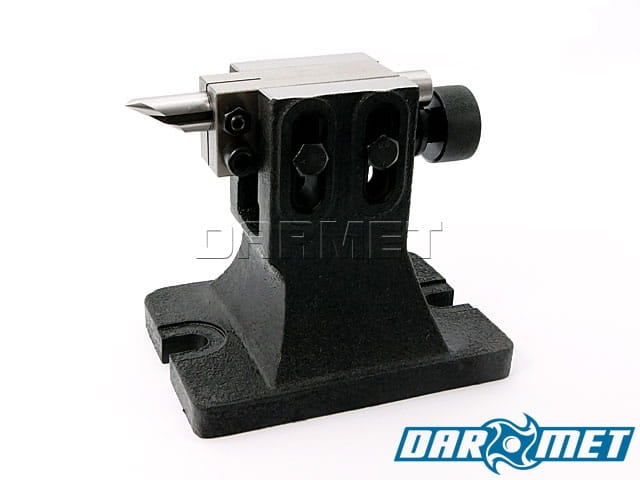

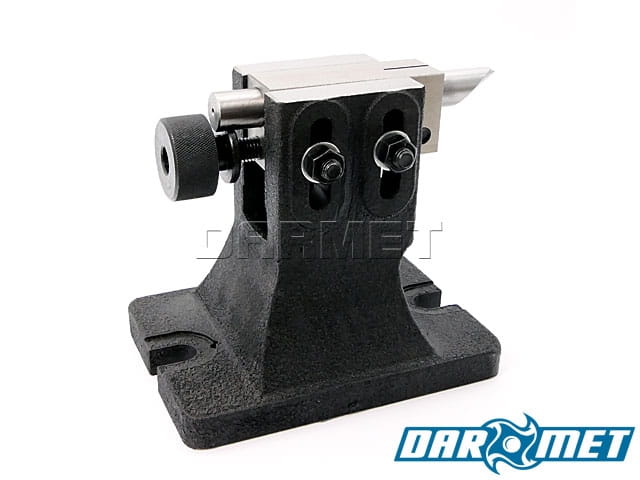

| Tailstock | 1 pc. |
| Division plates | 3 pcs. |

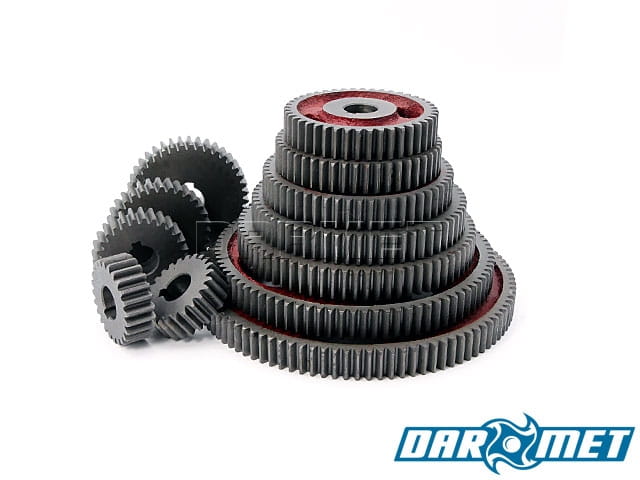

| Gears | 12 pcs. |
| Sprockets | 2 pcs. |
| Arm | 1 pc. |
| Center | 1 pc. |
| Adapter | 1 pc. |
| Pin | 2 pcs. |
