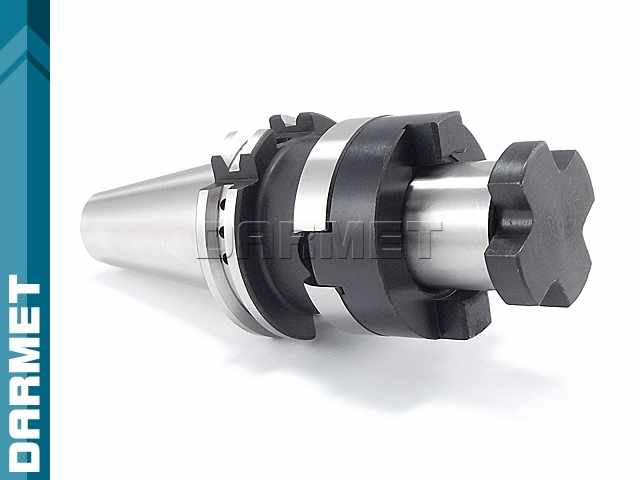

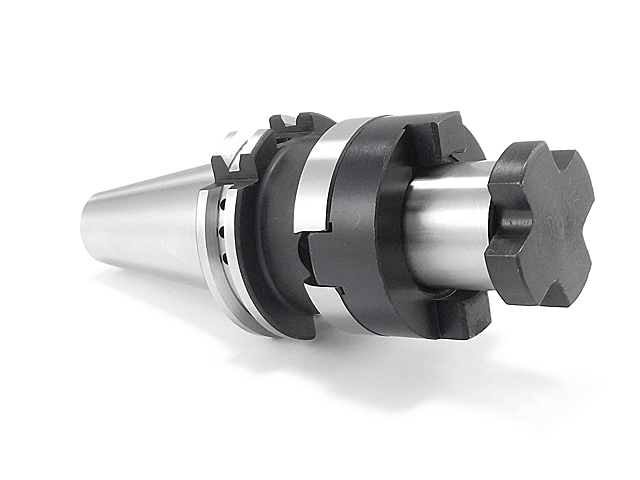

Universal milling arbor DIN40 - 32 mm - Darmet (DM-396)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$68.84
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$55.97
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_396_DIN40_32_60
Description
Values and application:
- Milling arbor with a keyway for milling cutters with a longitudinal slot.
- Includes a driving ring for milling cutters with a transverse slot.
- The arbor is suitable for shell milling cutters and folding heads with an internal diameter of 32 mm.
- DIN69871 taper holder with an internal tightening thread for mounting pulling tip.
- High manufacturing accuracy.
- Tapered shank and mounting pin ground.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| K (DIN 69871) | 40 | |
| d | 32 | mm |
| L1 | 60 | mm |
| L2 | 24 | mm |
| D | 58 | mm |
| D1 | 44.45 | mm |
| Thread | M16 | |
| Weight | 1.5 | kg |
Technical information: DIN 69871 grip
Equipment:
| Arbor | 1 pc. |
| Key | 1 pc. |
| Driving ring | 1 pc. |
| Cutter clamping screw | 1 pc. |
| Special key | 1 pc. |
