Universal rotating lathe center with interchangeable tips - Morse 2 (DM432)
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$120.65
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$98.09
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_KLY_DM432
Description
Information:

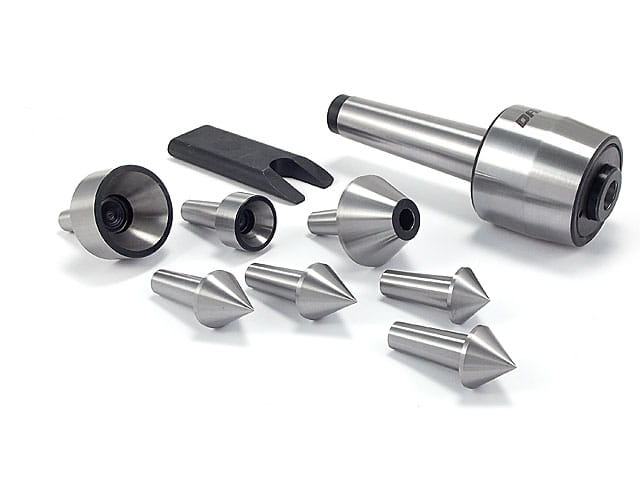

- Universal live turning center with replaceable inserts (7 pcs.).
- Increased versatility thanks to the design with a tapered socket.
- Used in the tailstock of lathes.
- Made of high-quality alloy steel.
- Working surface hardness 55 - 60 HRC.
- For general turning work, useful for piece production.

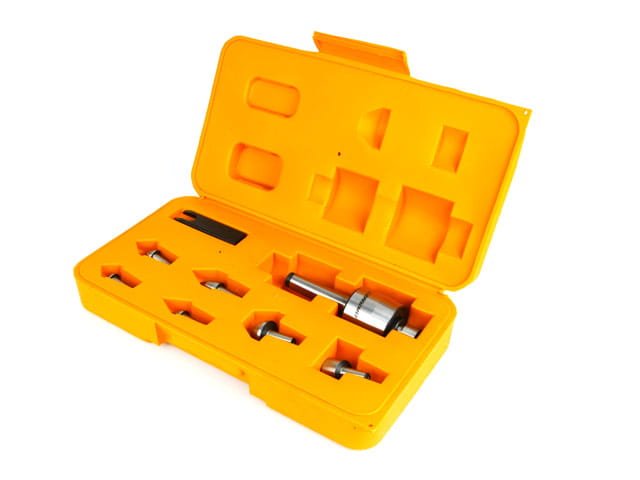

- Delivered in a case.

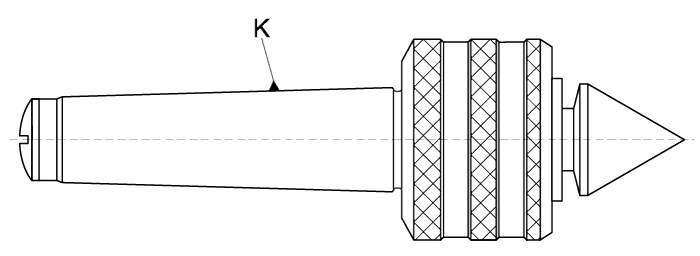

Specification:
| Parameter | Value |
|---|---|
| Morse shank | MS2 |
| D | 45 mm |
| L | 110 mm |
| Number of tips | 7 pcs. |
| Tolerance | 0.05 mm |
| Max. load | 150 kg |
| Max. speed | 4800 rpm |
| Weight | 1.3 kg |

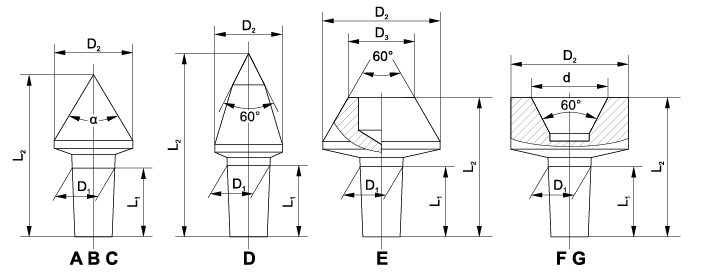

Replaceable tips:
Tip dimensions:
| Tip | D1 [mm] | L1 [mm] | D2 [mm] | L2 [mm] | d [mm] |
|---|---|---|---|---|---|
| A | 10 | 20 | 16 | 39 | |
| B | 16 | 35.5 | |||
| C | 16 | 33 | |||
| D | 16 | 46 | |||
| E | 25 | 40 | 10 | ||
| F | 16 | 36 | 10 | ||
| G | 20 | 39 | 16 |
Equipment:
| Fang rotary | 1 pc. | |
| Insert | fixed | 3 pcs. |
| extended with carbide | 1 pc. | |
| for objects without a center point | 2 pcs. | |
| for hollow bodies | 1 pc. | |
| Ejector | 1 pc. |
If you still don't know which lathe center to choose, read guide on selecting centers.
