Universal rotating lathe center with interchangeable tips - Morse 4 (DM434)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$166.06
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$135.01
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_KLY_DM434
Description
Information:

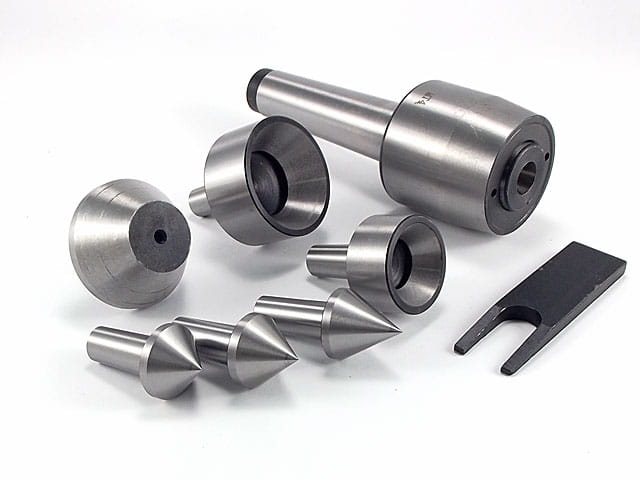

- Universal live turning center with replaceable inserts (7 pcs.).
- Increased versatility thanks to the design with a tapered socket.
- Used in the tailstock of lathes.
- Made of high-quality alloy steel.
- Working surface hardness 55 - 60 HRC.
- For general turning work, useful for piece production.

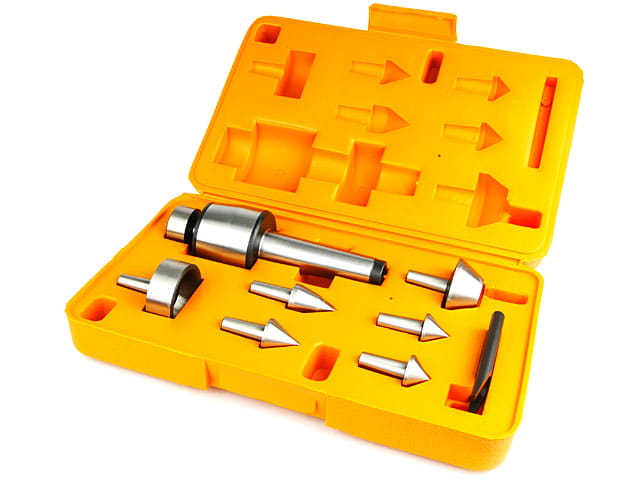

- Delivered in a case.
Specification:
| Parameter | Value | Unit |
|---|---|---|
| Morse shank | 4 | |
| D | 66 | mm |
| L | 168 | mm |
| Quantity tips | 7 | pcs. |
| Tolerance | 0,08 | mm |
| Max. load | 300 | kg |
| Max. speed | 3000 | rpm |
| Weight | 3.4 | kg |
Replaceable tips:
Tip dimensions:
| Tip | D1 [mm] | L1 [mm] | D2 [mm] | L2 [mm] | d [mm] |
|---|---|---|---|---|---|
| A | 15 | 30 | 28 | 61.5 | |
| B | 28 | 55.5 | |||
| C | 28 | 51.5 | |||
| D | 26 | 73 | |||
| E | 55 | 61.5 | 30 | ||
| F | 40 | 55 | 35 | ||
| G | 55 | 60 | 48 |
Equipment:
| Live center | 1 pc. |
| Insert | 7 pcs. |
| Ejector | 1 pc. |
If you still don't know which lathe center to choose, read guide on selecting canines.
