Universal rotating lathe center with interchangeable tips - Morse 5 (DM435)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$227.06
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$184.60
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_KLY_DM435
Description
Information:

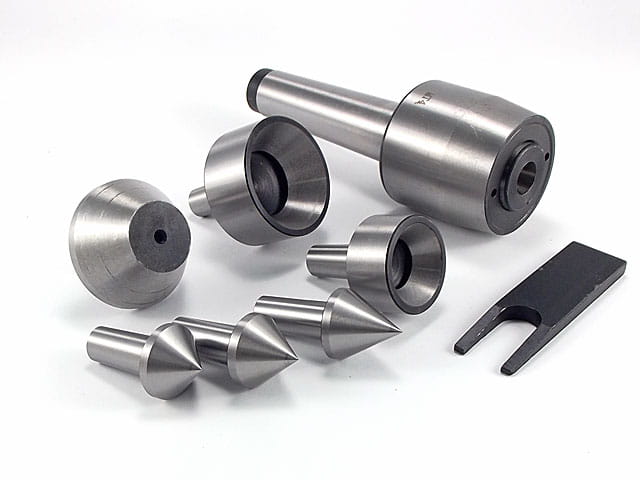

- Universal live turning center with replaceable inserts (7 pcs.).
- Increased versatility thanks to the design with a tapered socket.
- Used in the tailstock of lathes.
- Made of high-quality alloy steel.
- Working surface hardness 55 - 60 HRC.
- For general turning work, useful for piece production.

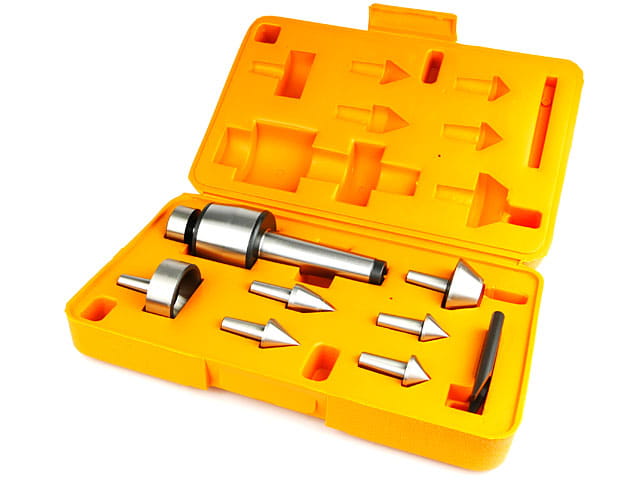

- Delivered in a case.
Specification:
| Parameter | Value |
|---|---|
| Morse shank | MS5 |
| D | 90 mm |
| L | 189 mm |
| Number of tips | 7 pcs. |
| Tolerance | 0.08 mm |
| Max. load | 550 kg |
| Max. speed | 2200 rpm |
| Weight | 7.9 kg |
Replaceable tips:
Tip dimensions:
| Tip | D1 [mm] | L1 [mm] | D2 [mm] | L2 [mm] | d [mm] |
|---|---|---|---|---|---|
| A | 20 | 40 | 36 | 80 | |
| B | 36 | 72.45 | |||
| C | 36 | 66.87 | |||
| D | 36 | 101 | |||
| E | 70 | 78 | 41 | ||
| F | 60 | 81 | 50 | ||
| G | 70 | 85 | 61 |
Equipment:
| Live center | 1 pc. |
| Insert | 7 pcs. |
| Ejector | 1 pc. |
If you still don't know which lathe center to choose, read guide on selecting canines.
