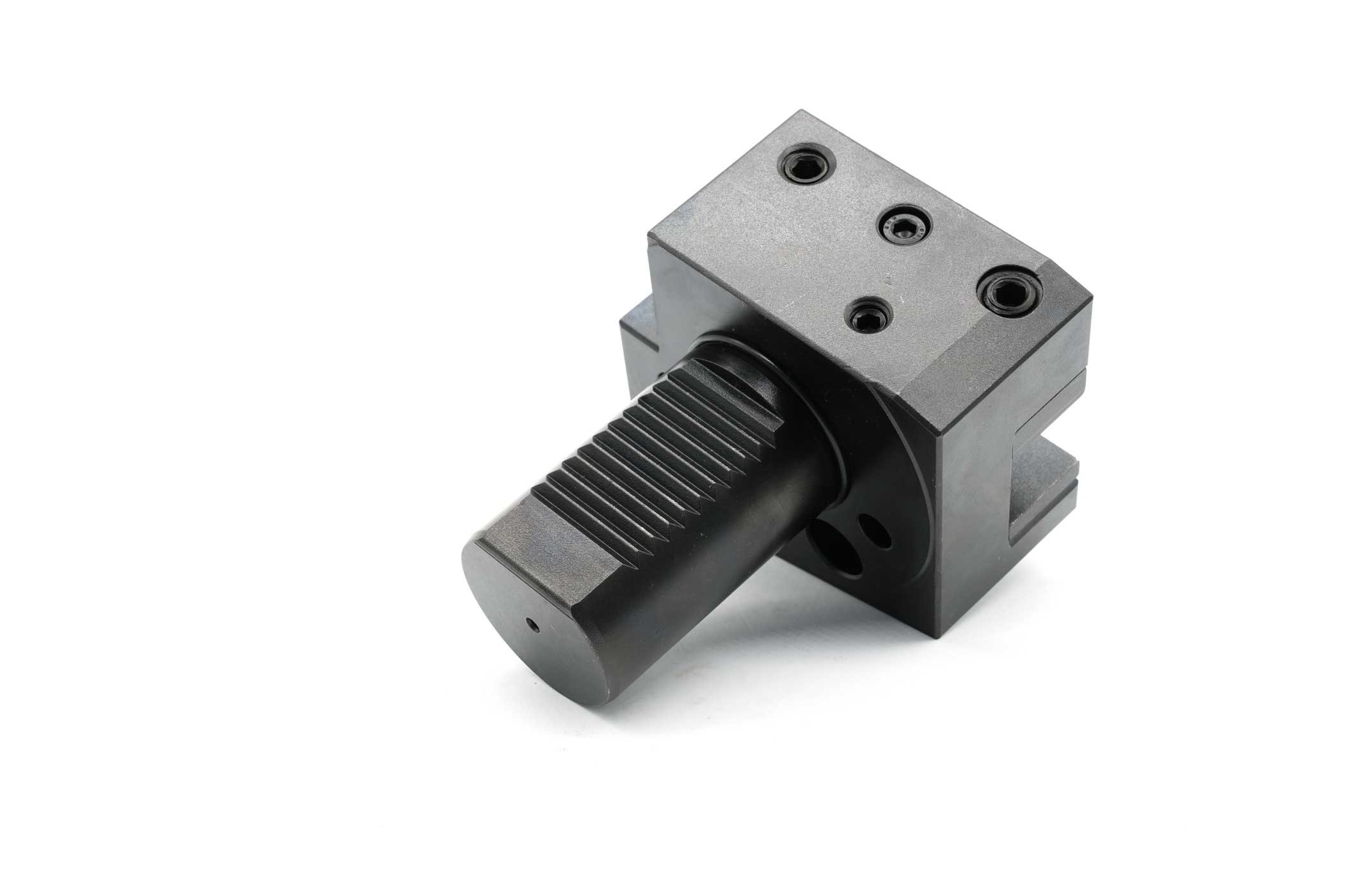

VDI 20 tool holder type B1 | right transverse | for 16 mm lathe tools - Darmet
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$96.59
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$78.53
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_308_B1.D20.H16
Description
Information:
- Tool holder for turning tools with a shank height of 16 mm, type B1 transverse, right, short.
- VDI shank with O-ring.
- Cooling system: external and internal.
- VDI tool holders comply with the German standard DIN 69880.
Technical specifications:
| Parameter | Value |
|---|---|
| d1 | 20 mm |
| b1 | 55 mm |
| b2 | 30 mm |
| b3 | 7 mm |
| h1 | 16 mm |
| h2 | 22 mm |
| h3 | 19 mm |
| h4 | 19 mm |
| h5 | 25 mm |
| h6 | 30 mm |
| h7 | 23 mm |
| l1 | 16 mm |
| l2 | 30 mm |
Did you know that...?
In the 1940s, John T. Parsons developed the control numerical control, which he implemented with the help of his aerospace engineer, Frank L. Stulen. This consisted of complex formulas used in the structural and aerodynamic design of helicopter rotor blades and other structures. Parsons' breakthroughs in computerized manufacturing led to the development of computer numerical control (CNC), which controls the automation of machine tools and tooling processes. Parsons also pioneered bonding in metal aircraft structures and subsequently built the first all-composite airplane. He produced giant fuel lines for the Saturn launch vehicle that sent American astronauts to the Moon, and also introduced computers to aircraft design, production, and real-time management reporting.
In the 1940s, John T. Parsons developed the control numerical control, which he implemented with the help of his aerospace engineer, Frank L. Stulen. This consisted of complex formulas used in the structural and aerodynamic design of helicopter rotor blades and other structures. Parsons' breakthroughs in computerized manufacturing led to the development of computer numerical control (CNC), which controls the automation of machine tools and tooling processes. Parsons also pioneered bonding in metal aircraft structures and subsequently built the first all-composite airplane. He produced giant fuel lines for the Saturn launch vehicle that sent American astronauts to the Moon, and also introduced computers to aircraft design, production, and real-time management reporting.
Installation of a VDI type B1 chuck in a CNC lathe tool turret
Technical information: VDI chuck (DIN69880)
