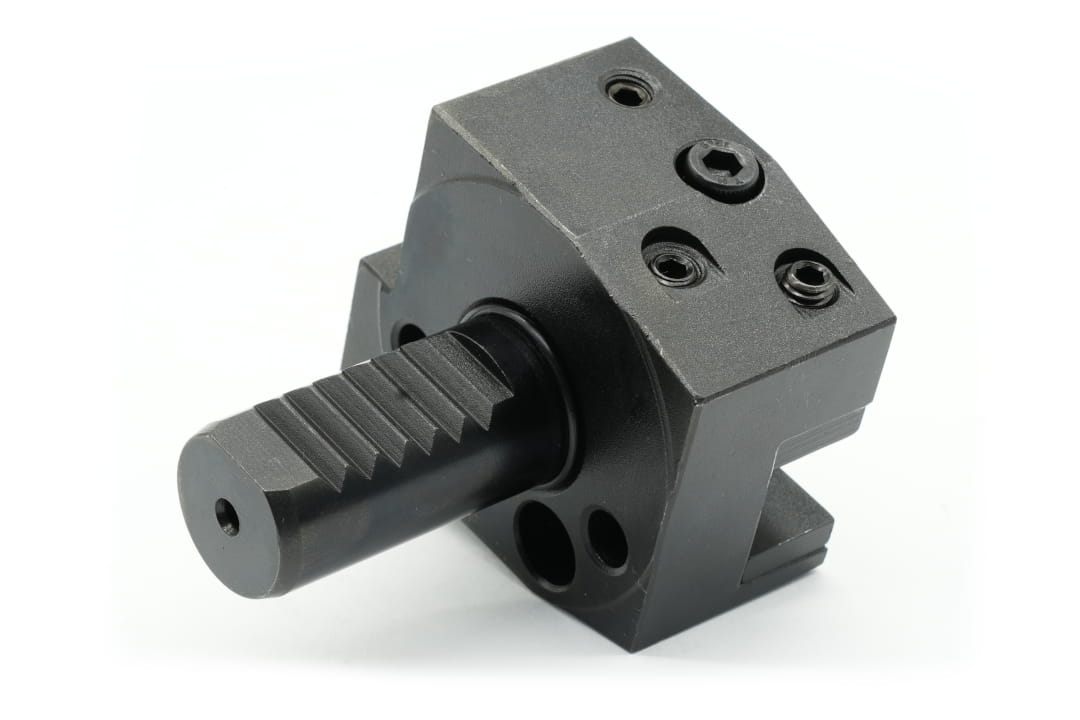

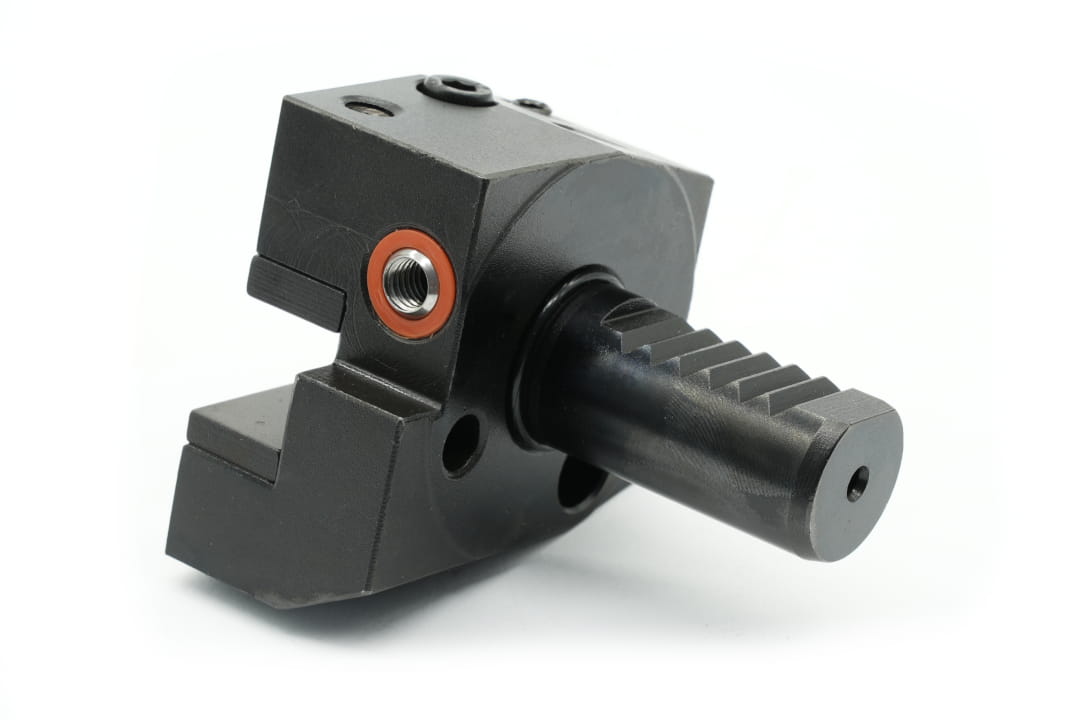

VDI 20 tool holder type B3 | reversed right transverse | for 16 mm lathe tools - DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$96.93
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$78.80
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_308_B3.D20.H16
Description
Properties and application:
- Tool holder for turning tools with a shank height of 16 mm, type B3 inverted transverse, right, short.
- VDI shank with O-ring.
- It is equipped with an external and internal cooling system.
- VDI tool holders comply with the German standard DIN 69880.
Technical data:
| Parameter | Value |
|---|---|
| d1 | 20 mm |
| b1 | 55 mm |
| b2 | 30 mm |
| b3 | 7 mm |
| h1 | 16 mm |
| h2 | 22 mm |
| h3 | 19 mm |
| h4 | 19 mm |
| h5 | 25 mm |
| h6 | 30 mm |
| h7 | 23 mm |
| l1 | 16 mm |
| l2 | 30 mm |
Installation of a B3 type VDI holder in the tool head of a CNC lathe
Technical information: VDI shank (DIN69880)
