VDI 30 tool holder type B1 | right transverse | for 20 mm lathe tools - DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$104.72
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$85.14
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_308_B1.D30.H20
Description
Properties and application:

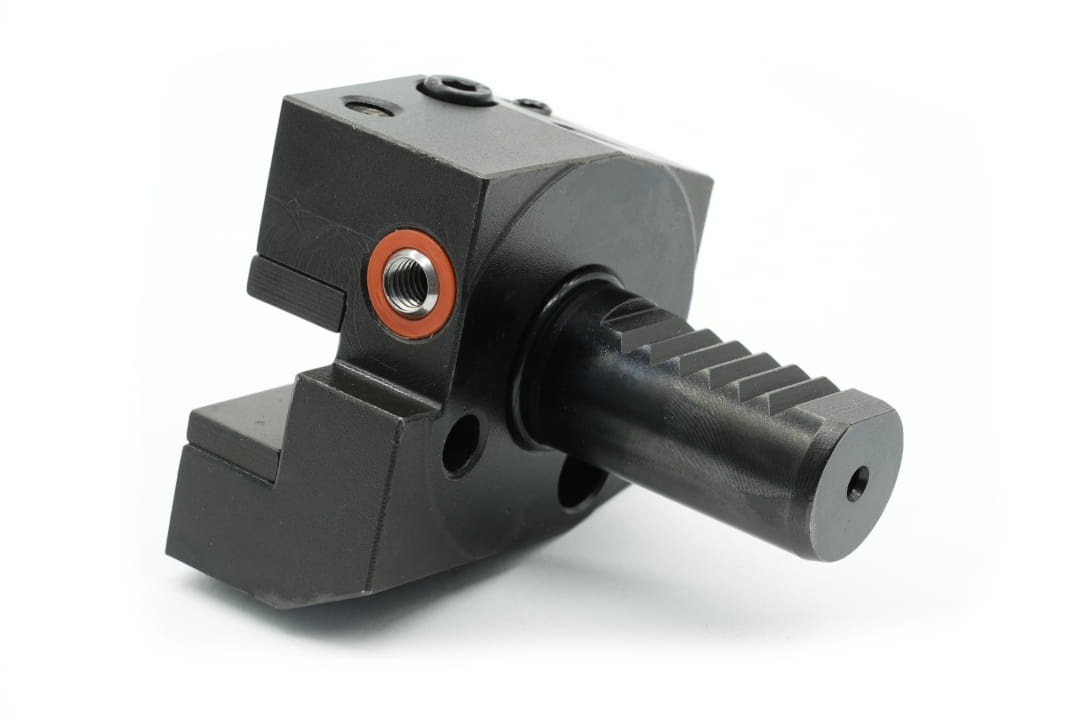

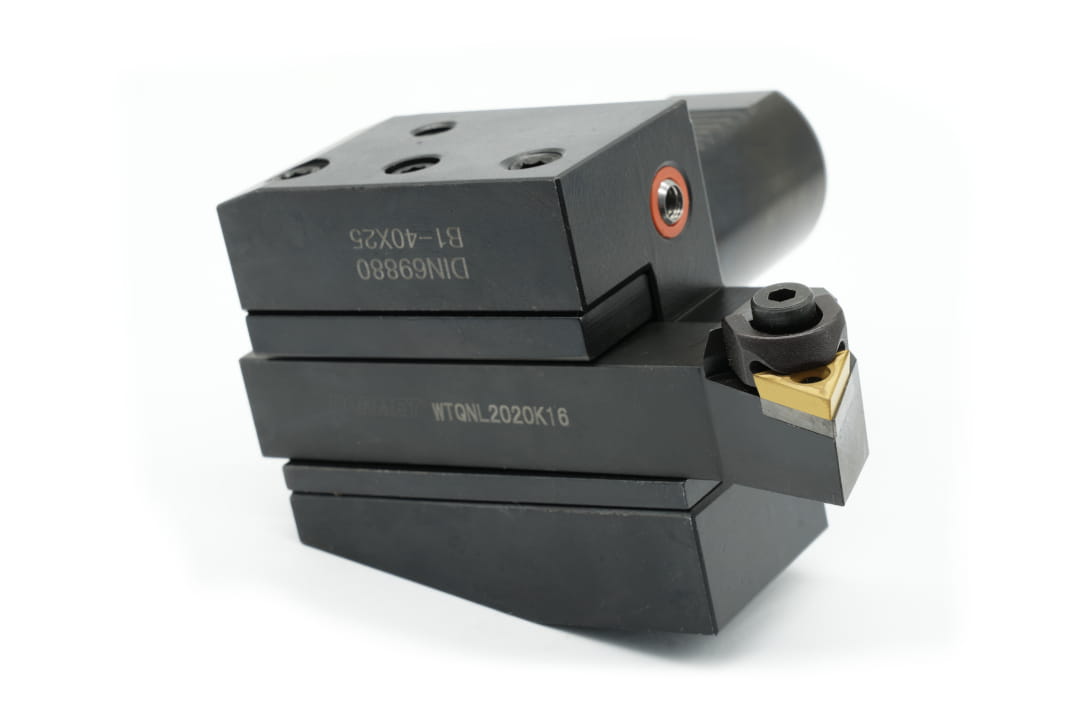

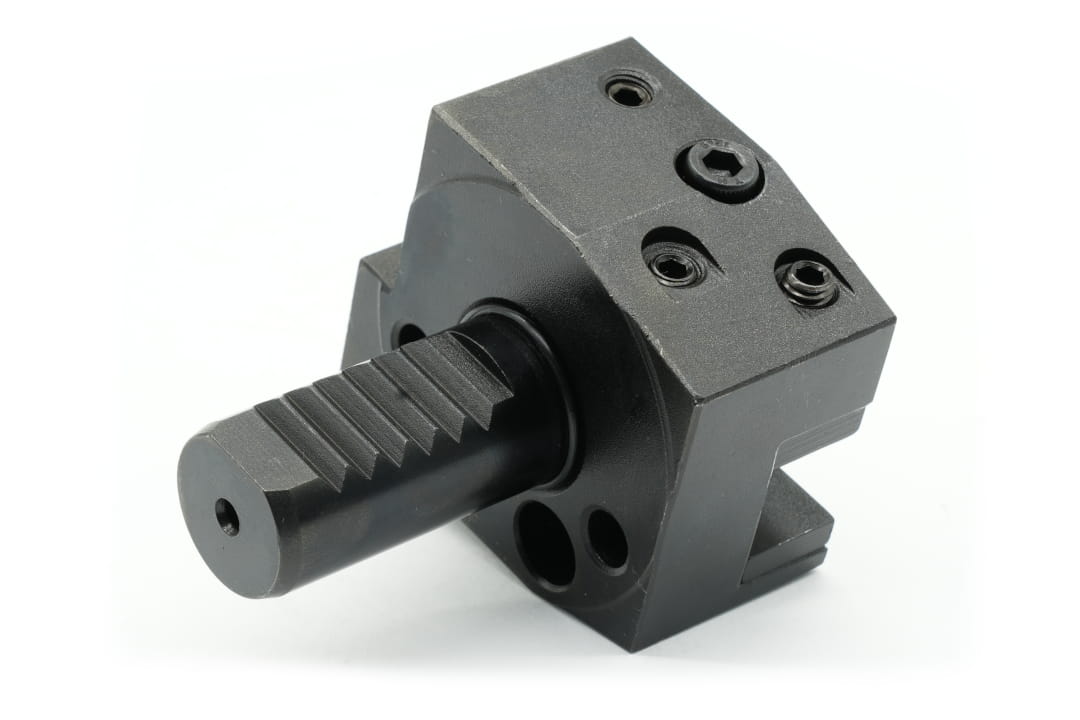

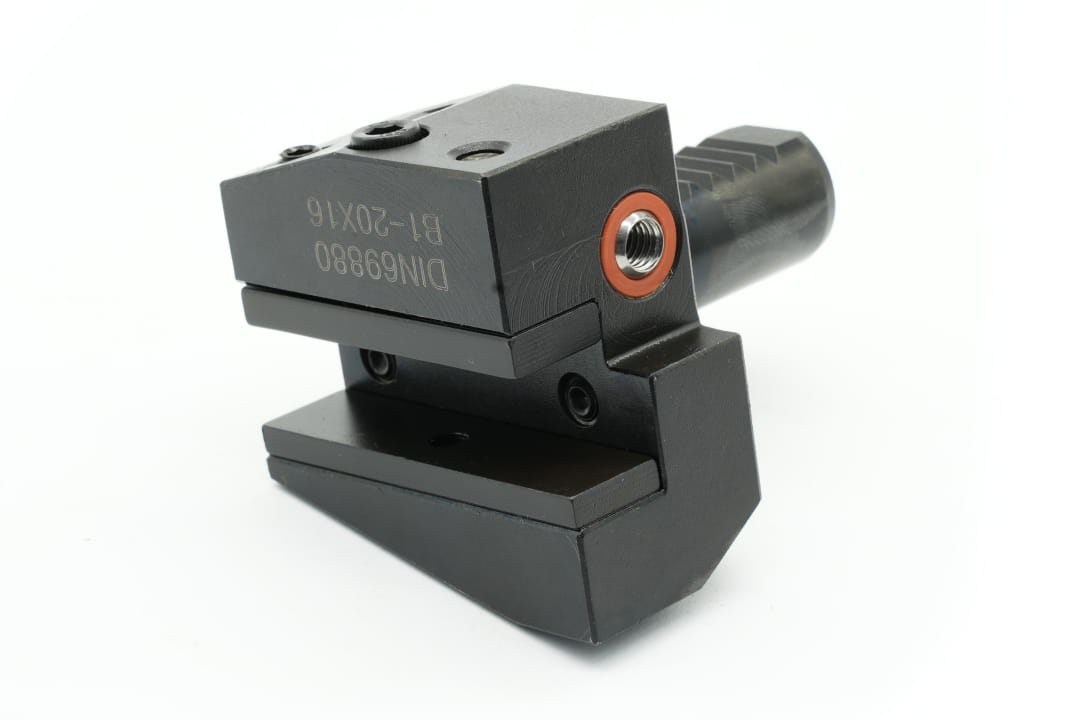

- Tool holder for turning tools with a 20 mm high shank, type B1, transverse, right, short.
- VDI shank with O-ring.
- It is equipped with an external and internal cooling system.
- VDI tool holders are made according to German standard DIN 69880.
Technical data:
| Parameter | Value |
|---|---|
| d1 | 30 mm |
| b1 | 70 mm |
| b2 | 35 mm |
| b3 | 10 mm |
| h1 | 20 mm |
| h2 | 29 mm |
| h3 | 26 mm |
| h4 | 22 mm |
| h5 | 28 mm |
| h6 | 38 mm |
| h7 | 30 mm |
| l1 | 22 mm |
| l2 | 40 mm |
Installation of a VDI type B1 holder in the tool head of a CNC lathe
Technical information: VDI shank (DIN69880)
