Description
Properties and applications:

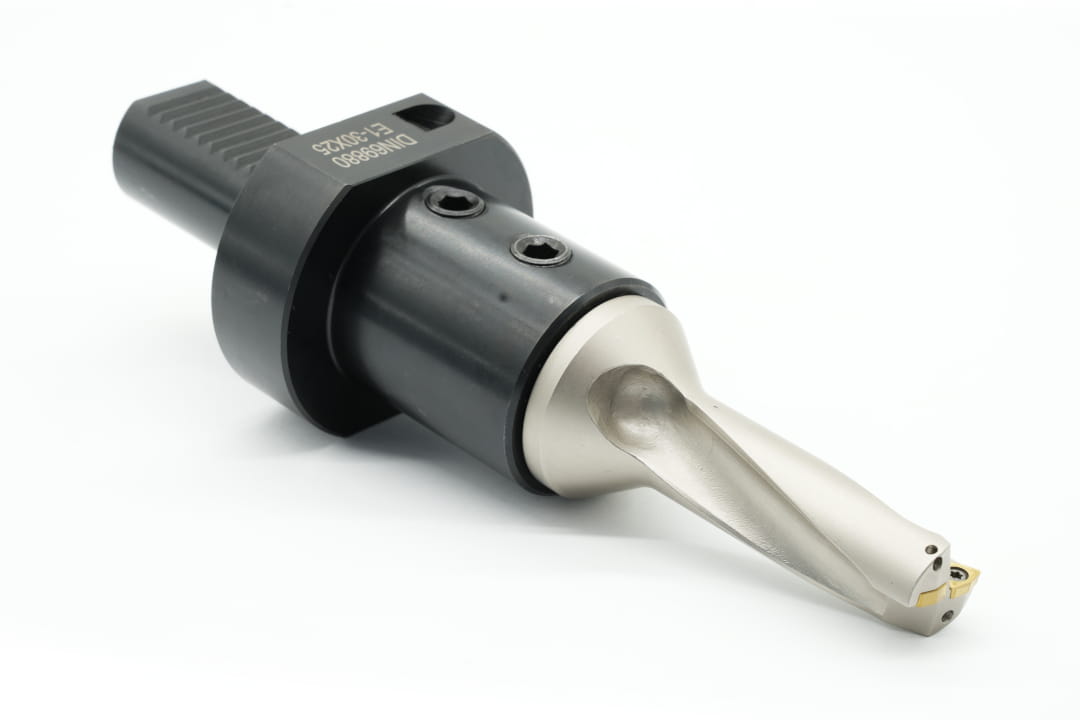

- VDI tool holder for tools with a 25 mm Weldon shank, e.g. indexable drills.
- Tool with a VDI shank (DIN69880).
- VDI shank with an O-ring.
- Cooling through the collar.
- VDI tool holders comply with the German DIN 69880 standard.

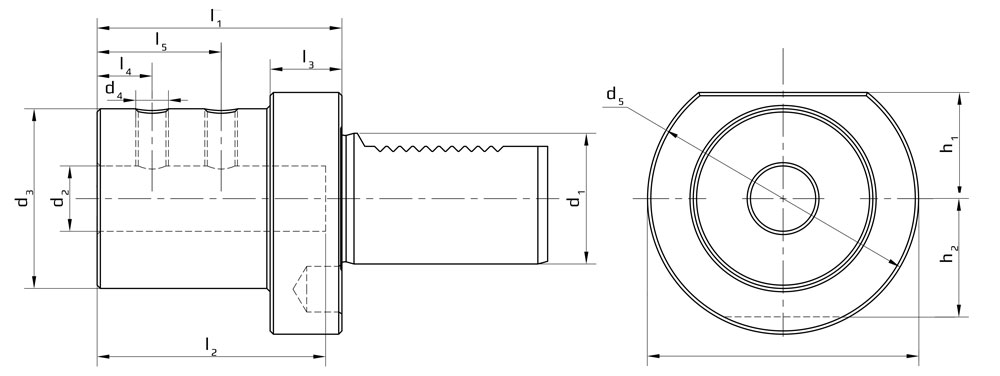

Technical data:
| Parameter | Value |
|---|---|
| d1 x d2 | 30 x 25 mm |
| d3 | 45 mm |
| d4 | M12x1 |
| d5 | 68 mm |
| h1 | 28 mm |
| h2 | 30 mm |
| l1 | 71 mm |
| l2 | 59 mm |
| l3 | 22 mm |
| l4 | 17 mm |
| l5 | 40 mm |
Technical information: VDI grip (DIN69880)
