VDI 40 Tool Holder, Right Transverse, Long B5 - VDI 40 - 25 - 44mm - B5.D40.H25 - APX (Type 1124P)
Availability:
wycofany z oferty
Gross price:
$134.15
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$109.07
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Description
Features and Applications:
- Tool holder for rectangular shank tools with a 25 mm shank height, e.g., 2525 indexable inserts.
- Internal or external coolant supply.
- Tool with VDI (DIN69880) holder.

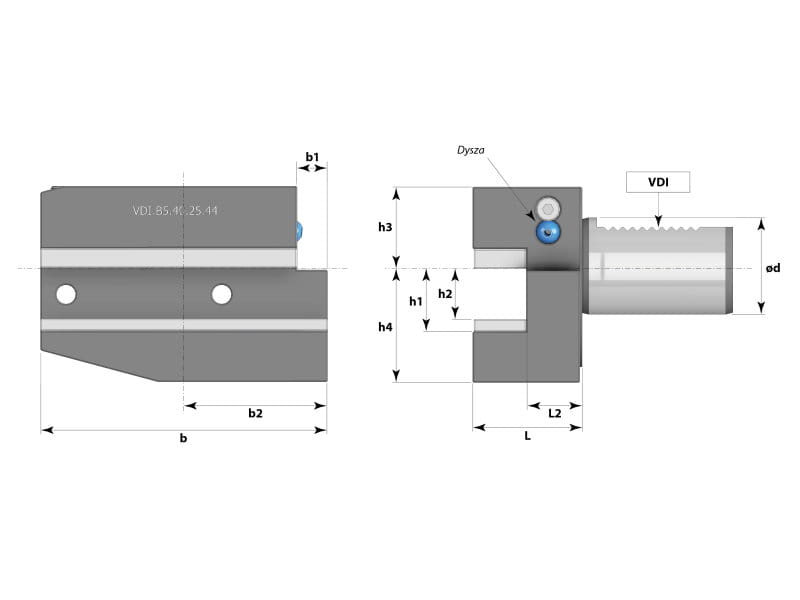

Technical data:
| Parameter | Value |
|---|---|
| VDI Cylinder Diameter (d) | 40 mm |
| Tool Clamping Height (h1) | 27,5 mm |
| Length (L) | 44 mm |
| Length (L2) | 22 mm |
| Width (b) | 119 mm |
| Notch (b1) | 12,5 mm |
| Width (b2) | 62 mm |
| Tool Clamping Height (h2) | 21 mm |
| Height (h3) | 31,5 mm |
| Height (h4) | 49,5 mm |
Technical Information: VDI Holder (DIN69880)..
