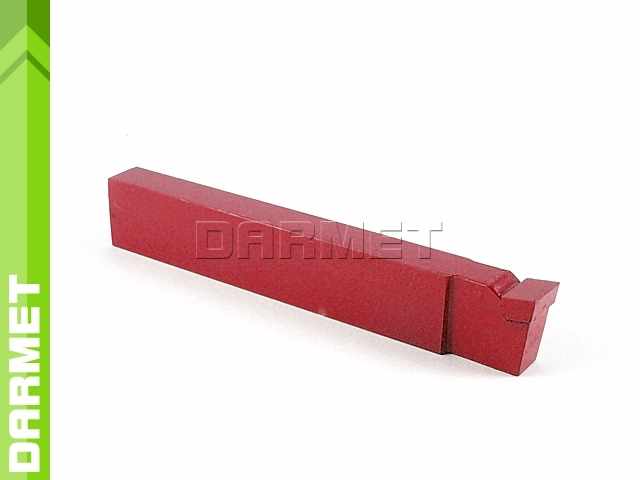

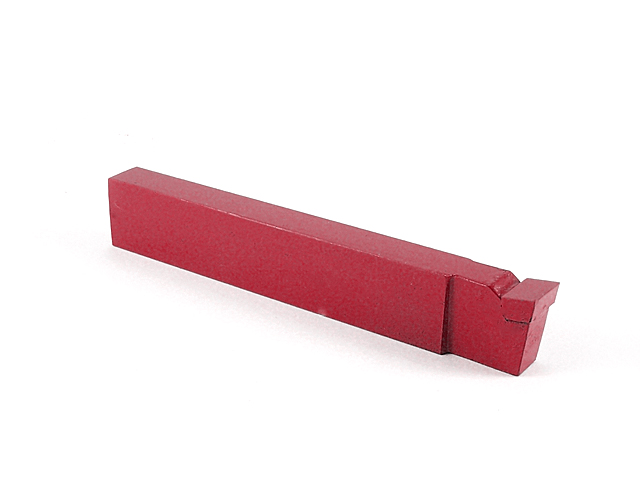

Wide lathe tool NNPd ISO4, size 1610 H10 (K10), for cast iron
Availability:
dostępny na zamówienie
Dispatched within:
3 dni
Gross price:
$7.04
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.72
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
NNPd-ISO4-1610-K10
Description
Values and application:
- Designed for individual work and small series
- Equipped with a ground H10 (K10) carbide cutting insert
- Material processed with H10 (K10) carbide inserts: cast iron with a hardness of approx. 220 HB, copper and its alloys, light alloys, plastics, wood
- Type of machining with H10 (K10) carbide inserts: turning, milling, planing, countersinking and reaming

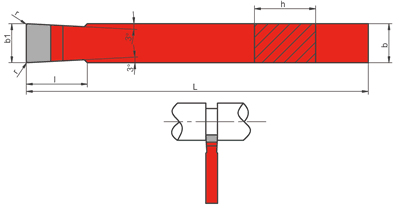

Technical data:
| Parameter | Value | Units. |
|
|---|---|---|---|
| h | 16 | mm | |
| b=b1 | 10 | mm | |
| L | 110 | mm | |
| l | 16 | mm | |
| r | 0.4 | mm | |
| Weight | 0.23 | kg |
| Lathe cutter |
ISO 243 ISO 514 |
PN-91 M-58352 |
DIN |
|---|---|---|---|
| Wide | ISO4 | NNPd | 4976 |
Cutting parameters, cemented carbide grades, applications and technical information can be found here
