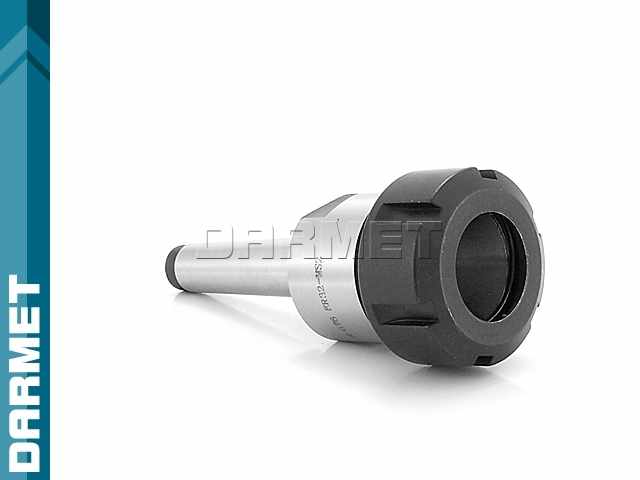

Collet chuck for ER32 collets with MS2 shank - DARMET 076

Availability: średnia ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $42.36

incl. 23% TAX, excl. shipping costs

Regular price:

42.36

The lowest price during 30 days prior to the reduction:

Net price: $34.44

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 15 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_076_ER32_MS2

Description

Information:

Holder for mounting ER16 collet chucks.
Morse taper shank with thread for extraction in conventional machines.
A properly seated collet is perfectly flush with the face of the ER nut, only then should we tighten the whole thing with a special hook wrench or multipoint.
Additional recess for a flat wrench for counter-tightening and unscrewing the tool.
Standard collets have a round hole, which makes the holder universal, as we can clamp all shank tools with a cylindrical or cylindrical shank with a Weldon flat, i.e. drills, or milling cutters.
Through-through tool for internal cooling.

Specification:

Collet chuck for ER collets with Morse MK shank (DM-076)

Parameter	Value
K (Morse)	MK2
Collet type	ER32
Thread	M10
D	50 mm
Weight	0.5 kg

Technical information: Morse shank (DIN228) by DARMET

How to properly mount a collet in a nut ER?

Instructions for correct cage assembly in an ER collet.

The collet should be mounted at an angle, hooking the cage channel onto the eccentric or cylindrical band of the nut (A), feeling a slight resistance, press until a characteristic "click" is heard (B). Disassembly is equally simple, tilt the cage to release it from the band in the nut (C).

Video presentation of the correct assembly of the entire assembly in an ER collet.
