Collet for taps M3 | ER16 - 3.5 x 2.7 mm - DARMET

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $20.00

incl. 23% TAX, excl. shipping costs

Regular price:

20.00

The lowest price during 30 days prior to the reduction:

Net price: $16.26

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 7 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_710_ER16_03,5X2,7

Information:

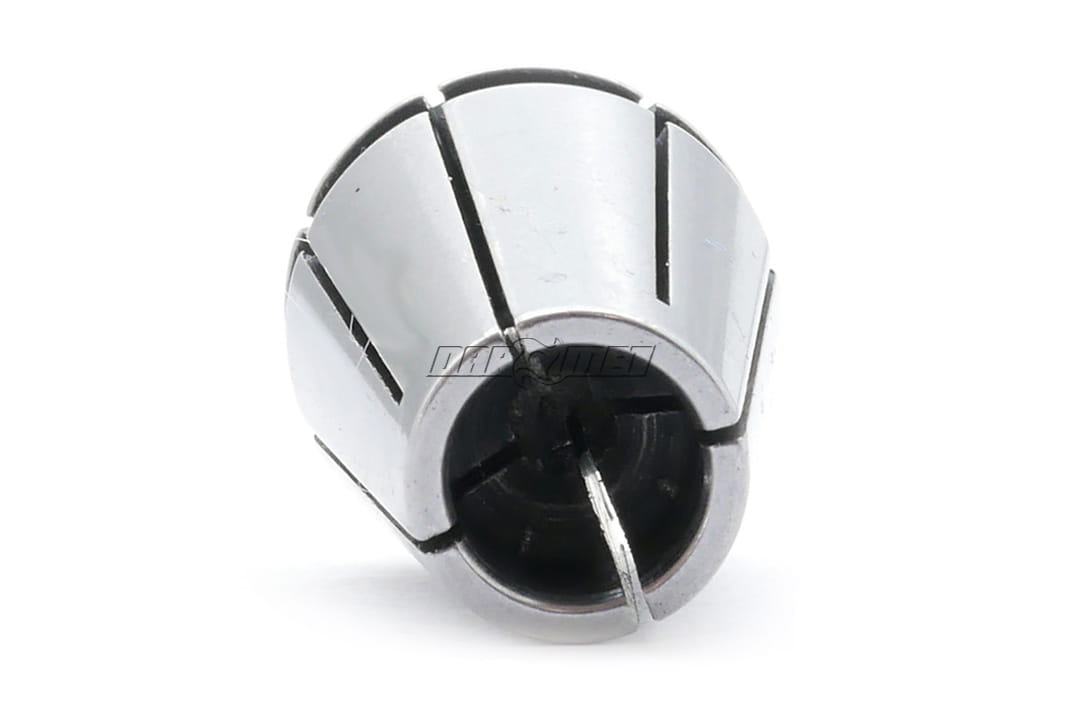

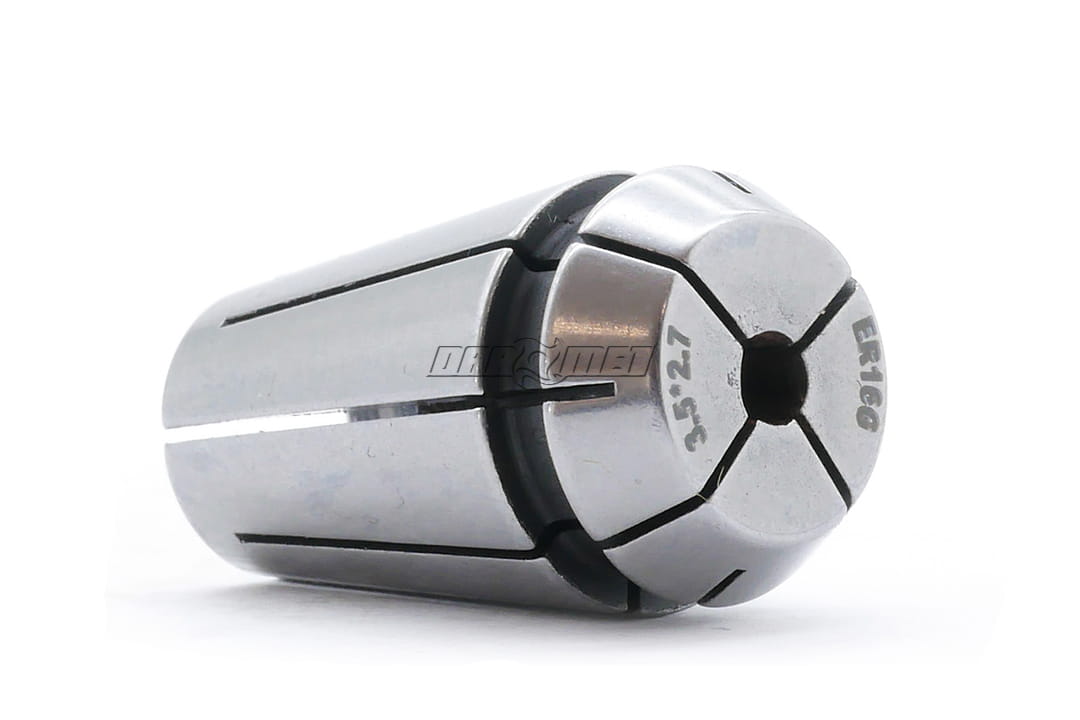

ER16 collet - 3.5x2.7

Installation of the collet

in the holder nut

Collet correctly installed

Disassembly of the collet

ER	d₁ [mm]	Clamping range [mm]	d₂ [mm]	d₃ [mm]	a_AT3	l₁ [mm]	l_{13 max} [mm]

ER11	1÷7	0.5	11	11.5	8°	18.0	6.6
ER16	1÷10	0.5÷1	16	17.0	8°	27.5	10.6
ER20	1÷13	0.5÷1	20	21.0	8°	31.5	11.5
ER25	1÷16	0.5÷1	25	26.0	8°	34.0	12
ER32	1÷20	0.5÷1	32	33.0	8°	40.0	13
ER40	1÷30	1	40	41.0	8°	46.0	15

To correctly mount the ER collet in the holder:

Insert the collet at an angle into the nut
Hook the collet's groove into the eccentric or cylindrical projection of the nut (fig. A)
Press the collet into the nut (fig. B)
Screw the nut with the pressed collet onto the holder so that the tool being processed can be clamped

Shipping country:

Intended for holders used with ER 16 collet chucks
