Collet for taps M9 | ER25 - 9.0 x 7.0 mm - DARMET

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $21.35

incl. 23% TAX, excl. shipping costs

Regular price:

21.35

The lowest price during 30 days prior to the reduction:

Net price: $17.36

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 7 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_710_ER25_09,0X7,0

Information:

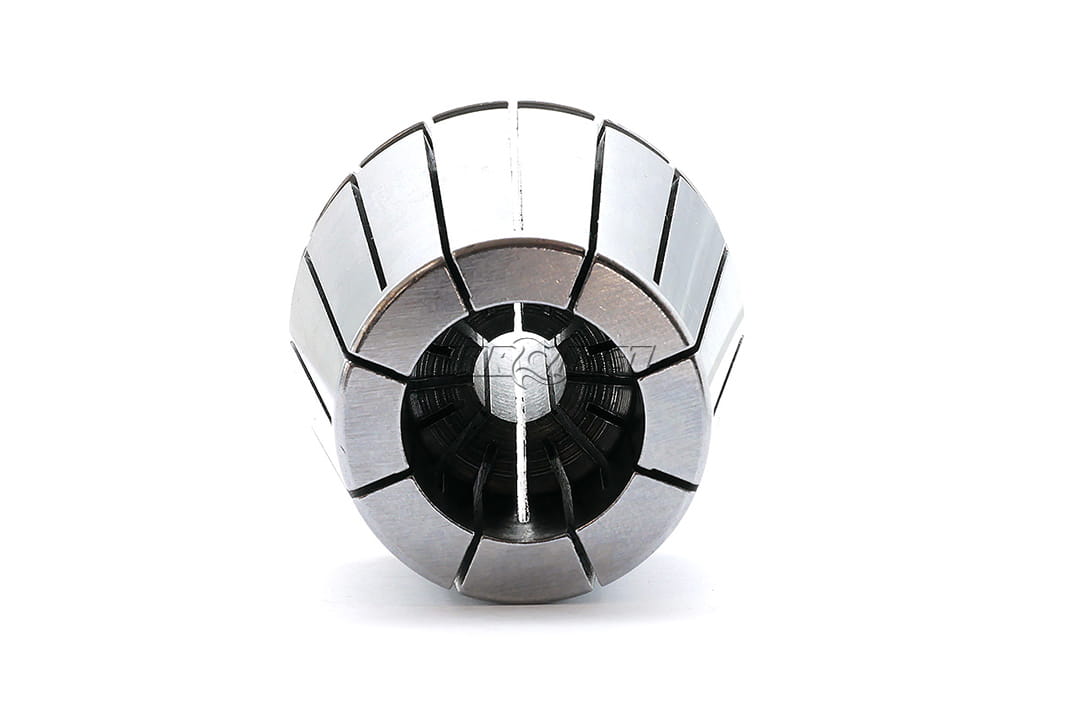

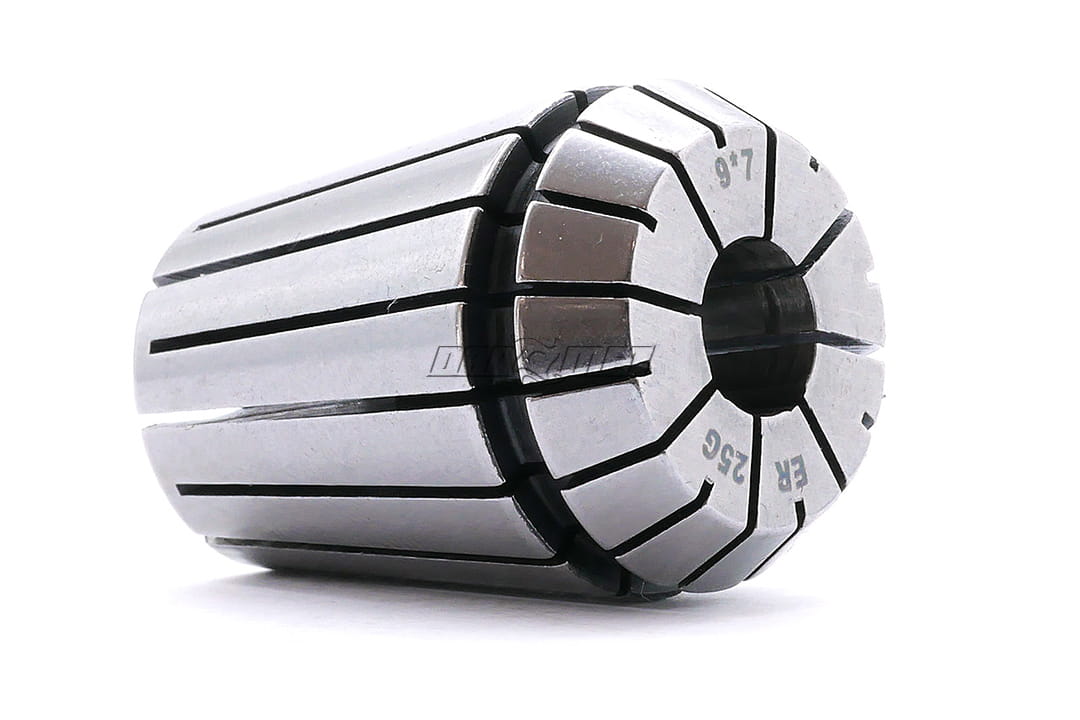

ER25 collet designed for M9 machine taps.
For the proper functioning of the tap it is necessary to use compensating collet ER25.
There is also a version sealed collets for work with using coolant inside the tools.

ER16 collet - 3.5x2.7

Installation of the collet

in the holder nut

Collet correctly installed

Disassembly of the collet

ER	d₁ [mm]	Clamping range [mm]	d₂ [mm]	d₃ [mm]	a_AT3	l₁ [mm]	l_{13 max} [mm]

ER11	1÷7	0.5	11	11.5	8°	18.0	6.6
ER16	1÷10	0.5÷1	16	17.0	8°	27.5	10.6
ER20	1÷13	0.5÷1	20	21.0	8°	31.5	11.5
ER25	1÷16	0.5÷1	25	26.0	8°	34.0	12
ER32	1÷20	0.5÷1	32	33.0	8°	40.0	13
ER40	1÷30	1	40	41.0	8°	46.0	15

To correctly mount the ER collet in the holder:

Insert the collet at an angle to the nut
Hook the collet's channel onto the eccentric or cylindrical protrusion of the nut (Fig. A)
Press the collet into the nut (Fig. B)
The nut with the sleeve pressed in, screw it to the holder so that the tool being processed can be clamped.
