Morse collet chuck with ER16 collets | MS3 | 8 pieces | - DARMET 076
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Holder for mounting ER16 collet chucks.
- Morse taper shank with thread for extraction in conventional machines.
- A properly seated collet is perfectly flush with the face of the ER nut, only then should we tighten the whole thing with a special hook wrench or multipoint.
- Additional recess for a flat wrench for counter-tightening and unscrewing the tool.
- Standard collets have a round hole, which makes the holder universal, as we can clamp all shank tools with a cylindrical or cylindrical shank with a Weldon flat, i.e. drills, or milling cutters.
- Through-through tool for internal cooling.
- The set includes 8 cages: 2, 3, 4, 5, 6, 7, 8, 10 mm.
Specification:
| Parameter | Value |
|---|---|
| K (Morse) | MK3 |
| Sleeve type | ER16 |
| Number of sleeves | 8 |
| Mounting diameter | 1.5 - 10 mm |
| Thread (M) | M12 |
| Weight | 1.05 kg |
*Note: Sets are shipped randomly in a plastic yellow or black case.
Technical information: Morse shank (DIN228) by DARMET

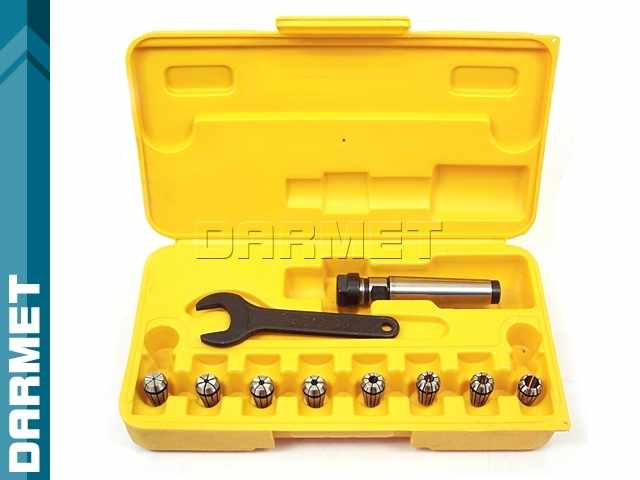

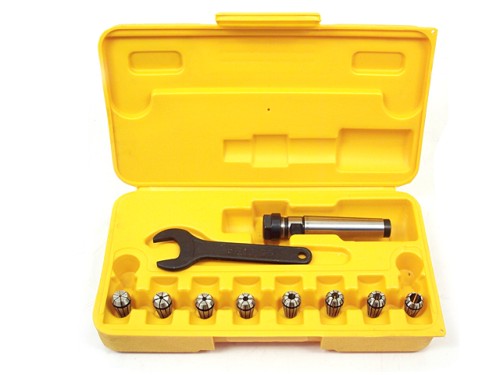

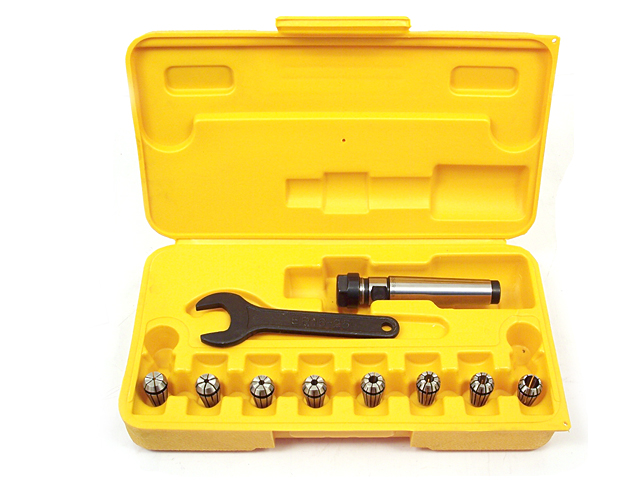

Equipment:
| Collet | 1 pc. |
| Nut | 1 pc. |
| Collet | 8 pcs. |
| Wrench | 1 pc. |
Technical information: Morse shank (DIN228) by DARMET
How to correctly mount the collet in the ER nut?
The collet should be mounted at an angle, hooking the cage channel onto the eccentric or cylindrical clamp of the nut (A). Feeling a slight resistance, press it until you hear a characteristic "click" (B). Disassembly is equally simple; tilt the cage to release it from the clamp in the nut (C).
Video presentation of the correct assembly of the entire assembly in the ER collet.
Safety
Related products
ER16 collet sleeve - 4 mm - DARMET
Net price: $8.54
ER16 collet sleeve - 5 mm - DARMET
Net price: $8.54

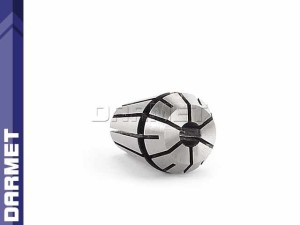

ER16 collet sleeve - 6 mm - DARMET
