Morse collet chuck with ER25 collets | MS3 | 10 pieces | - DARMET 076

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $148.78

incl. 23% TAX, excl. shipping costs

Regular price:

148.78

The lowest price during 30 days prior to the reduction:

Net price: $120.96

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 53 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_076_ER25X10_MS3

Description

Information:

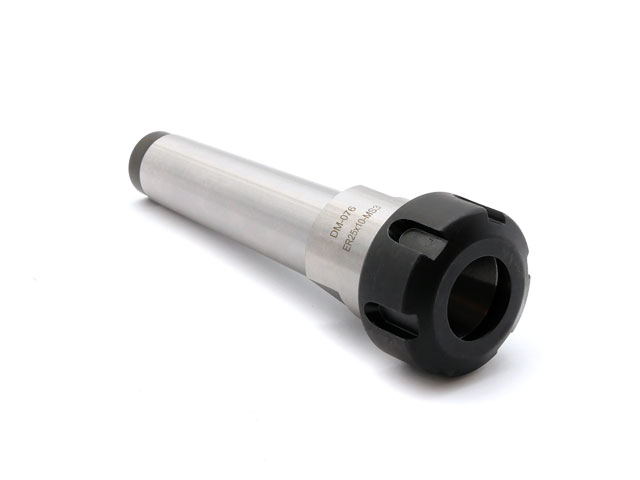

Holder for mounting ER25 collet chucks.
Morse taper shank with thread for extraction in conventional machines.

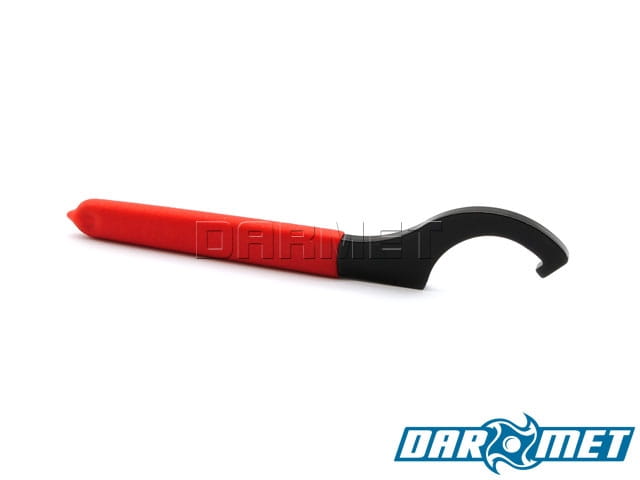

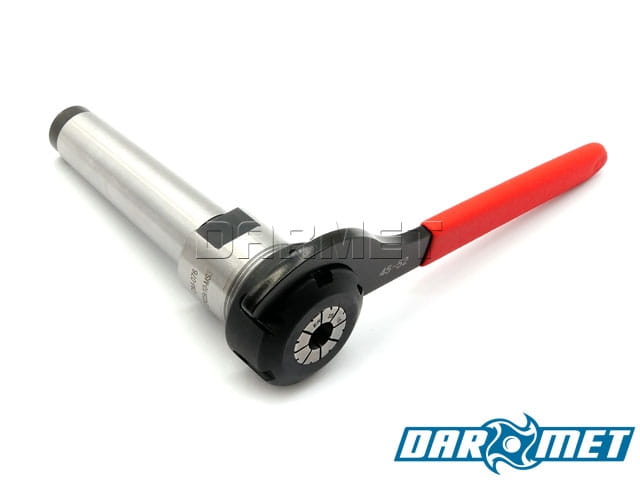

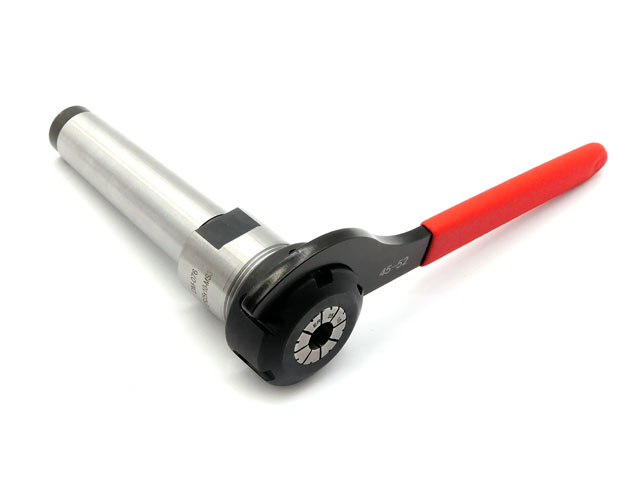

A properly seated collet is perfectly flush with the face of the ER nut, only then should we tighten the whole thing with a special hook wrench or multipoint.
Additional recess for a flat wrench for counter-tightening and unscrewing the tool.
Standard collets have a round hole, which makes the holder universal, as we can clamp all shank tools with a cylindrical or cylindrical shank with a Weldon flat, i.e. drills, or milling cutters.
Through-through tool for internal cooling.

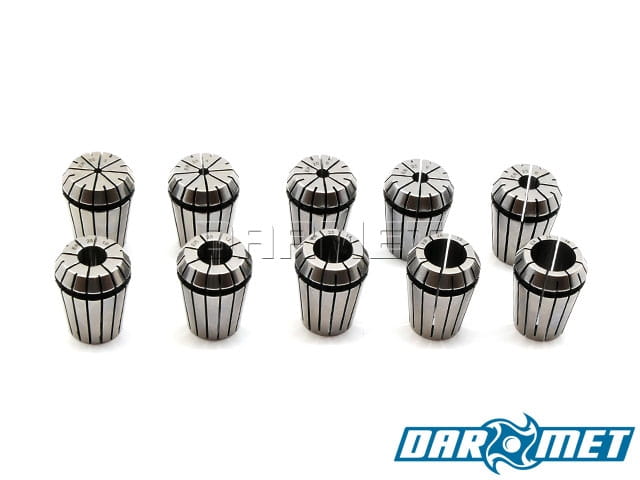

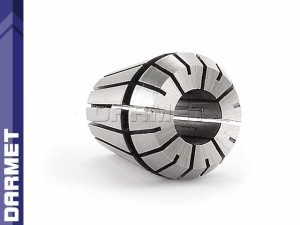

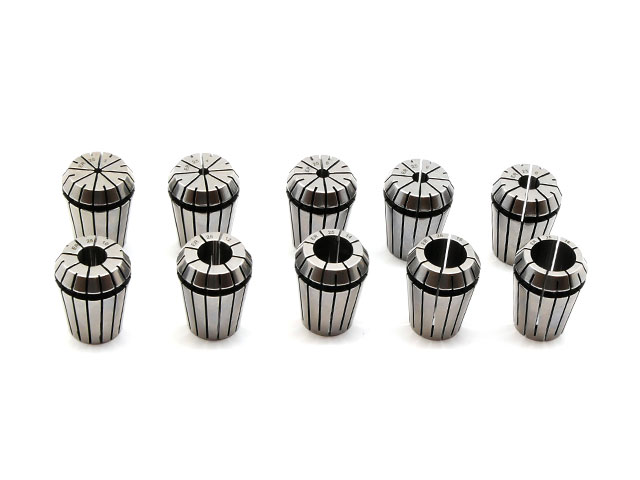

The set includes 10 cages: 3, 4, 5, 6, 8, 10, 12, 14, 15, 16 mm.

Specification:

Collet chuck for ER collets with Morse MK shank (DM-076)

Parameter	Value
K (Morse)	MS3
Sleeve type	ER25
Number of sleeves	10
Clamping range	2 - 16 mm
Thread (M)	M12
Weight	1.4 kg

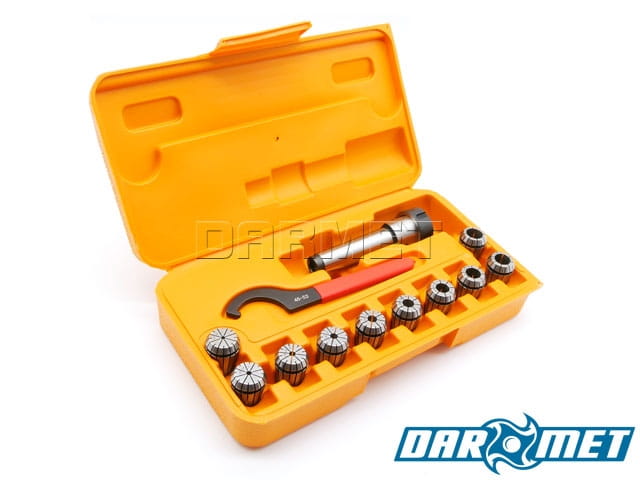

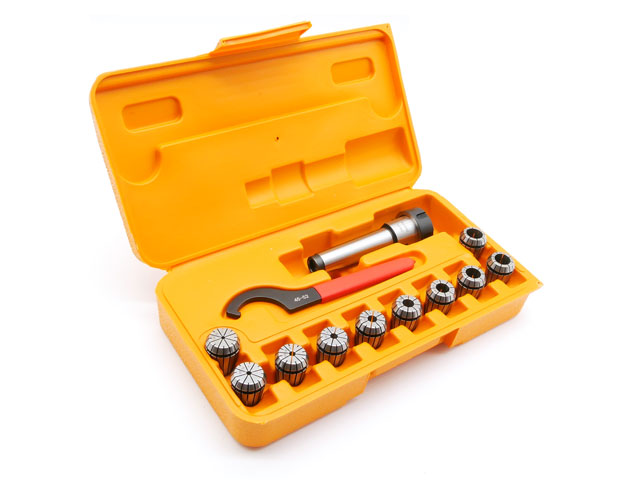

*Note: Sets are shipped randomly in yellow or black plastic case.

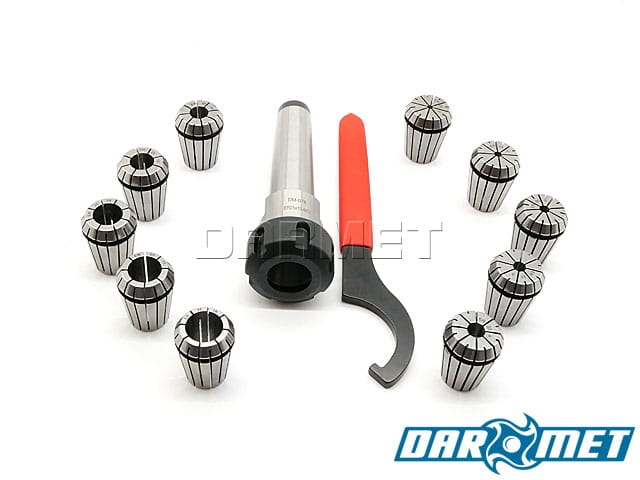

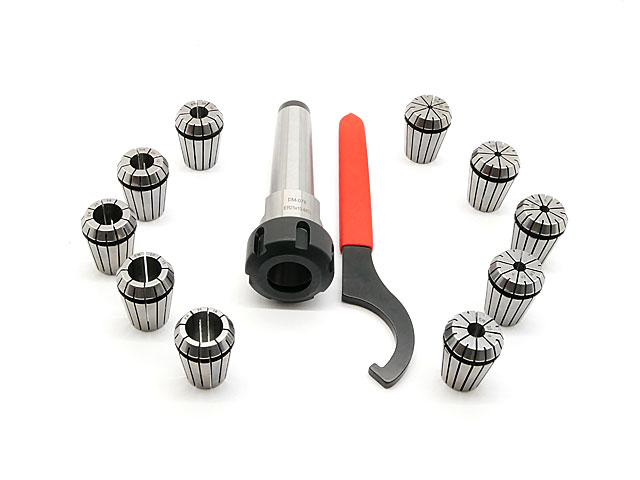

Equipment:

Collet	1 pc.
Nut	1 pc.
Collet	10 pcs.
Wrench	1 pc.

Technical information: Morse shank (DIN228) by DARMET

How to correctly mount the collet in the ER nut?

Instructions for correct installation of the cage in the ER clamping nut.

The collet should be mounted at an angle by hooking the cage channel onto the eccentric or cylindrical band of the nut (A), feeling a slight resistance, press it until you hear a characteristic "click" (B). Disassembly is just as simple, tilt the cage to release it from the clamp in the nut (C).

Video presentation of the correct assembly of the entire assembly in the ER collet.
